Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
01/2017
187

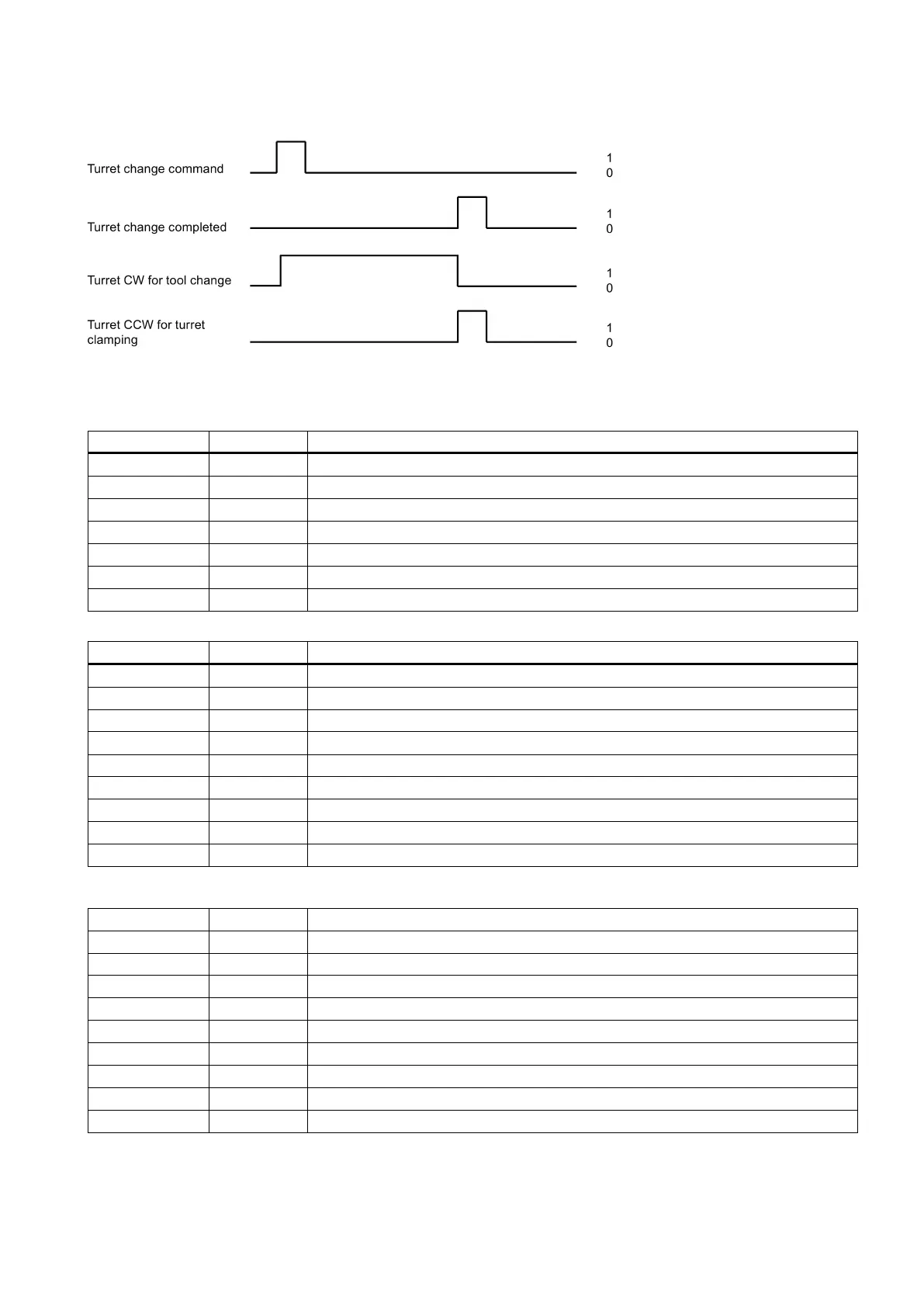

Timing diagram
Local variable definition
Inputs
Name
Type
Description
Tmax
WORD
Number of tool on the turret, only 4, 6 are permitted
C_time
WORD
Turret clamping delay time (unit: 0.1 s)
M_time
WORD
Monitor time for searching for a tool (unit: 0.1s)
T_polar BOOL Tool position signal: NC/NO
T_key
BOOL
Manual tool change key
T_01 to T_06
BOOL
Tool position sensor (low active)
OVload
BOOL
Turret motor overload (NC)
Outputs
Name
Type
Description
T_cw
BOOL
Turret CW for tool change
T_ccw
BOOL
Turret CCW for turret clamping
T_LED
BOOL
Turret change status display
ERR1
BOOL
Error1: no turret position signal available
ERR2
BOOL
Error2: programmed tool exceeds turret range
ERR3
BOOL
Error3: tool searching time monitor time out
ERR4
BOOL
Error4: turret overload
ERR5
BOOL
Error5: max tool number setting error
ERR6
BOOL
Reserved
Assigned global variables
T_cw_m
M156.0
Position marking for turret CW rotation
T_ccw_m
M156.1
Position marking for turret CCW rotation
CcwDelay
M156.2
Turret CCW rotation delay
K_active
M156.3
Manual key active
Tpos_C
M156.4
Turret position changed
Tp_eq_Tc
M156.5
Programmed tool number equal to the current tool number
Tp_eq_0
M156.6
Programmed tool number equal to zero
T_P_INDX
MD160
Monitoring the tool change buffer zone in JOG mode
T_CHL
M168.4
Operating mode locked
Tm1_FindT
T15
Monitoring timer for tool searching
