Components in the SIMOTICS S-1FL6 motor package
Component
Illustration
Shaft height (mm)
Stall torque (Nm)
Article number
1)
SIMOTICS S-1FL6
motor
45
1.9
1FL6042-1AF61-0❑❑1
3.5
1FL6044-1AF61-0❑❑1
65
4
1FL6061-1AC61-0❑❑1
6
1FL6062-1AC61-0❑❑1
8
1FL6064-1AC61-0❑❑1
11
1FL6066-1AC61-0❑❑1
15
1FL6067-1AC61-0❑❑1
90
15
1FL6090-1AC61-0❑❑1
22
1FL6092-1AC61-0❑❑1
30
1FL6094-1AC61-0❑❑1
40
1FL6096-1AC61-0❑❑1
User documentation
SIMOTICS S-1FL6 Servo Motors Installation Guide
1)
For more information about article numbers, see motor article number explanation described later in this section.

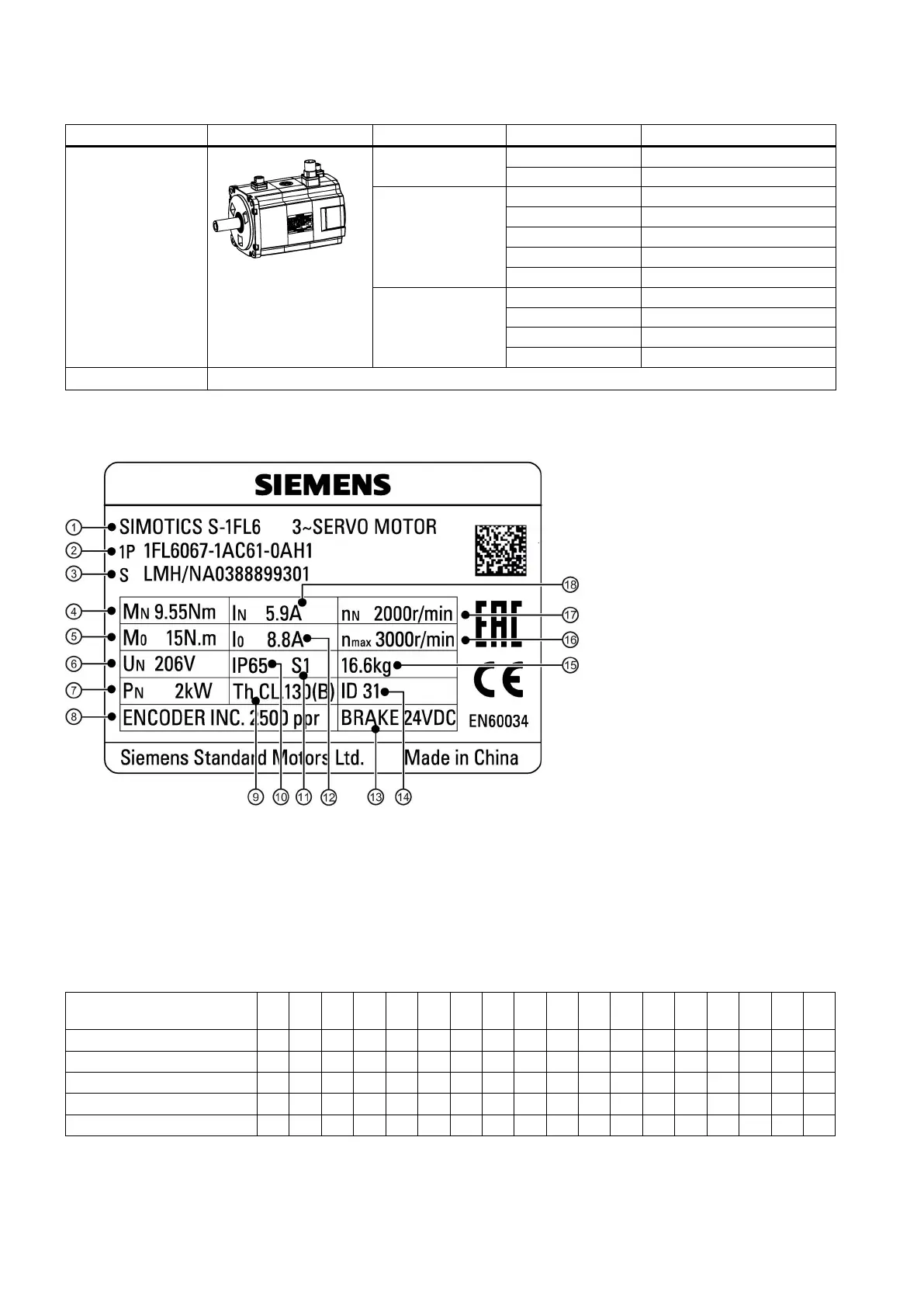

SIMOTICS S-1FL6 motor rating plate
①
Motor type
⑦
Rated power
⑬
Holding brake
②
Article number
⑧
Encoder type and resolution
⑭
Motor ID
③
Serial number
⑨
Thermal class
⑮
Weight
④
Rated torque
⑩
Degree of protection
⑯
Maximum speed
⑤
Stall torque
⑪
Motor operating mode
⑰
Rated speed
⑥
R
ated voltage
⑫
Stall current
⑱
Rated current
Explanation of SIMOTICS S-1FL6 feed motor article numbers
Data position of the article
number
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Article number
1
F
L
6
❑
❑
❑
-
●
●
❑
●
●
-
●
❑
❑
●
Shaft height
45 mm
0
4
65 mm
0
6
90 mm
0
9
