Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
24 01/2017
SINAMICS V70 spindle servo system

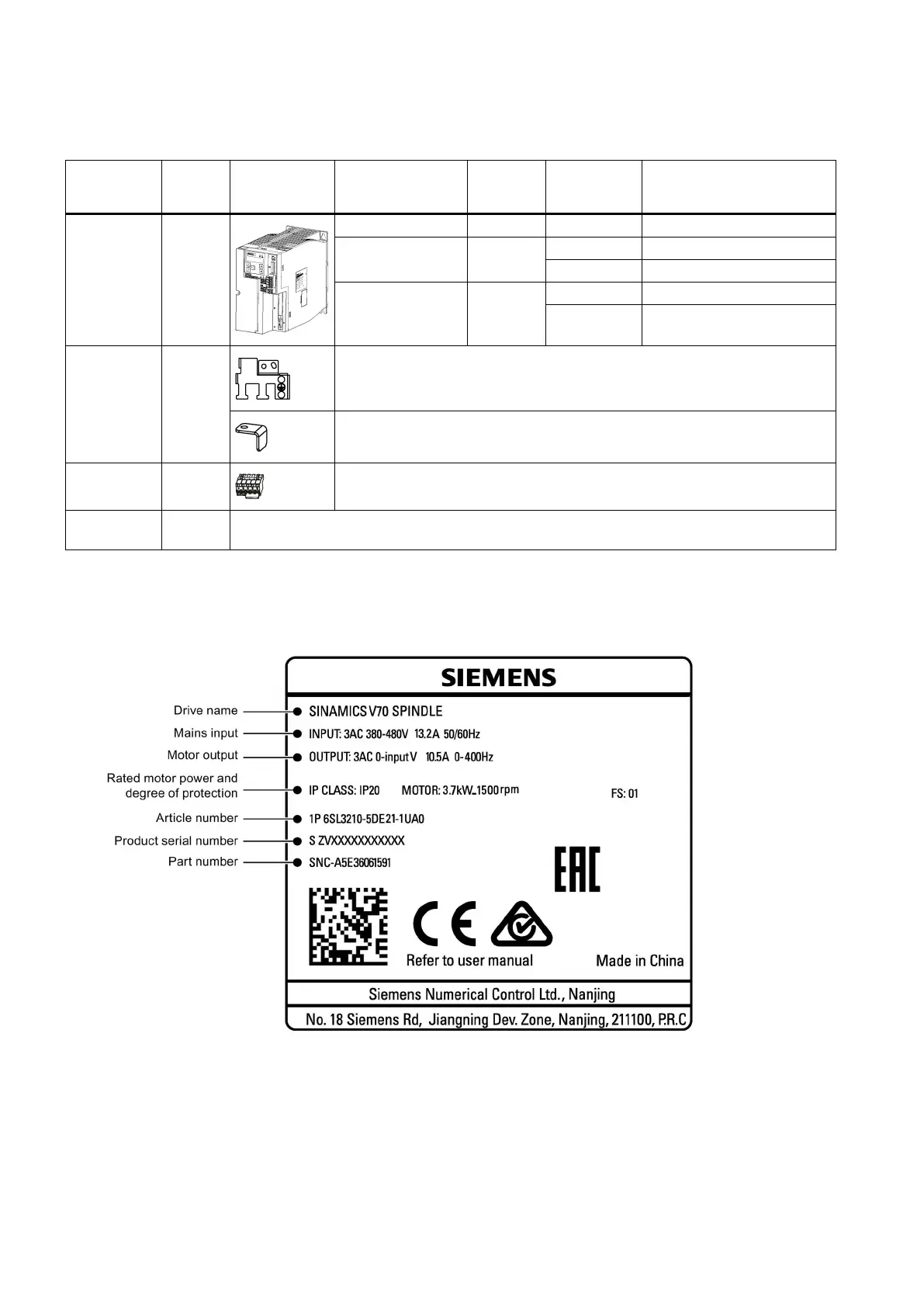

Components in the SINAMICS V70 spindle drive package
Component
Quantity
(pieces)
Illustration
Outline dimension
(Width × Height ×
Depth, mm)
Frame
size
1)
Rated output
current (A)
Article number
SINAMICS
V70 spindle
drive
1
100 × 180 × 220
FSB
10.5
6SL3210-5DE21-1UA0
140 × 260 × 240 FSC 12.9 6SL3210-5DE21-3UA0
19.6
6SL3210-5DE22-0UA0
190 × 350 × 185 FSD
29.8
6SL3210-5DE23-0UA0
37.6 6SL3210-5DE24-0UA0
Shielding
plate
(FSB/FSC
only
2)
)
2 For all shielded cables of the drive
For the line supply cable of the drive
Connector 1
STO/24 V power supply connector
User docu-
mentation
1 Safety Instructions
1)
For more information about the different frame sizes, see Section "Drill patterns and outline dimensions (Page 62)".
2)
The shielding plate for FSD is available as an option only.
