Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
268 01/2017

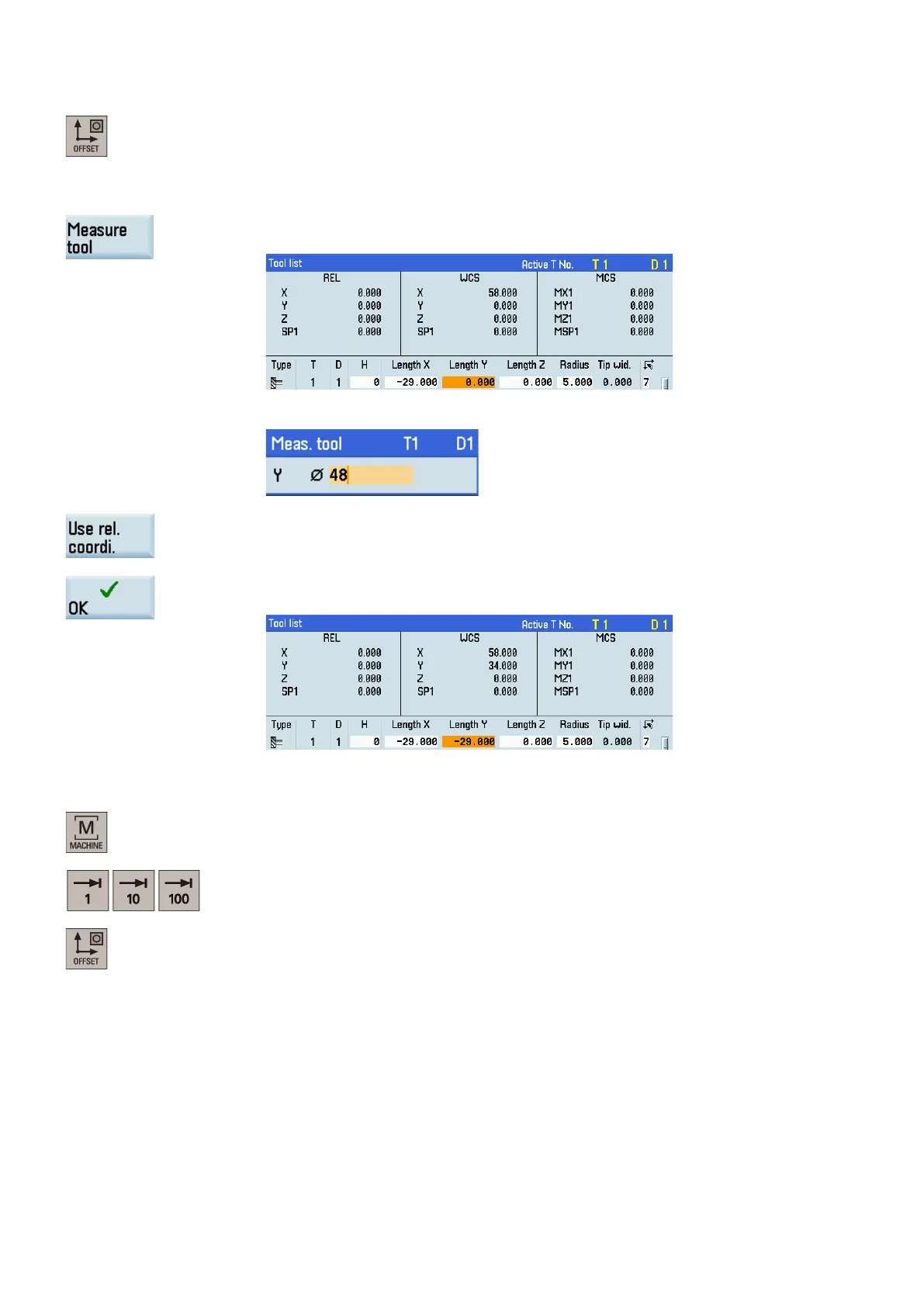

10.
Select the offset
operating area.
11.
Press the alphabetic key <Y> or proceed through the following method to open the window
for measuring the tool in the Y direction:
Move the cursor to the input field for Length Y with the cursor keys and then press this sof
t-
key.
12.
Enter the distance measured in Step 9 in the input field, for example, "48".
If you desire to use the relative coordinate, press this softkey.
13.
Press this softkey to confirm your input. The system calculates the offset and e
n
ters it in the
geometry i
nput field of the currently active tool automatically.
Measuring the Z axis of the tool
1.
Select the m
achining operating area.
2.
Select a suitable override feedrate and use the handwheel to move the tool to scratch the
required workpiece edge (or the edge of
the setting block, if it is used).
3.
Select the o
ffset operating area.
4.
Press the alphabetic key <Z> or proceed through the following method to open the window
for measuring the tool in the Z direction:
