Commissioning Manual
01/2017
295

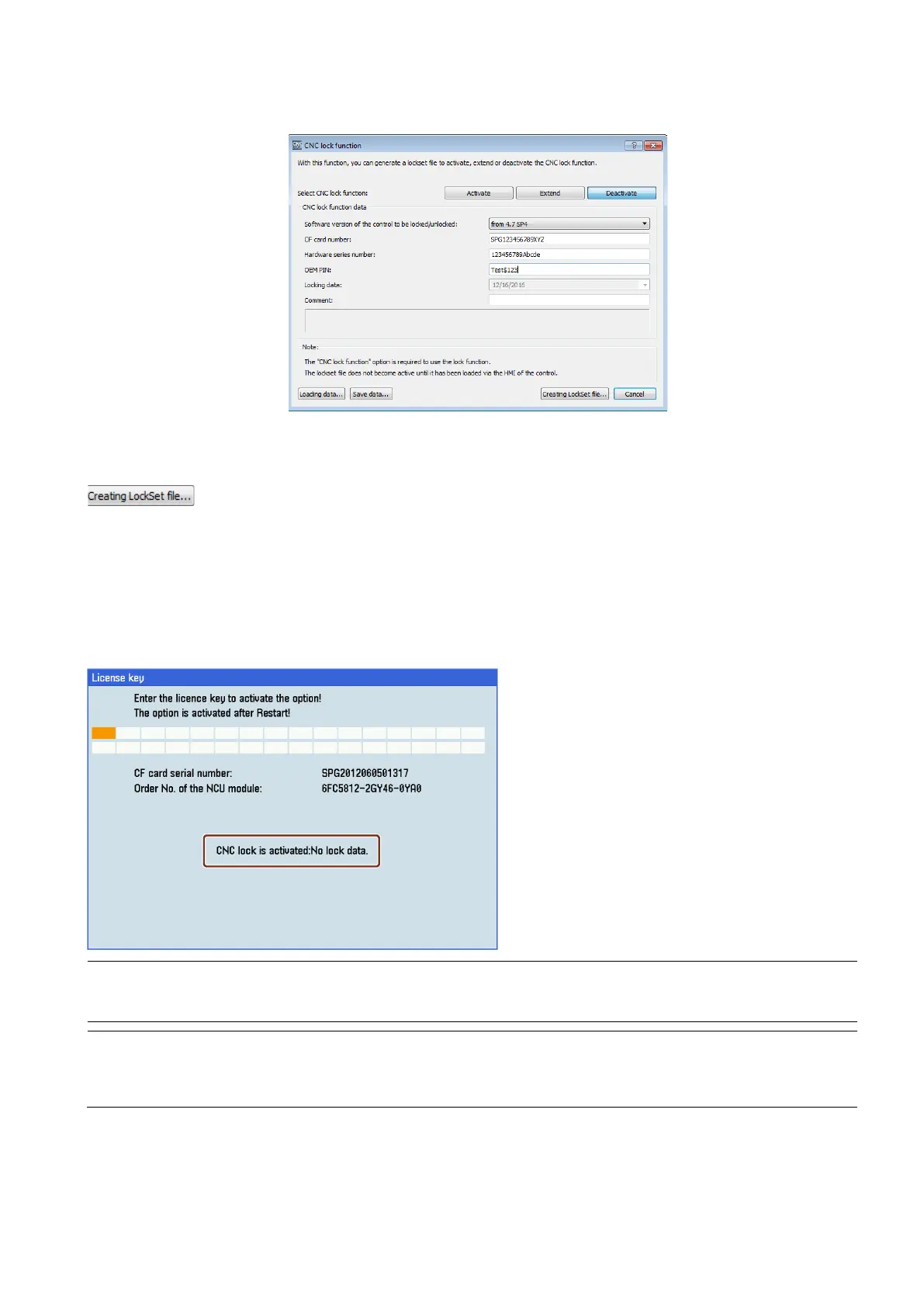

Enter the data required in the dialog box, for example:
Note: The serial numbers of the CF card and the PPU as well as the OEM PIN must match
the values used when the CNC lock function was activated initially. For more information,
see Section "Creating the activation file (Page 291)".
Click this button to save the deactivation data in the form of .clc file.
Importing the deactivation file
The deactivation file must be imported into the control system to deactivate the CNC lock function. The machine
manufacturer can import the deactivation file directly or send the file to the end user who transfers the file to the control
system. For more information about how to import the file, see Section "Importing the activation file (Page 292)".
If no error occurs when importing the deactivation file, the CNC lock function is deactivated. You can find the CNC lock
status as follows:
when importing the deactivation file, an error-specific alarm will be issued. The state of the CNC lock
function remains unchanged.
Note
We recommend that the end user creates a complete commissioning archive over all control system components after
de
activating the CNC lock function. If necessary, this commissioning archive can be used to recommission the control
-deactivating the CNC lock function.
