Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
01/2017
389
Order No. : 6SL3210-
5CC14-0UA0
5CC16-0UA0
5CC17-0UA0
5CC21-0UA0

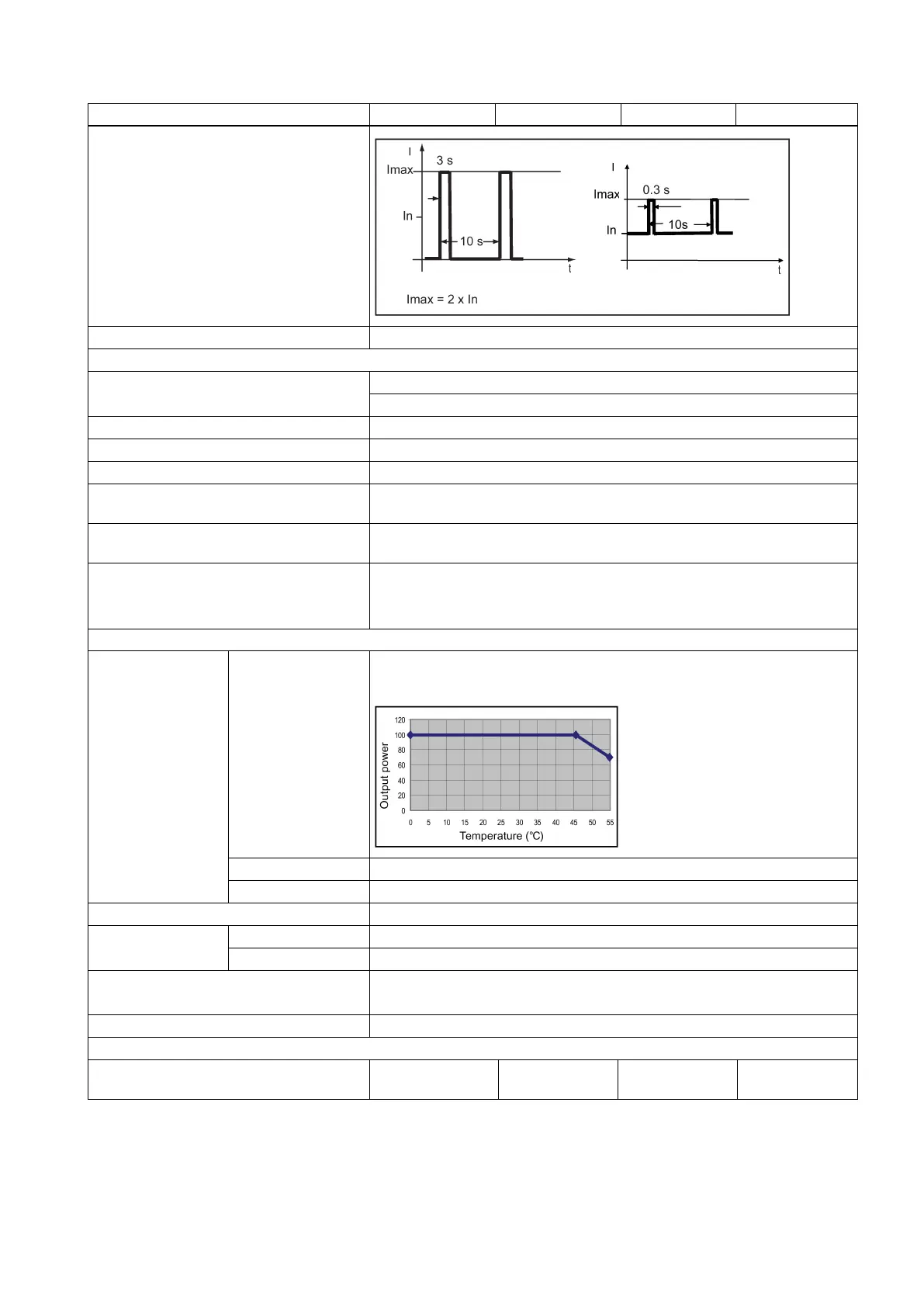

Overload capability
Applicable load inertia
≤ 5 times of motor inertia
Control performance
Control mode
1. Position control (Input mode: pulse + direction signals)
2. JOG mode
Input pulse frequency
≤ 333 kHz
Drive input
1. Servo enable 2. Alarm cancel
Drive output
1. Brake output 2. Servo alarm 3. Servo ready 4. Zero mark
Protection functions Overcurrent, overvoltage, undervoltage, overload, IGBT overtemperature,
overspeed, encoder abnormal protections, I
2
t detection
Encoder
1)
Incremental encoder 2500 ppr, with U, V, W rotor position signal; one zero
mark
Mains supply voltage Rated voltage: 3 AC 220 V to 240 V
Tolerance: - 15% to + 10%
50/60 Hz, unregulated DC-Link
Environmental conditions
Surrounding air
temperature
Operation 0 to 45 °C: without power derating (100% load);
45 °C to 55 °C: with power derating (by 0% at 45 °C up to 30% at 55 °C).
Transport
-40 ℃ to 70 ℃
Storage
-25 ℃ to 55 ℃
Relative humidity
< 95%
Vibration resistance
Operation
≤ 1 G (0.075 mm)
Transport & storage
≤ 2 G (7.5 mm)
Installation altitude < 1000 m above sea level: without power derating;
1000 to 2000 m: with power derating (derated to 80%)
Degree of protection IP20
Mechanical design
Outline dimensions (W × H × D) 106 × 226 ×
200 mm
106 × 226 ×
200 mm
106 × 226 ×
200 mm
123 × 226 ×
200 mm
1)
The drive has an x4 pulse detect circuit for the square wave encoder internally. As a result, the drive counts 10000
pulses per motor revolution actually.
