Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
48 01/2017

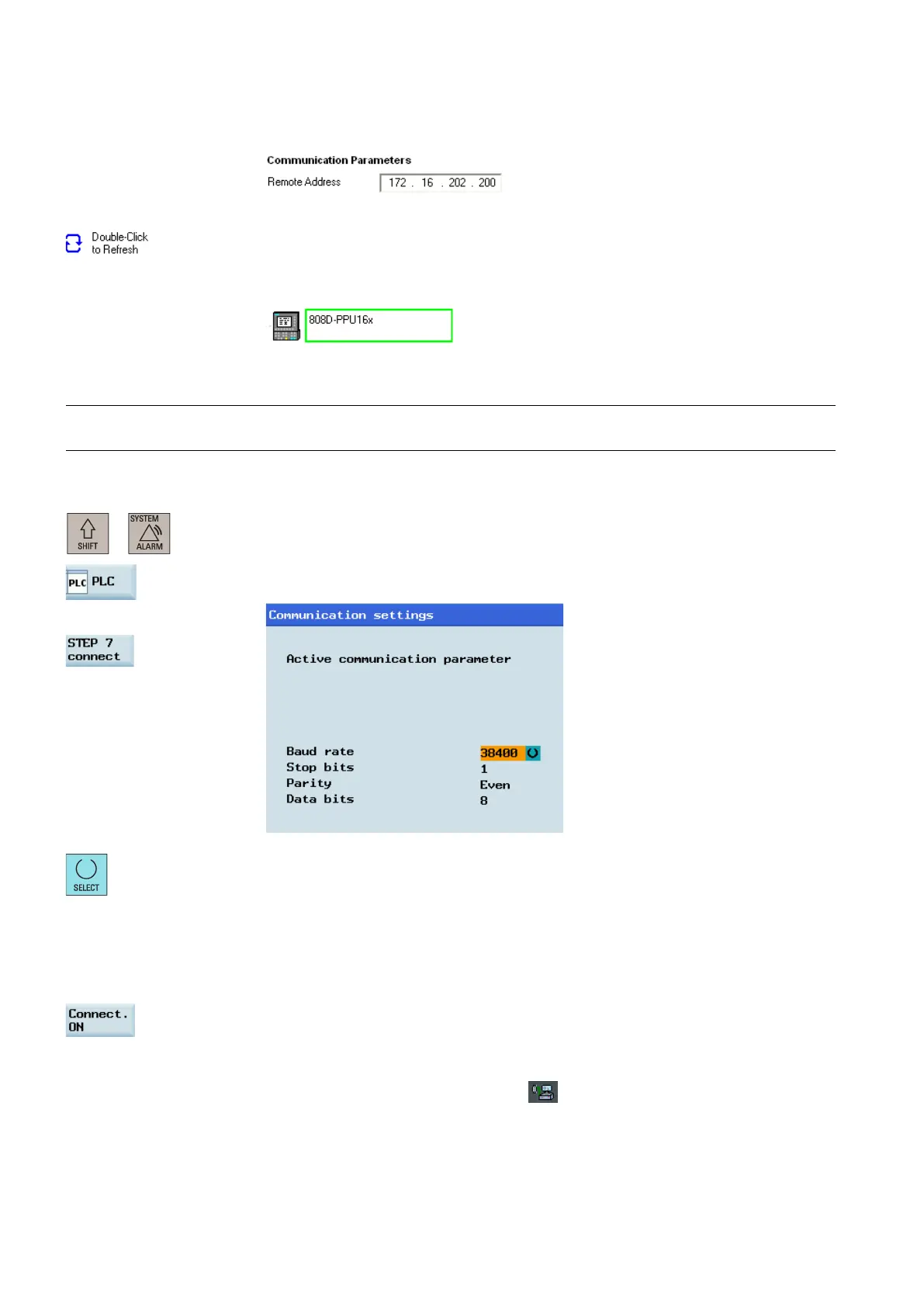

10.
Enter the IP addr
ess for the control system in the communication setting window, for exam-
ple:
Note that the IP address entered here must be the same as that you have set on the PPU.
11.
Double
-click this symbol in the communication setting window to establish a connection to
the specified IP address.
Wait until the information of the connected control system is identified a
s follows, and then
the connection is ready.
Establishing a connection via the RS232 interface (PPU160.2 only)
Note
The RS232 interface is available on the PPU160.2 only.
Proceed through the following steps to establish a connection between the control system and a computer:
1.
Connect the control system with the computer using an RS232 cable.
+
2.
Select the system data operating area on the PPU.
↓
3.
Press these two softkeys in succession to open the following communication setting wi
n-
dow.
4.
Use this softkey to select a communication baud rate. The control system supports the
following baud rates:
•
9.6 kbps
•
19.2 kbps
•
38.4 kbps
•
57.6 kbps
•
115.2 kbps
5.
Activate the RS232 connection with this softkey.
No modifications to the settings are possible in this state.
The active or inactive state is retained even after a power
-on (except when you start the
system with the default data).
In the lower right corner
of the screen, the icon shows that the connection to the com-
puter via the RS232 interface is active.
