Commissioning Manual

60 01/2017

See the mounting illustration as follows:

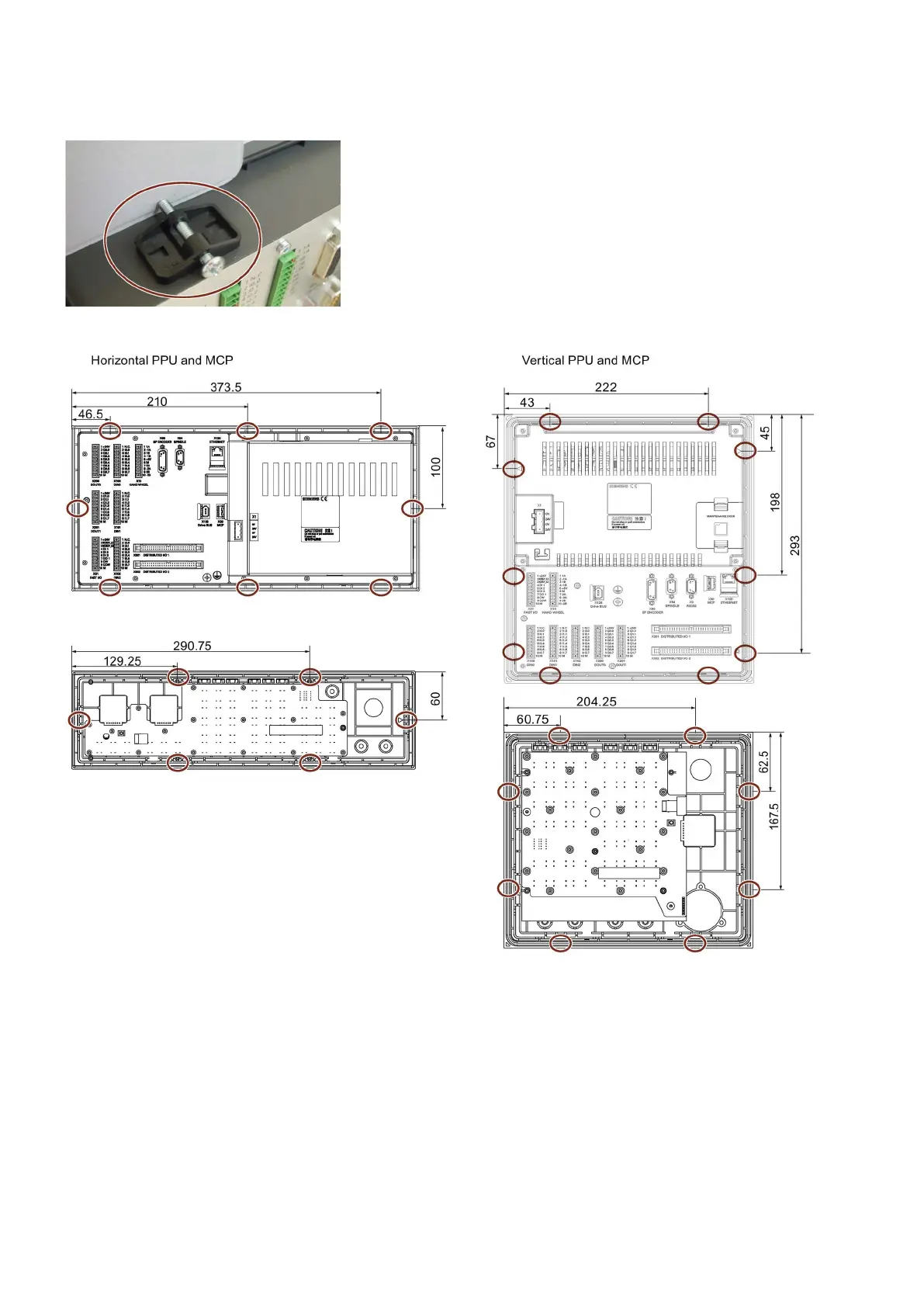

The following figures show all mounting positions on the PPU and MCP (unit: mm):
