Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
01/2017
75

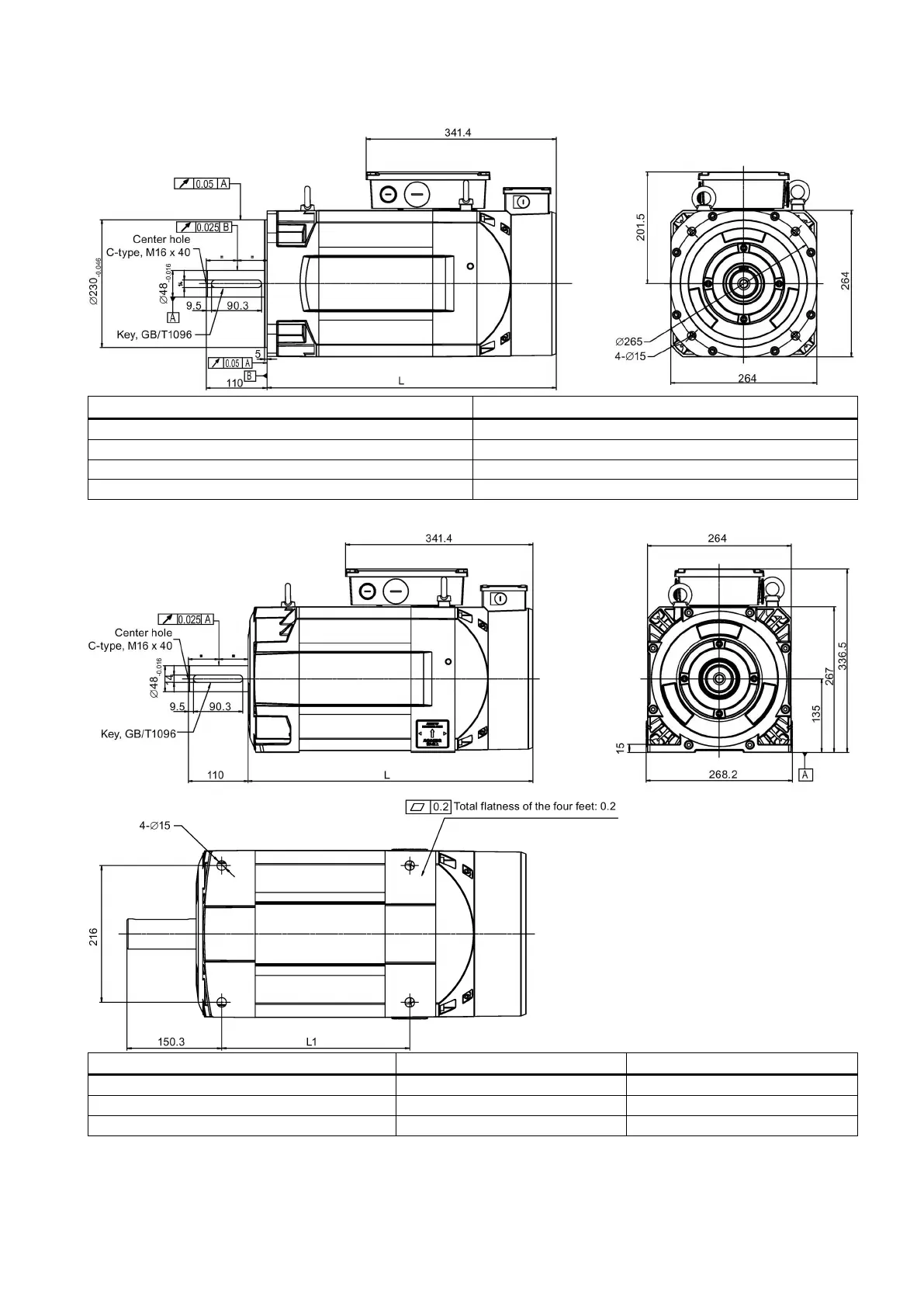

Shaft height 132 mm: flange mounting (unit: mm)
Motor
L
1PH1131-1❑F12-❑GA0
475
1PH1131-1❑D12-❑GA0
465
1PH1133-1❑F12-❑GA0
525
1PH1133-1❑D12-❑GA0
525
Shaft height 132 mm: foot mounting (unit: mm)
Motor
L
L1
1PH1131-1❑F10-❑GA0
475
251.8
1PH1131-1❑D10-❑GA0
465
241.8
1PH1133-1❑F10-❑GA0
525
301.8
