Cycles
2.5 Turning cycles
Turning Part 2: Programming (Siemens instructions)
182 Programming and Operating Manual, 05/2012, 6FC5398-5DP10-0BA0
Function

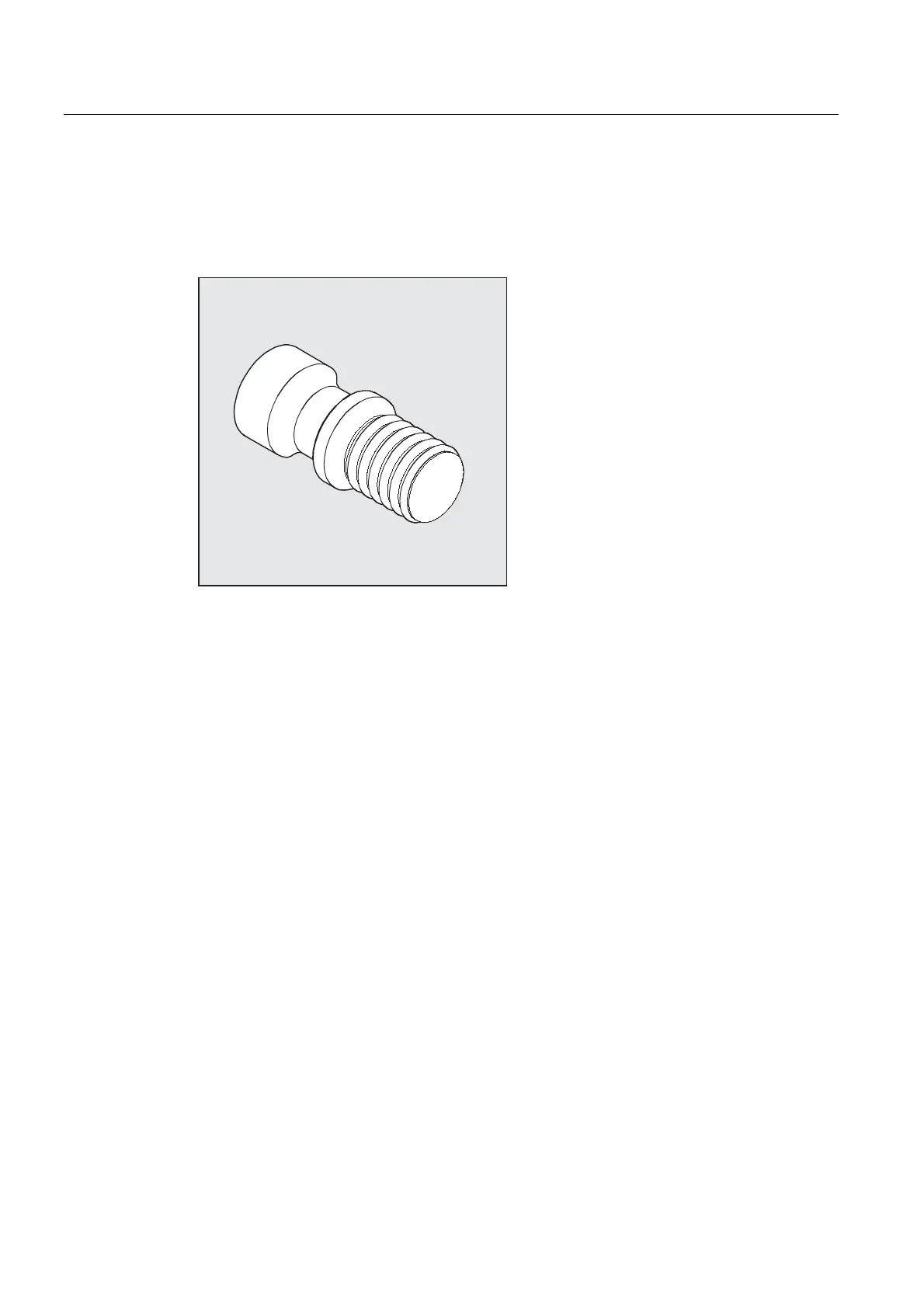

This cycle can be used to produce several cylindrical or tapered threads in succession. The
individual thread sections can have different leads whereby the lead within one and the
same thread section must be constant.
Sequence
Position reached prior to cycle start:
Starting position is any position from which the programmed thread starting point + run-in
path can be approached without collision.
The cycle creates the following sequence of motions:
● Approach of the starting point determined in the cycle at the beginning of the run-in path
for the first thread turn with G0
● Infeed for roughing according to the infeed type defined under VARI.
● Thread cutting is repeated according to the programmed number of roughing cuts.
● The finishing allowance is removed in the following step with G33.
● This step is repeated according to the number of idle passes.
● The whole sequence of motions is repeated for each further thread turn.
