Cycles
2.5 Turning cycles
Turning Part 2: Programming (Siemens instructions)
Programming and Operating Manual, 05/2012, 6FC5398-5DP10-0BA0
185

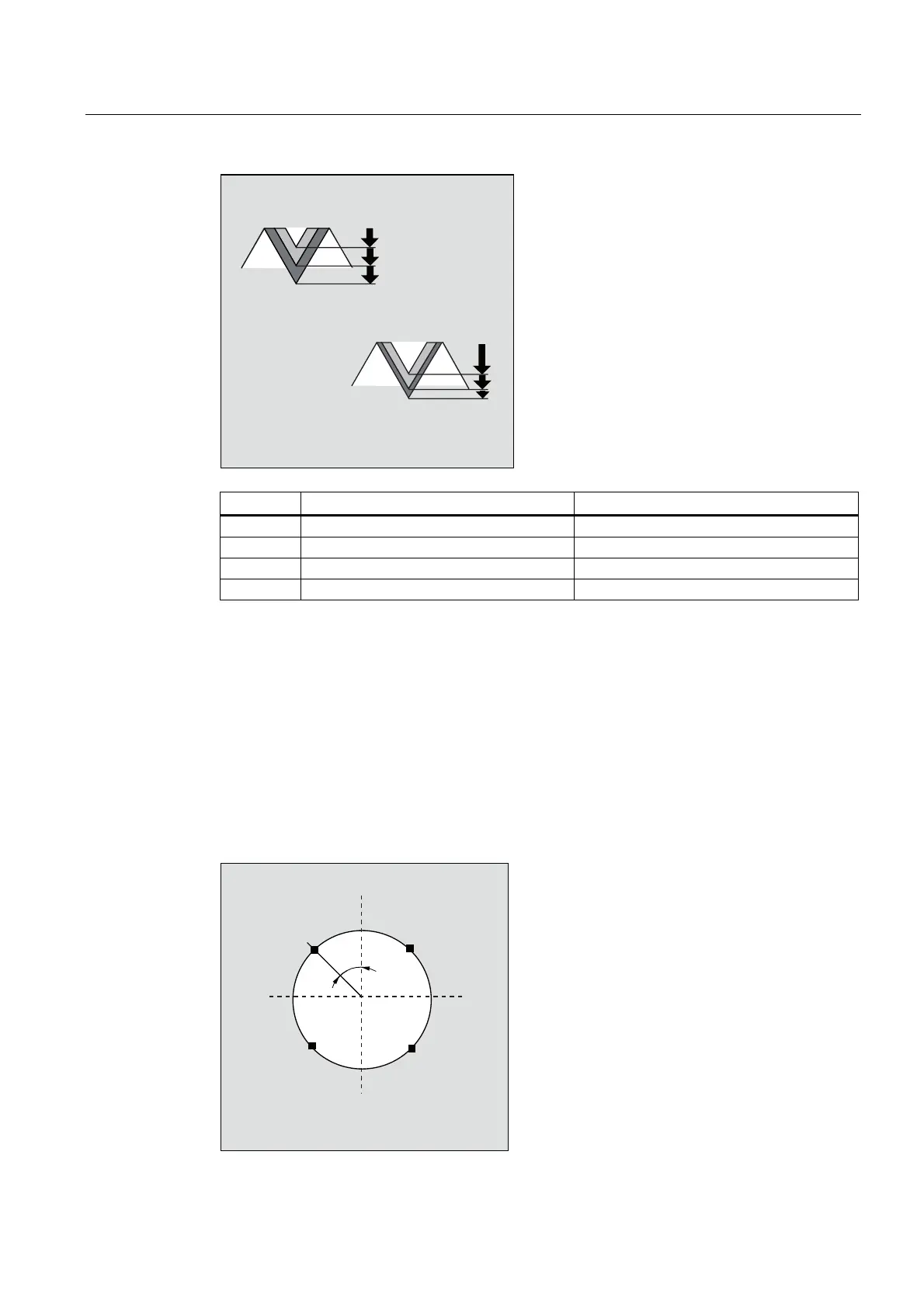

,QIHHG
ZLWKFRQVWDQWFXWWLQJFURVVVHFWLRQ
,QIHHG
ZLWKFRQVWDQWLQIHHGGHSWK
Value Ext./int. Const. Infeed/const. cutting cross-section
1 External Constant infeed
2 Internal Constant infeed
3 External Constant cutting cross-section
4 Internal Constant cutting cross-section
If a different value is programmed for the VARI parameter, the cycle is aborted after output of
alarm 61002 "Machining type defined incorrectly".
NUMTH (number of thread turns)
Use the NUMTH parameter to define the number of thread turns with a multiple-turn thread.
For a single-turn thread, the parameter must be assigned zero or can be dropped completely
in the parameter list.
The thread turns are distributed equally over the circumference of the turned part; the first
thread turn is determined by the NSP parameter.
To produce a multiple-turn thread with an asymmetrical arrangement of the thread turns on
the circumference, the cycle for each thread turn must be called when programming the
appropriate starting point offset.
6WDUW
QG
WKUHDG
6WDUW
UG
WKUHDG
6WDUW
WK
WKUHDG
6WDUW
VW
WKUHDG
GHJUHHPDUNHU
1807+
163
