Typical turning program
Turning Part 2: Programming (Siemens instructions)
198 Programming and Operating Manual, 05/2012, 6FC5398-5DP10-0BA0
S1000 M03
F0.2
CYCLE93( 20.00000, -11.00000, 4.50000, 1.50000, , , , , , , ,0.20000, 0.20000,
1.00000, ,5,)
T3
S1000 M03
CYCLE99( 1.75000, 0, 0.00000, -13.00000, 20.00000, 20.00000, 2.00000, 2.00000,
1.00000, 0.10000, ,0.00000, 8, 1, 1, 1)
M2
PART_CONTOUR:
G0 Z0 X0
G1 X20 CHF=1
Z-15.5
X25 Z-21.5
Z-28.5 RND=1.2
X30 CHF=1
Z-36.9 RND=2
X40 Z-38.7 RND=2
Z-46
X50
END_T:

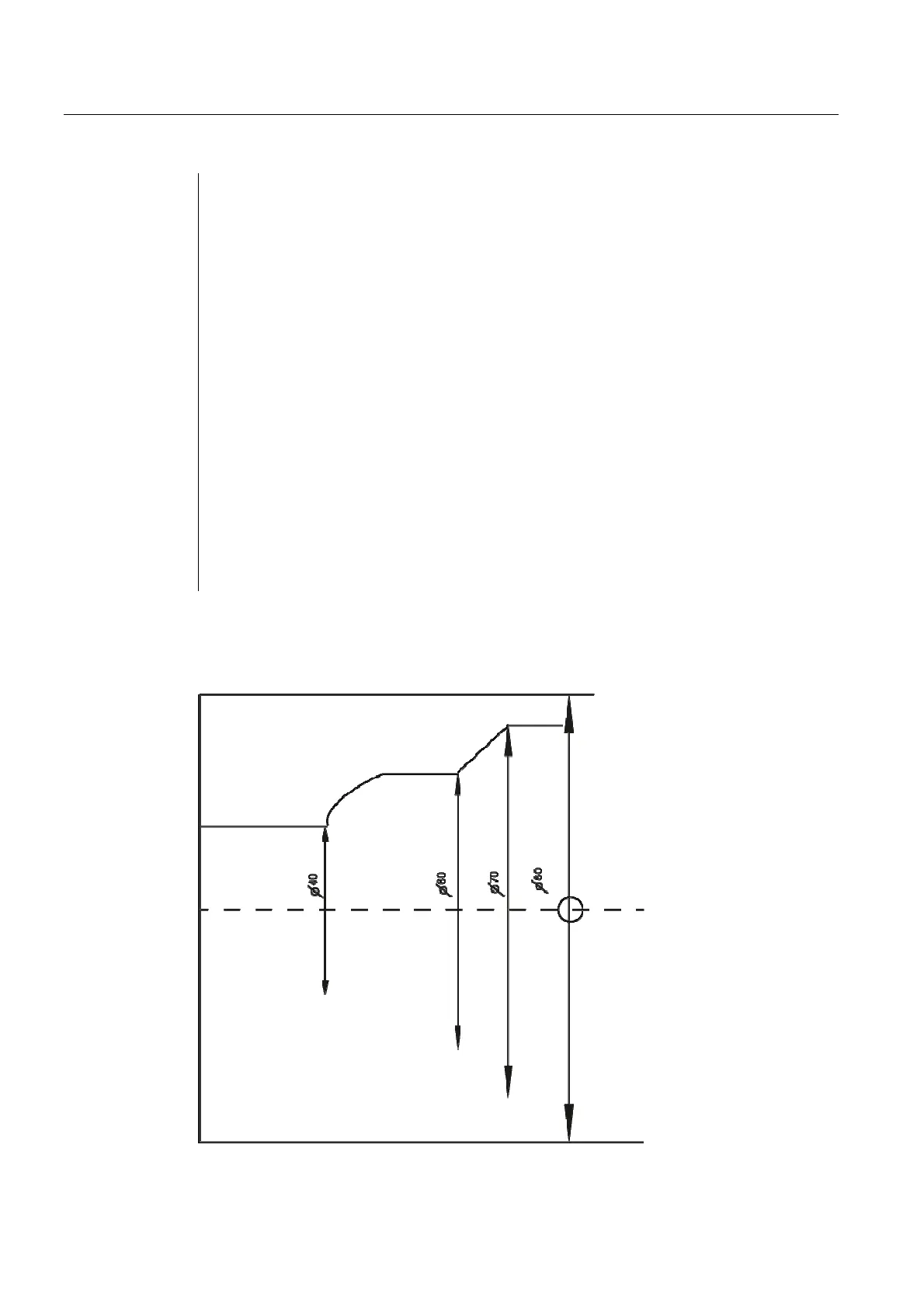

Programming example2
The following example describes how to process a cavity profile and how to define the
subroutine of a contour with the contour functionality.
