Typical turning program
Turning Part 2: Programming (Siemens instructions)
200 Programming and Operating Manual, 05/2012, 6FC5398-5DP10-0BA0
;R,RROUND:2;*GP*;*RO*;*HD*
;LL,EX:-50;*GP*;*RO*;*HD*
;R,RROUND:3;*GP*;*RO*;*HD*
;LA,EX:-55,EY:45;*GP*;*RO*;*HD*
;#End contour definition end - Don't change!;*GP*;*RO*;*HD*
M17
CON02_E:;************* CONTOUR ENDS ************
Programming example3

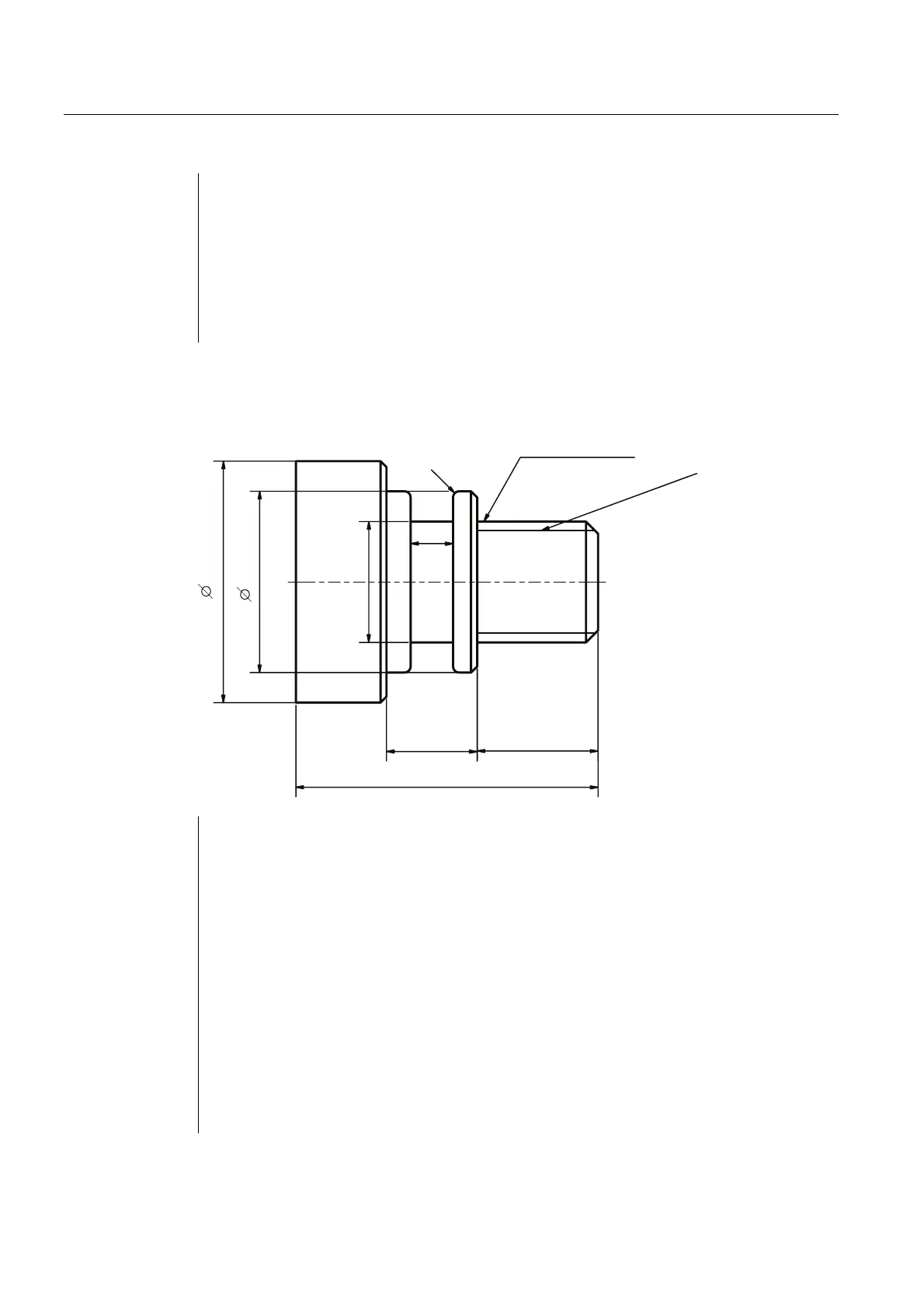

Relief Groove Form E
0;J
R1,00
40
30
N10 G00 G90 G95 G40 G71
N20 LIMS=4500
N30 T1 D1 ;ROUGH TURN
N40 G96 S250 M03 M08
N50 G00 X52.0 Z0.1
N60 G01 X-2.0 F0.35
N70 G00 Z2.0
N80 X52.0
CYCLE95( "DEMO:DEMO_E", 2.50000, 0.20000, 0.10000, 0.15000, 0.35000, 0.20000,
0.15000, 9, , ,)
N90 G00 G40 X500.0 Z500.0
N100 M01
N110 T2 D1 ;FINISH TURN
