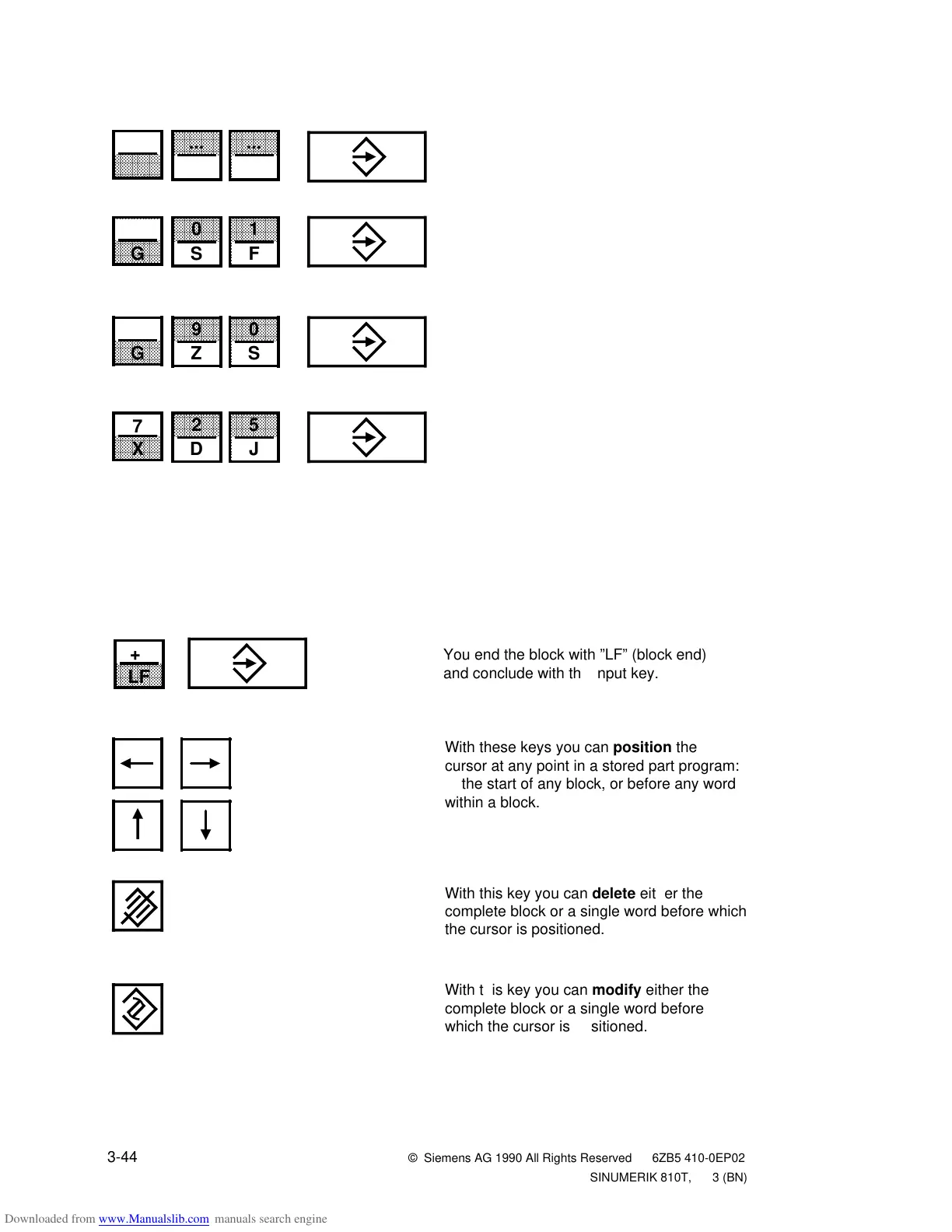

3 Operating Sequences 11.90
3.1.10 Program input
Example: Entering an individual block
Enter the block number ”N...” using the
numerical keys, and conclude with the input
key.
Enter the first word - in the
example ”G01” - and conclude with the
input key.
Enter the second word - in the example
”G90” for ”Absolute” - and conclude with
the input key.
Enter a target coordinate - in the example
”X25” - and conclude with the input key.
.
.
.
etc.
.
.
.
etc.
• • •
