11.90 2 Operation
2.3.5 Branching to operating functions within an operating mode
2.3.5 Branching to operating functions within an operating mode
Depending on the mode you have selected, you will be offered a ”Basic softkey menu” of
operating functions in the menu display (2.1.1.1) on the CRT.
After you select a function using the softkeys, the control will display other/new menus.
”Menu trees” with several branches will be generated.
Menu trees for each operating mode are stored in the control:

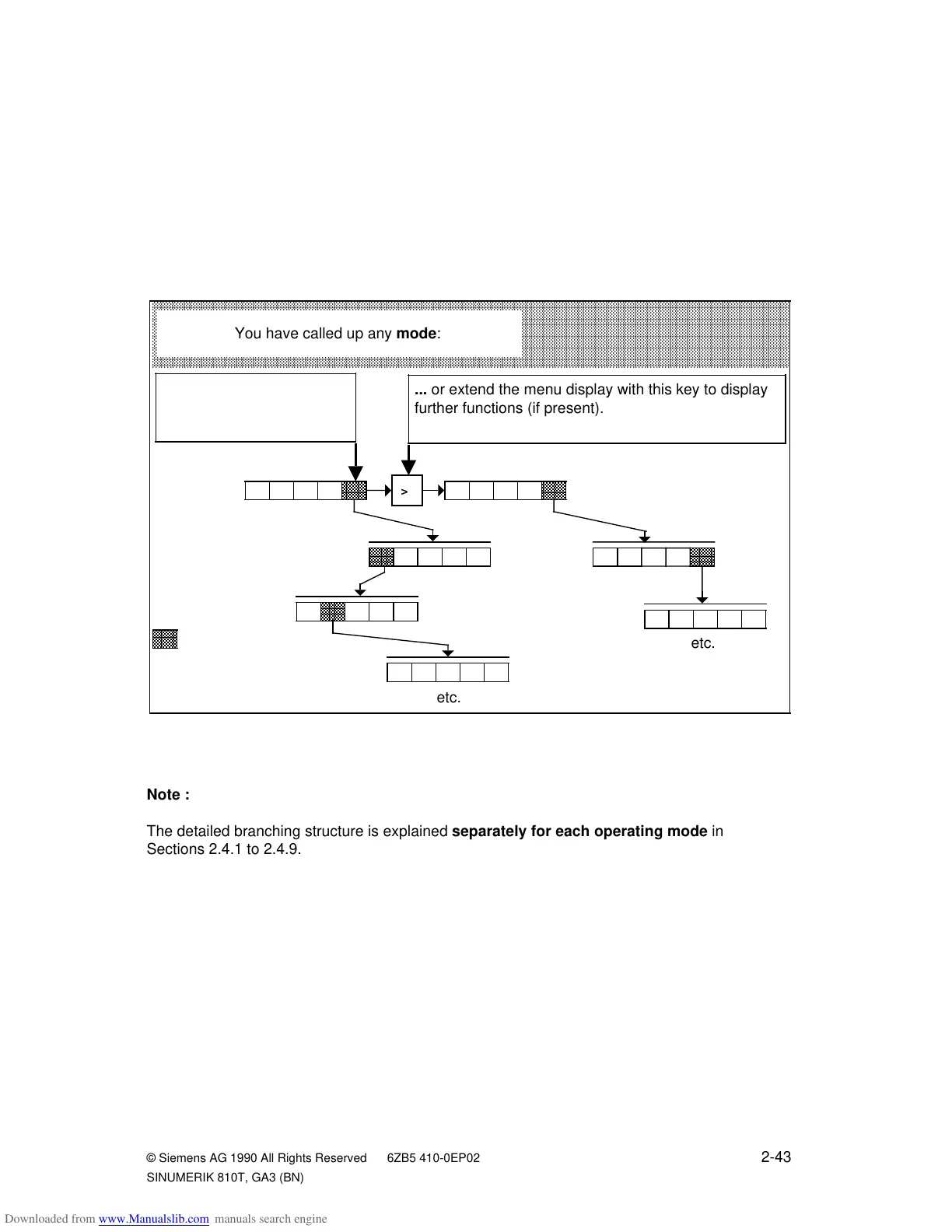

Branching of the operating functions (”Menu tree”) with stylized representation of the menus
