3.2.6 “PLAYBACK”

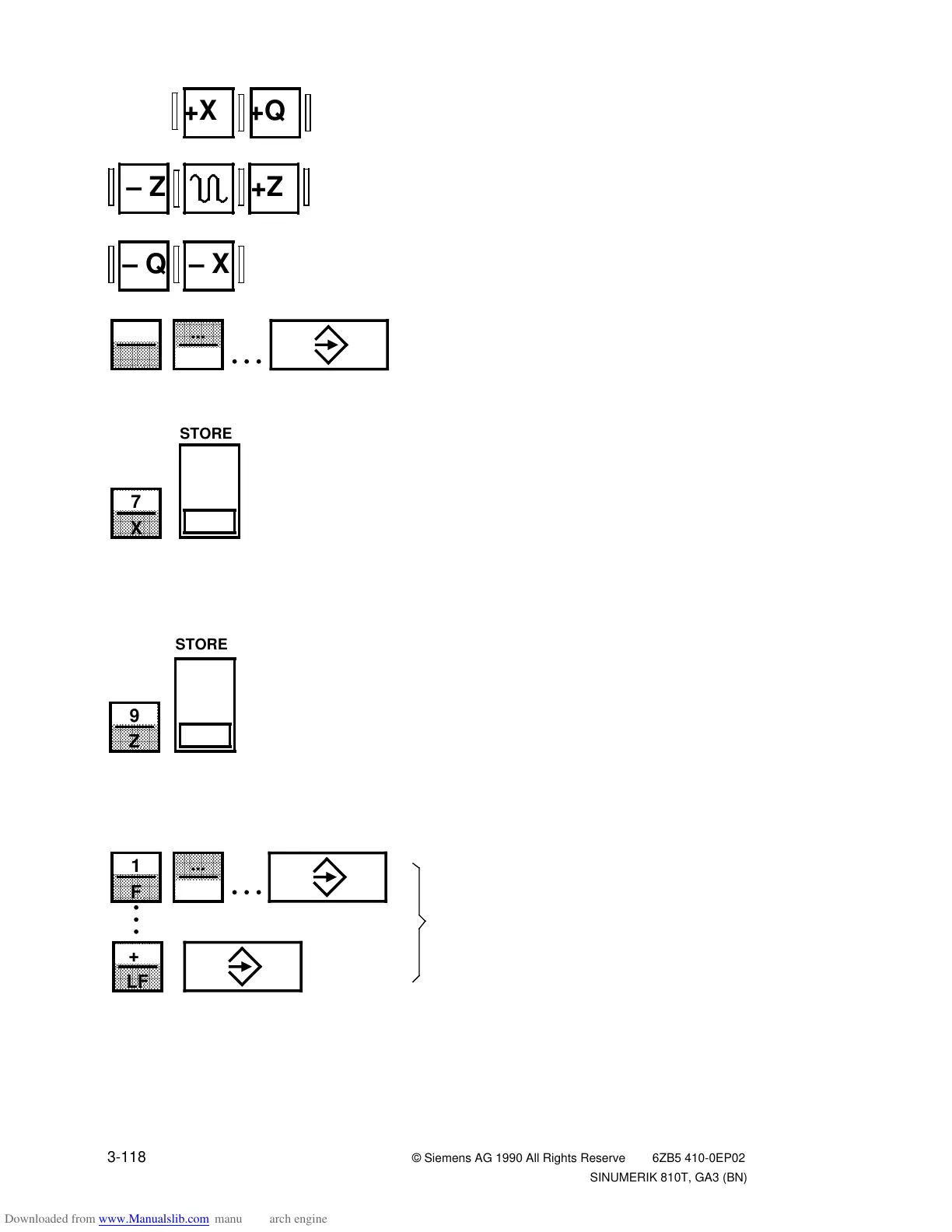

Using the direction keys, traverse to the
desired position.
Using the numerical keyboard, enter a
block no. ”N ...”, and store it with the
input key.
The control transfers the X axis value under ”Actual position” into the selected block
”N ...”.
Enter the axis assignment ”Z” using the
keyboard, and then operate the ”STORE”
softkey.
Enter the axis assignment ”X” using the
keyboard, and then operate the ”STORE”
softkey.
The control transfers the Z axis value under ”Actual position” into the selected block
”N ...”.
Using the numerical keyboard, enter the
required technology values, e.g. feedrate
”F...” etc., and terminate each input
including ”LF” (block end) with the input
key.
Note:
You cannot work with operator
”GUIDING”.
