2 Operation 11.90
2.1.1 SINUMERIK 810T operator interface
with integrated machine control panel

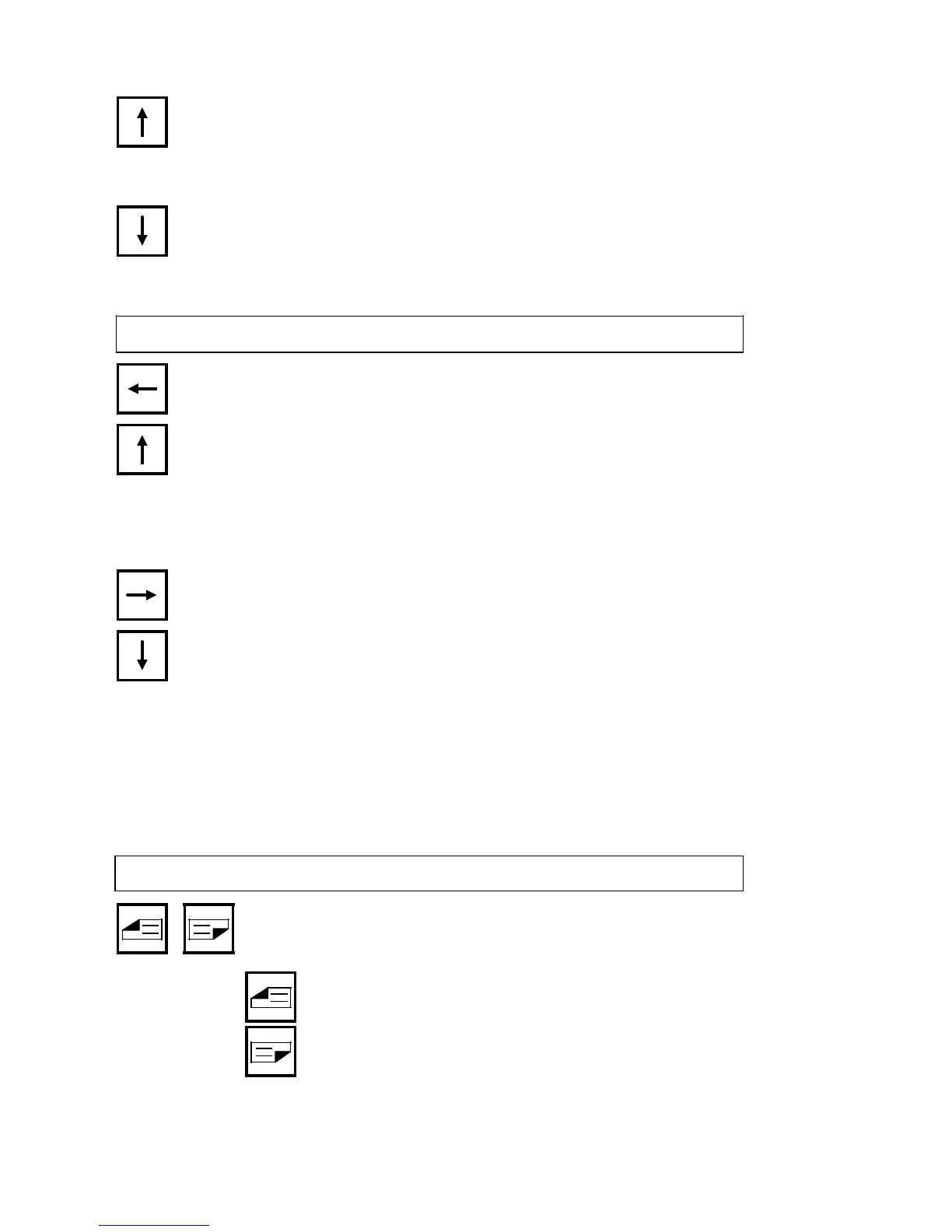

Cursor movement in an input screen form / dimension graphic display
With this key you move the cursor
• from the start of block to the start of the previous block
• to the start of the block in which the cursor is positioned
• to the start of program by continuously operating the key
With this key you move the cursor
• from the start of block to the start of the following block
• to the start of the following block if the cursor is positioned within a
block
• to the end of program by continuously operating the key.
With one of these keys, you move the cursor
• Backwards in an input form * from field to field:
from right to left in the line and then to the line above from right to
left etc.
• Backwards in a dimension graphic display to the previously
entered sequence of measurement;
if the key is operated continuously, the cursor jumps to the input
field for the first dimension to be input.
With one or the other of these keys, you move the cursor
• Forwards in an input form * from field to field:
in the same line from field to field from left to right, and then to the
line below from left to right.
• Forwards in a dimension graphic display, after the previously
entered sequence of measurement;
If the key is operated continuously, the cursor jumps to the input field
for the last dimension to be input.
* Input forms are available for:
Tool offsets, setting data, machine data, operator prompting
(guiding) etc. .
By operating either of these keys you can change the current CRT
display when further displays of a similar format are available.
Paging up / down
You page one display down.
You page one display up.
2-12 © Siemens AG 1990 All Rights Reserved 6ZB5 410-0EP02
SINUMERIK 810T, GA3 (BN)
