Siemens SINUMERIK 840C User Manual

10.91 1 Introduction
1.2.2 Measurement variants for milling machines and machining centres

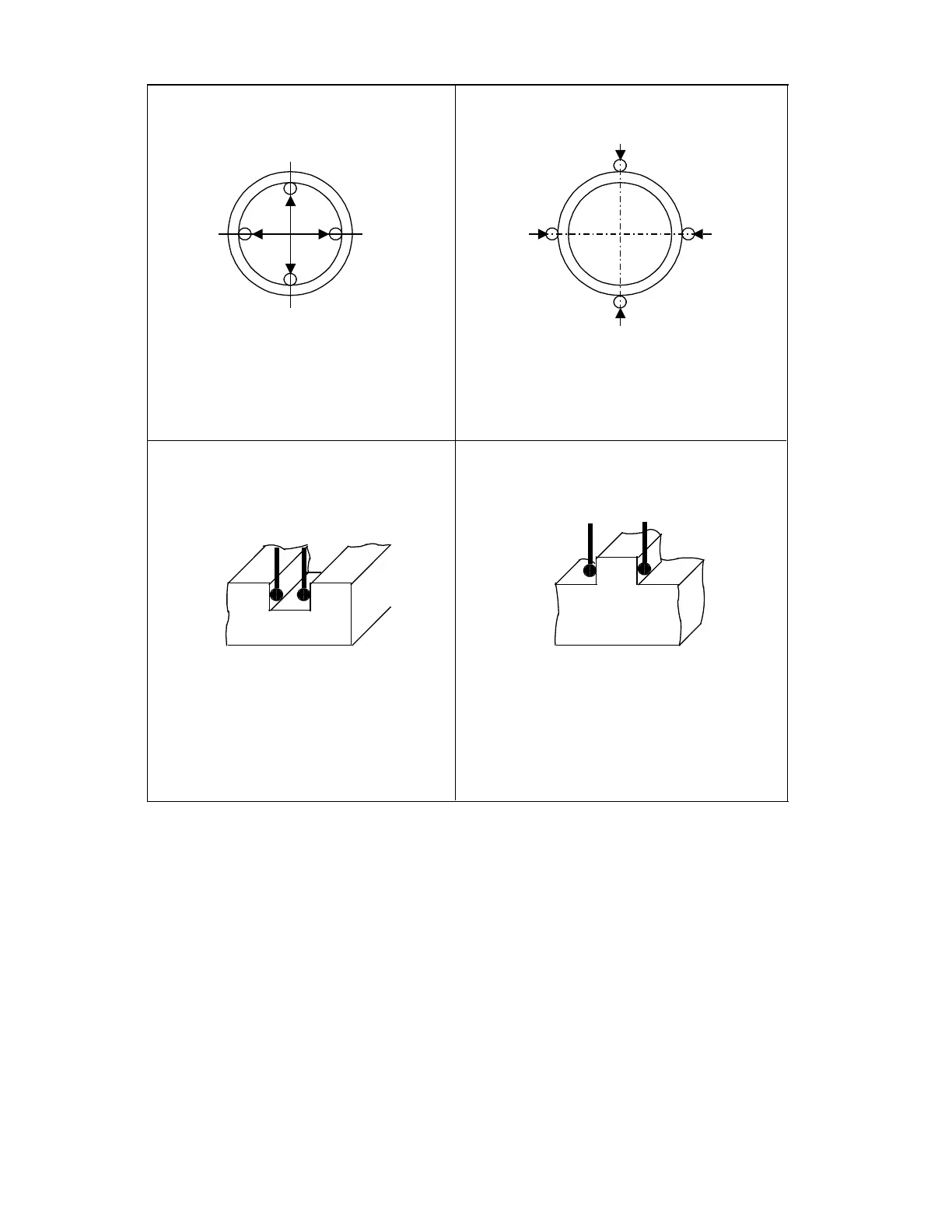

Fig. 1.5 Workpiece measurement
Bore: Shaft:
Result:
Actual dimension (diameter),
deviation, centre point,
tool offset,
zero offset (G58)
Result:
Actual dimension (diameter),
deviation, centre point,
tool offset,
zero offset (G58)
Slot: Web:
Result:
Actual dimension (slot width),
deviation, slot centre,
tool offset,
zero offset (G58)
Result:
Actual dimension (web width),
deviation, web centre,
tool offset,
zero offset (G58)
