7 Measuring in JOG Mode (SINUMERIK 880/880 GA2) 01.93
7.1.1 Operating and function sequence
7. As soon as the probe has been deflected, the traversing axis (measuring
axis) is stopped and the selected tool geometry is calculated. The derived
tool length is displayed (tool length).
The dialog text MEASURING ACTIVE is deleted and the STORE softkey is
enabled.

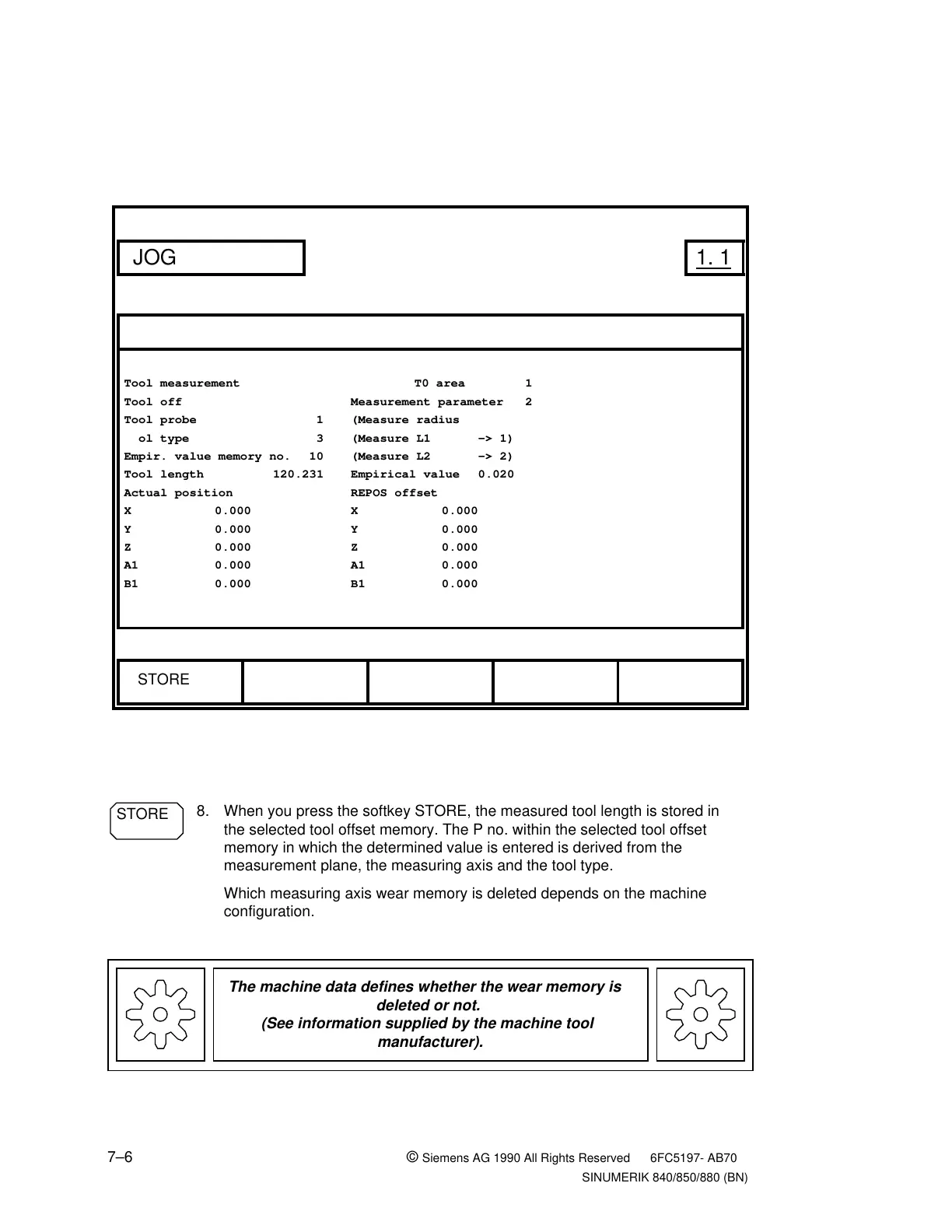

Display after probe has been deflected
