① X203/X204 Double USB interface 1
② X212/X213 Double USB interface 2
③ X202 Ethernet interface
④ X205 Interface for direct keys
⑤ X206 24 VDC power supply
⑥ - Protective conductor connection

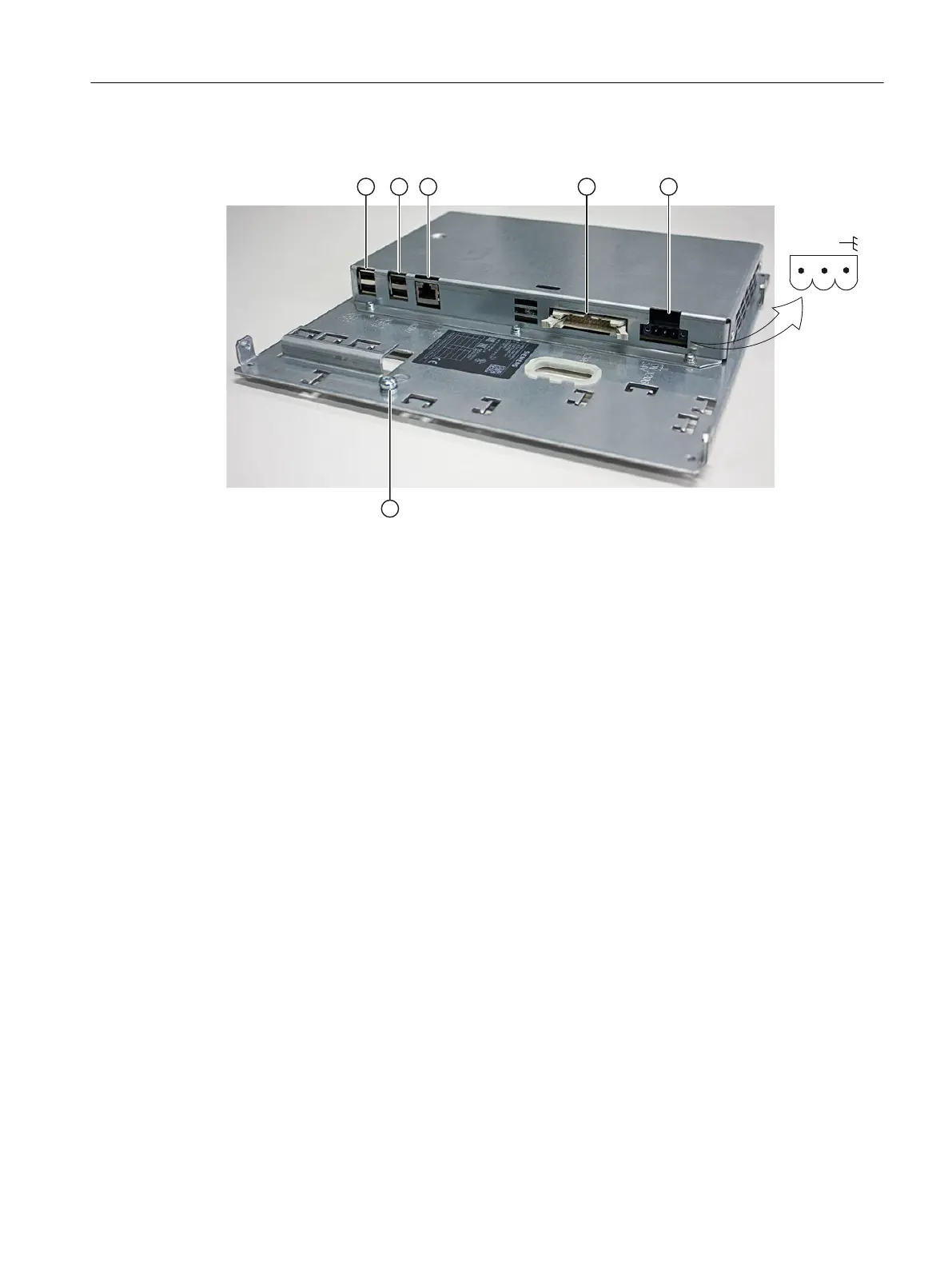

Figure 2-3 Front view of the TCU 30.3 with interfaces
Description
2.3 Interfaces
TCU 30.3
Manual, 09/2017, A5E40874197 15
