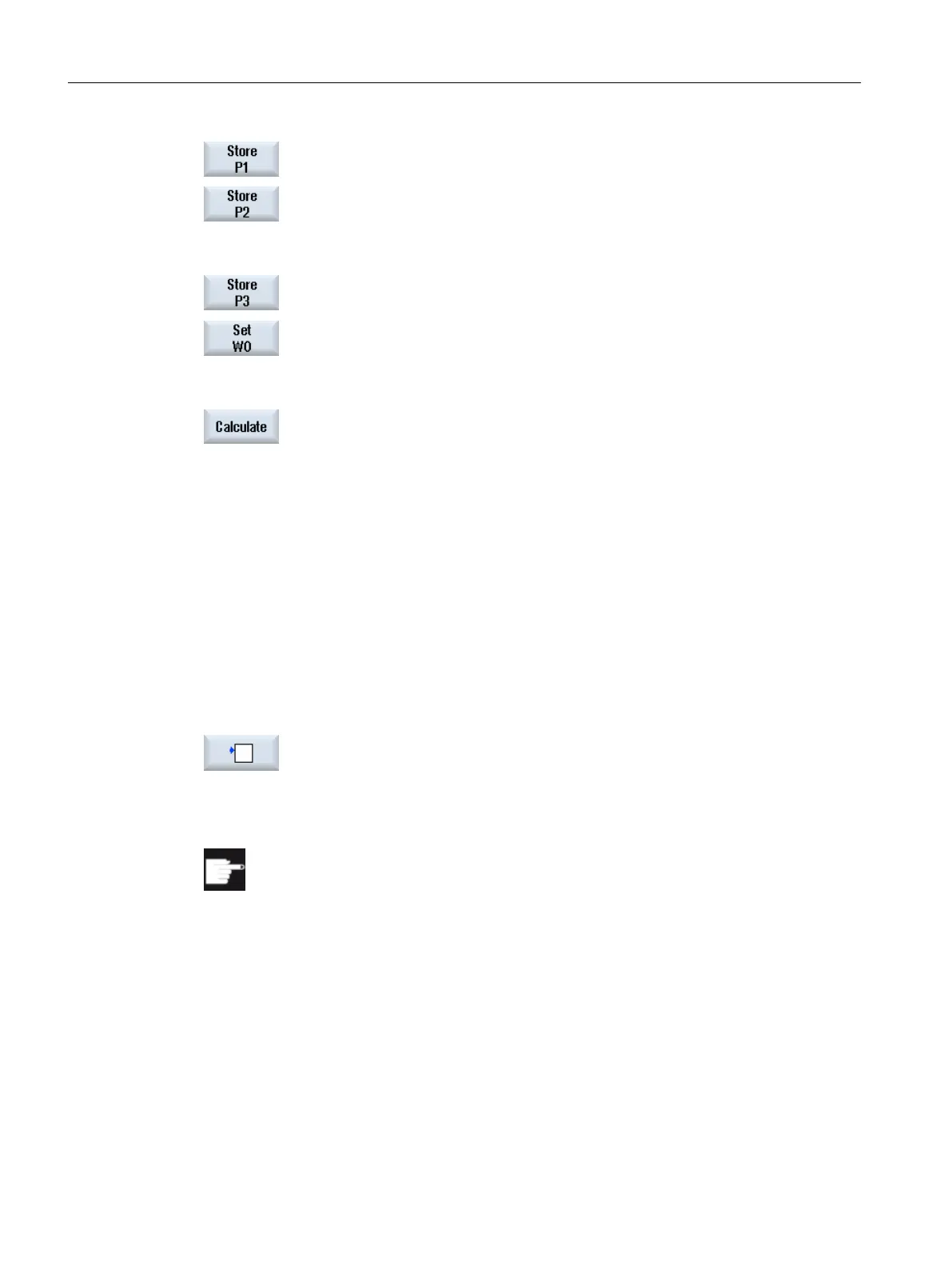

5. Press the "Save P1" softkey.
6. Then traverse the tool to the second and third measuring point and press
the "Save P2" and "Save P3" softkeys.
7. Press the "Set ZO" or "Calculate" softkey.
Angles α and β are calculated and displayed.
For "Set ZO" the angle offset is stored in the zero offset.
See also
Corrections after measurement of the zero point (Page 137)
4.6.10 Defining the measurement function selection
The measurement versions "Set edge", "Align edge", "Right-angled corner", "1 hole" and "1
circular spigot" are listed in the "Measure workpiece zero" in the associated vertical softkey
bar.
You have the option of replacing these by softkeys with other measurement versions.
"Set edge" softkey
The "Set edge" softkey cannot be assigned the softkey of another meas‐
urement version.
Software option
You require the "Extended operator function" option for the measurement function
selection (only for 828D).
Setting up the machine
4.6 Measuring the workpiece zero
Milling
136 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
