8.2 Program views
You can display a G code program in various ways.
● Program view
● Parameter screen, either with help screen or graphic view
Note
Help screens / animations
Please note that not all the conceivable kinematics can be displayed in help screens and
animations of the cyclic support.
Program view
The program view in the editor provides an overview of the individual machining steps of a
program.

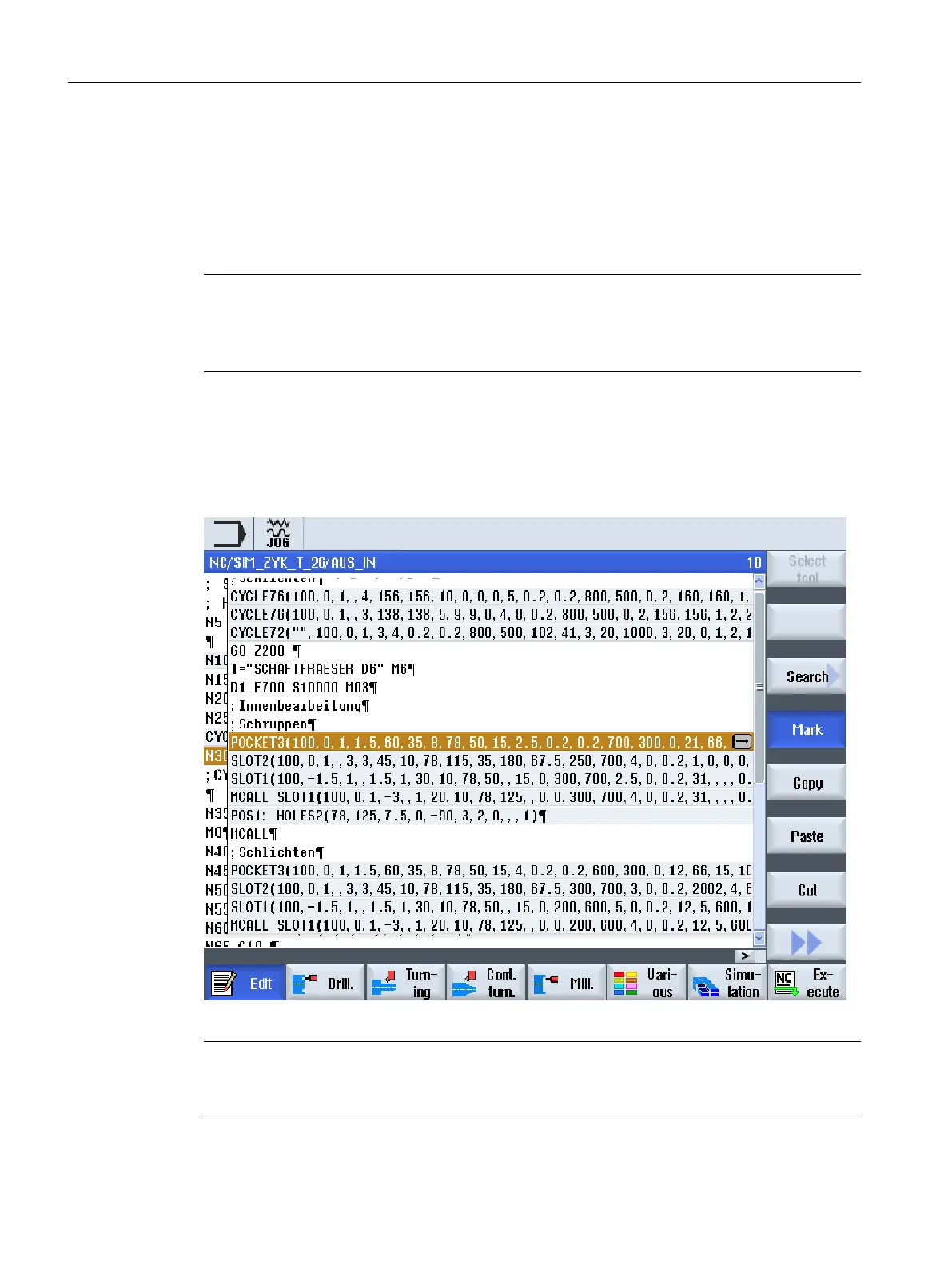

Figure 8-1 Program view of a G code program
Note
In the program editor settings, you define as to whether cycle calls are to be displayed as plain
text or in NC syntax. You can also configure the recording of the machining times
Generating a G code program
8.2 Program views
Milling
296 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
