Siemens SINUMERIK 840D sl User Manual

Operator controls and indicators
1 Alphabetic key group
With the <Shift> key pressed, you activate the special characters on keys with double assign‐
ments, and write in the uppercase.
Note: Depending on the particular configuration of your control system, uppercase letters are
always written
2 Numerical key group
With the <Shift> key pressed, you activate the special characters on keys with double assign‐
ments.
3 Control key group
4 Hotkey group
5 Cursor key group
6 USB interface
7 Menu select key
8 Menu forward button
9 Machine area button
10 Menu back key
11 Softkeys

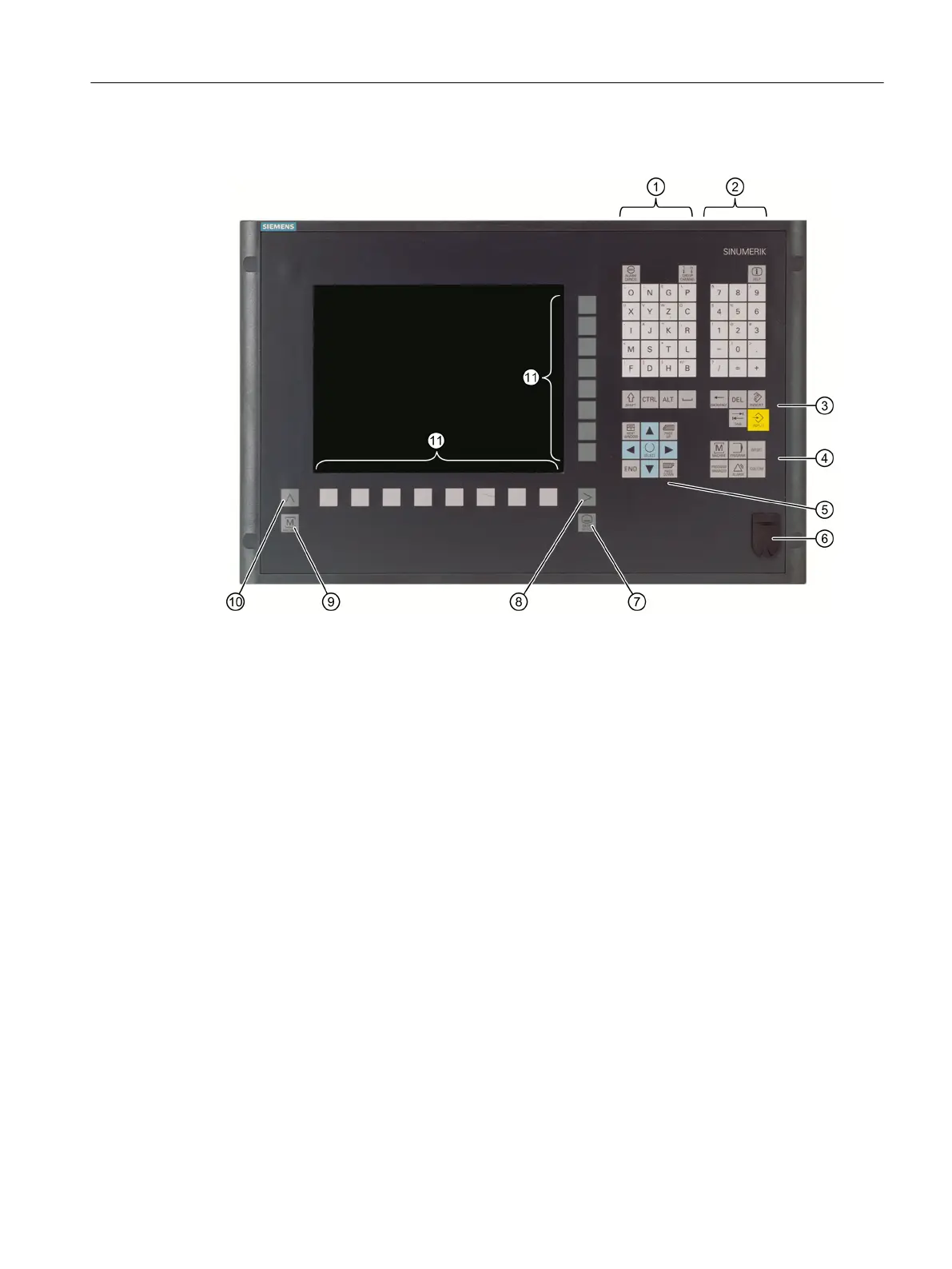

Figure 2-1 View of OP 010 operator panel front
References
A more precise description as well as a view of the other operator panel fronts that can be
used may be found in the following reference:
Introduction
2.2 Operator panel fronts
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 27

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
