Siemens SINUMERIK 840D sl User Manual

● Edge finishing
Edge finishing is performed in the same way as finishing, except that the last infeed (finish
base) is omitted.
● Chamfering
Chamfering involves edge breaking at the upper edge of the longitudinal slot.
6&6&
=)6

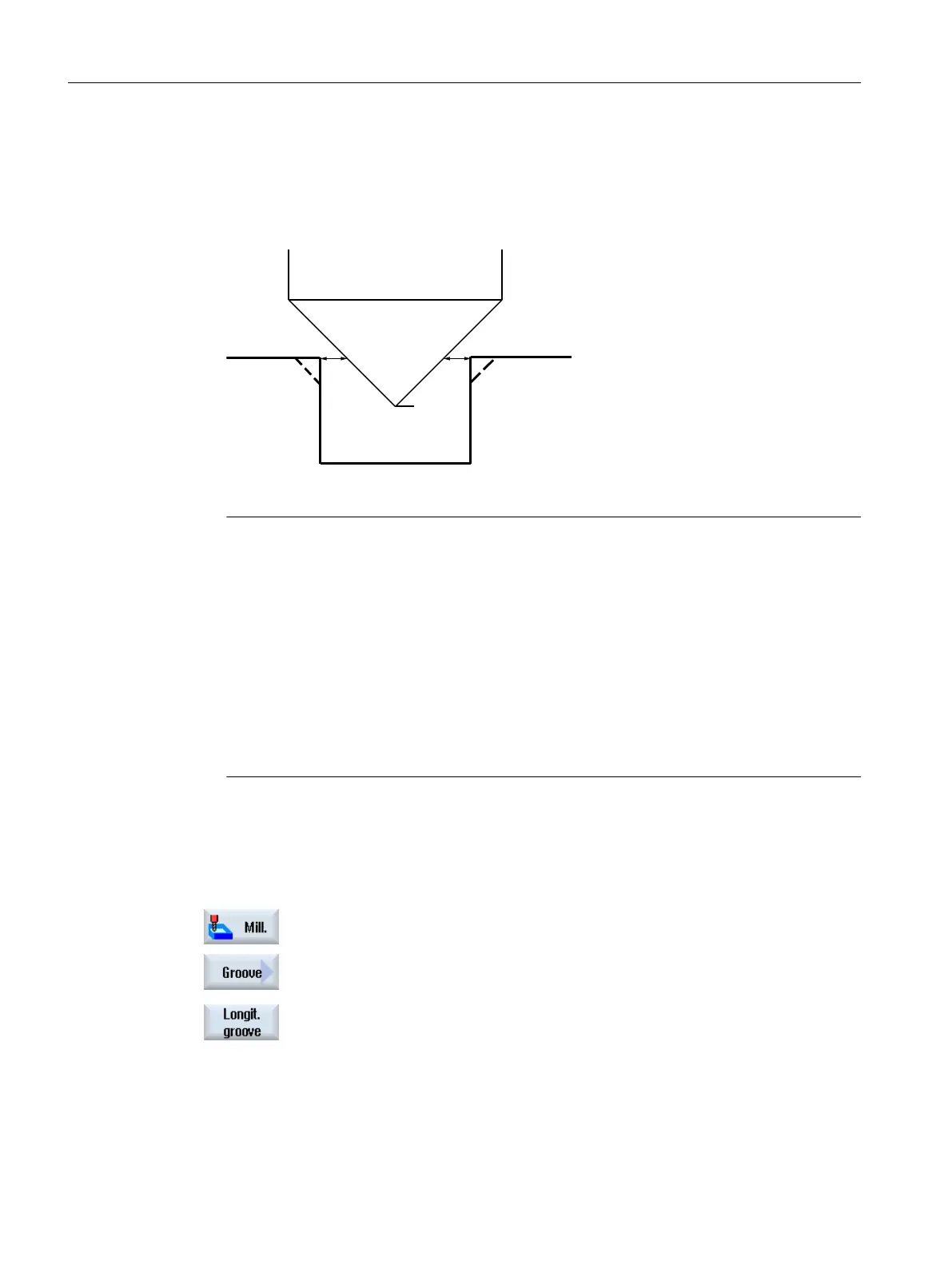

Figure 10-6 Geometries when chamfering inside contours
Note
The following error messages can occur when chamfering inside contours:
● Safety clearance in the program header too large
This error message appears when chamfering would, in principle, be possible with the
parameters entered for FS and ZFS, but the safety clearance then could not be
maintained.
● Immersion depth too large
This error message appears when chamfering would be possible through the reduction
of the immersion depth ZFS.
● Tool diameter too large
This error message appears when the tool would already damage the edges during
insertion. In this case, the chamfer FS must be reduced.
Procedure
1. The part program or ShopMill program to be processed has been created
and you are in the editor.
2. Press the "Milling" softkey.
3. Press the "Groove" and "Longitudinal groove" softkeys.
The "Longitudinal Groove (SLOT1)" input window opens.
Programming technological functions (cycles)
10.2 Milling
Milling
450 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
