● Tools that are not located in the magazine are displayed without toolholder.

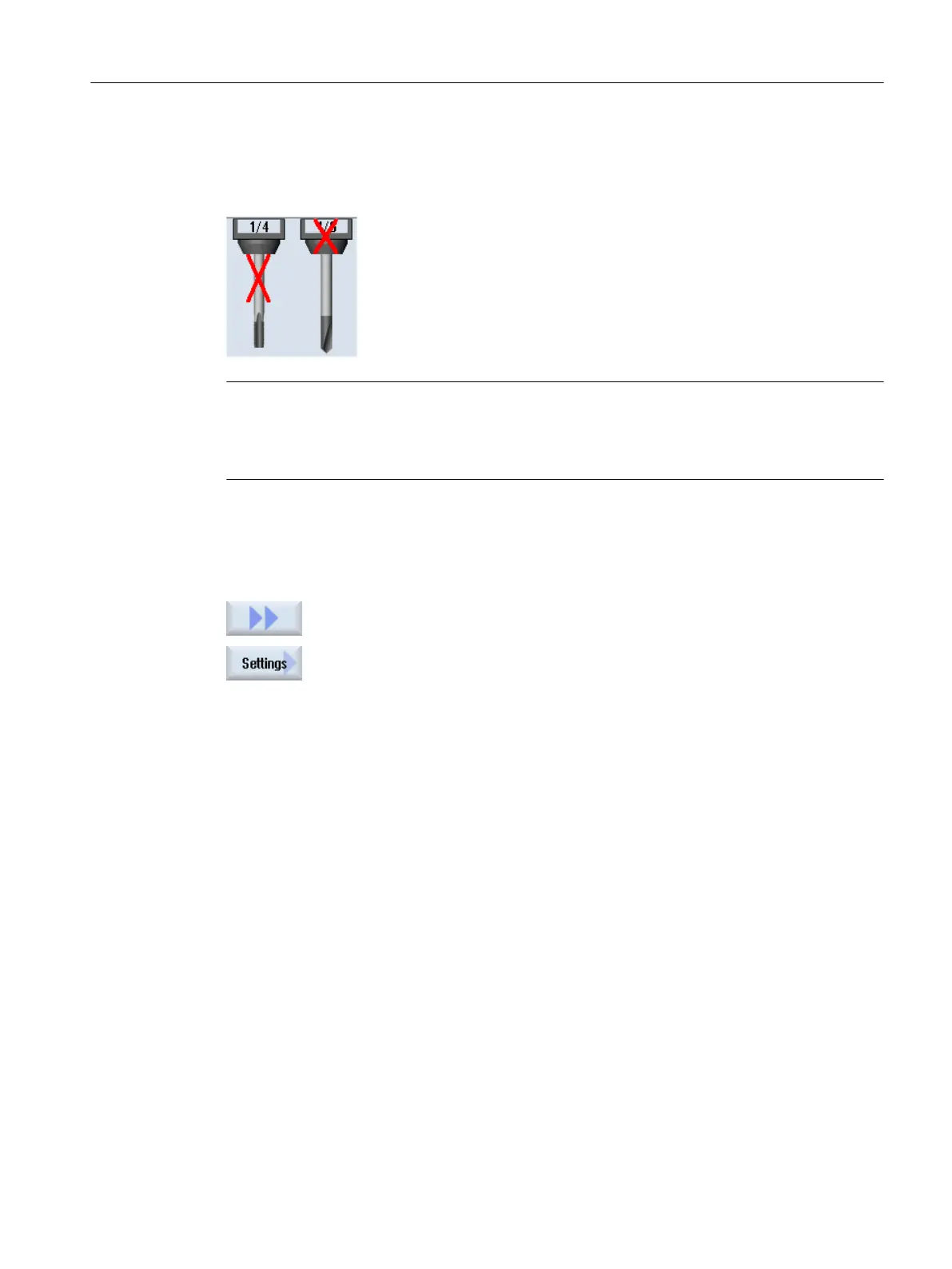

● Disabled tools or magazine locations are marked by means of a red cross:
Note
Measuring tools type 713 / 714
So that the tools "L button" and "star probe" are displayed in the graphic tool display, enter in
the "More data" window the additional Parameter "Boom length" or "External diameter".
Switching the graphical magazine display on/off
1. The tool list or wear or magazine list is opened.
2. Press the "Continue" and "Settings" softkeys.
The "Settings" window appears.
3. Activate the check box "Switch on graphic magazine display" in order to
change into the non-graphic display of the lists.
Tool management
13.11 Graphic display
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 729

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
