References
Information on the configuration of the energy-saving profiles is provided in the following
reference:
System Manual "Ctrl-Energy", SINUMERIK 840D sl / 828D

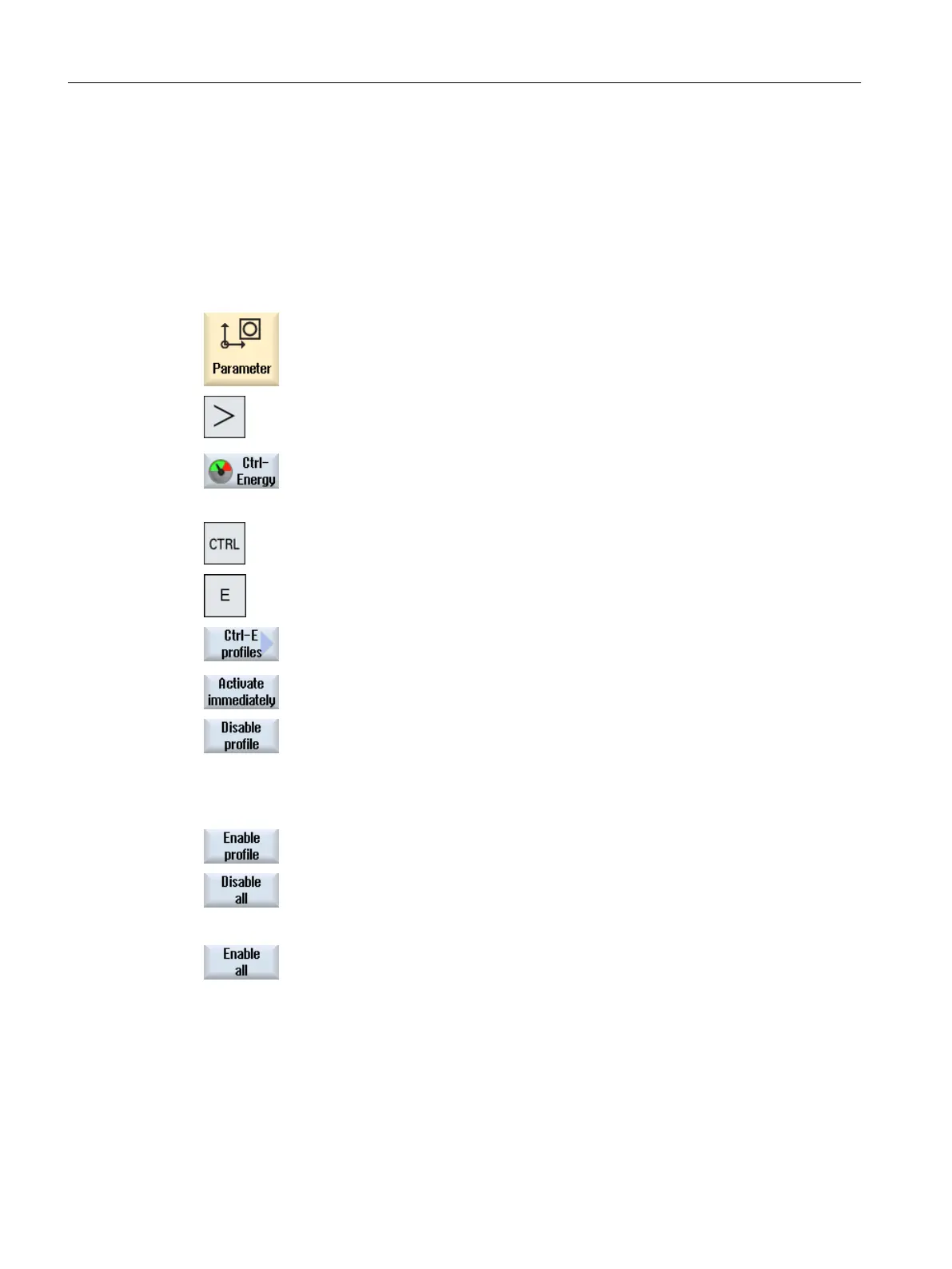

Procedure
1. Select the "Parameter" operating area.
2. Press the menu forward key and then the "Ctrl-Energy" softkey.
- OR -
+
Press the <CTRL> + <E> keys.
3. Press the "Ctrl-E profile" softkey.
The "Ctrl-E Profile" window opens.
4. Position the cursor on the required energy-saving profile and press the
"Activate immediately" softkey if you wish to directly activate this state.
5. Position the cursor on the required energy-saving profile and press the
"Disable profile" softkey if you wish to disable this state.
The profile is inhibited and does not become active. The energy-saving
profile is grayed-out and displayed without any time information.
The labeling of the "Disable profile" softkey changes to "Enable profile".
Press the "Enable profile" softkey in order to withdraw the energy-saving
profile disable.
5. Press the "Disable all" softkey in order to disable all states.
All the profiles are disabled and cannot become active.
The labeling of the "Disable all" softkey changes to "Enable all".
6. Press the "Enable all" softkey to withdraw the disable for all profiles.
Ctrl-Energy
19.3 Ctrl-E profiles
Milling
880 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
