4.4 Cable distributor (distributor box)
4-58
© Siemens AG, 2006. All rights reserved
SINUMERIK 840D Configuring Manual NCU (PHD) – 03.06 Edition

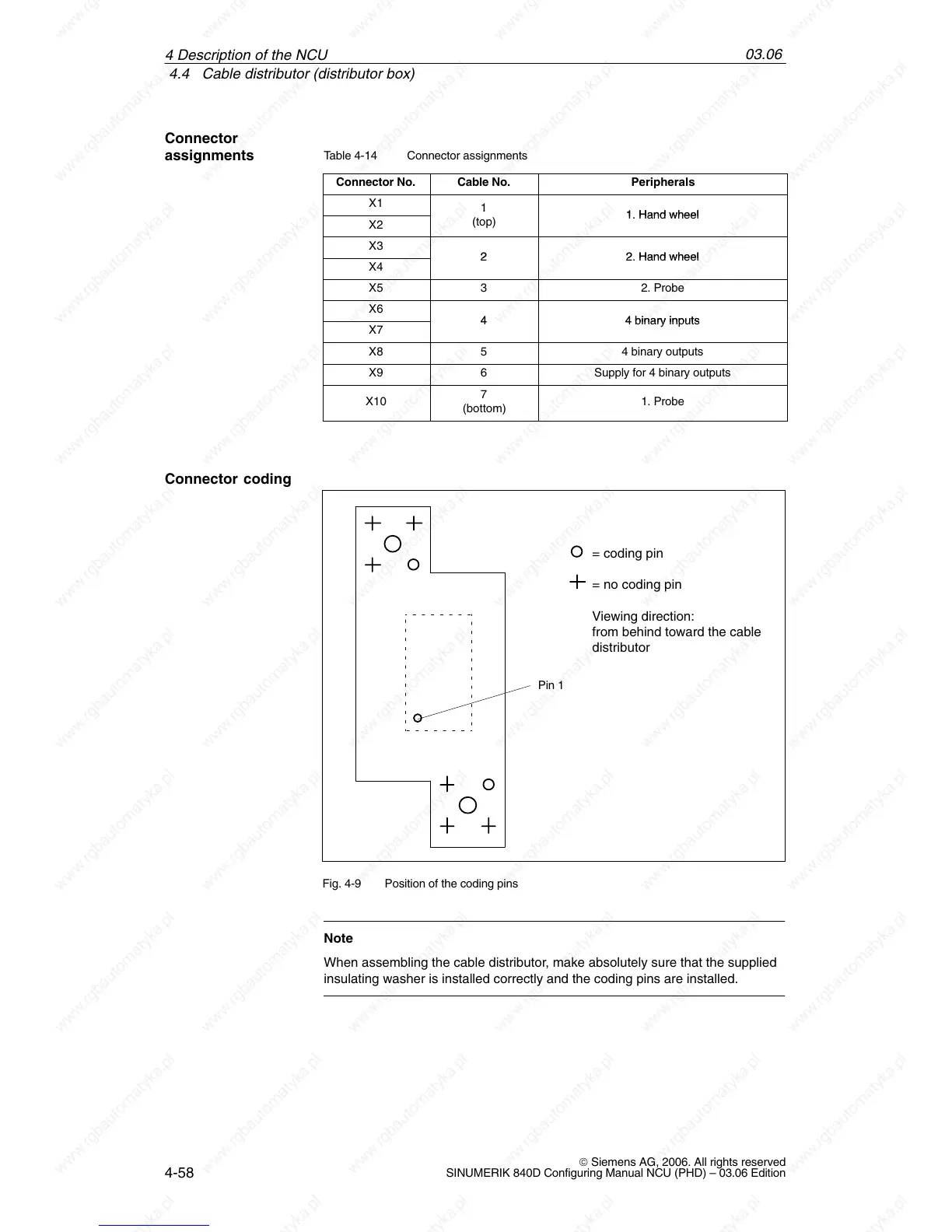

Table 4-14 Connector assignments
Connector No.
Cable No. Peripherals
X1
1
1 Hand wheel
X2
1
(top)
1
.
H
an
d
w
h
ee
l
X3
2
2 Hand wheel
X4
2
2
.
H
an
d
w
h
ee
l
X5 3 2. Probe
X6
4
4 binary inputs
X7
4
4
bi
nary
i
nputs
X8 5 4 binary outputs
X9 6 Supply for 4 binary outputs
X10
7
(bottom)
1. Probe
Pin 1
= coding pin
= no coding pin
Viewing direction:
from behind toward the cable
distributor
Fig. 4-9 Position of the coding pins
Note
When assembling the cable distributor, make absolutely sure that the supplied
insulating washer is installed correctly and the coding pins are installed.
