1 Introduction 10.91
1.2.2 Measurement variants for milling machines and machining centres

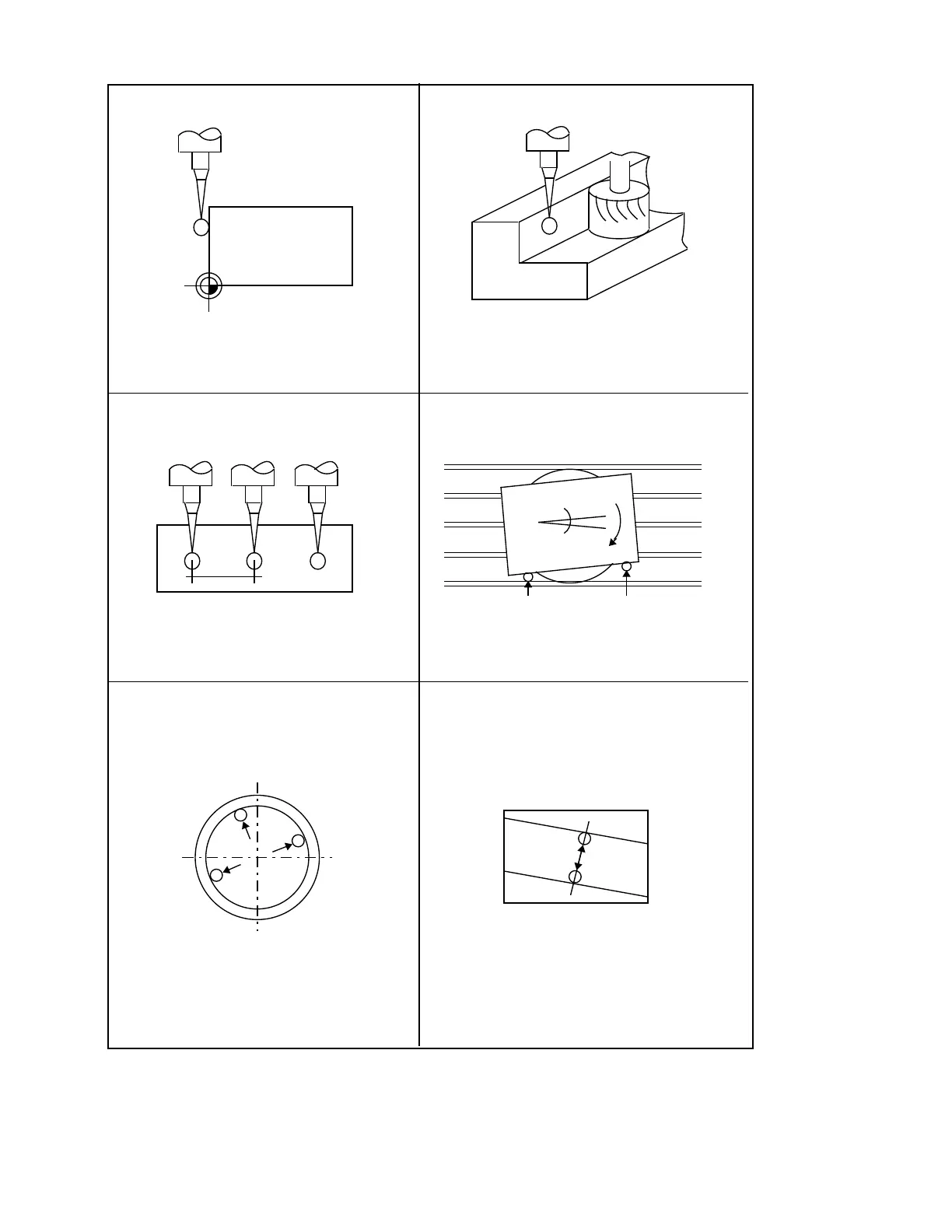

Fig. 1.6 Workpiece measurement
w
Blank gauging 1-point measurement
Result:
Position, deviation
zero offset (G58)
Result:
Actual dimension, deviation,
tool offset
Multi point measurement
paraxial
Angular measurement
Result:
Actual dimension, deviation,
tool offset
Result:
Actual dimension (angle), deviation,
zero offset (G58)
Measurement at random angles
with 3-point measurement:
hole, shaft, circular segment
Measurement at random angles
with 2-point measurement:
slot, web
Result:
Actual dimension (diameter),
deviation, centre point,
tool offset,
zero offset (G58)
Result:
Actual dimension (slot width, web width),
deviation, slot centre, web centre
tool offset,
zero offset (G58)
1–6 © Siemens AG 1990 All Rights Reserved 6FC5197- AB70
SINUMERIK 840/850/880 (BN)
