Siemens SINUMERIK 880 GA2

10.91 2 Defining Parameters
2.12 R30 Number of measuring axis
The definition of R30 can be modified via MD/MDC.
(See machine tool manufacturer's specifications)

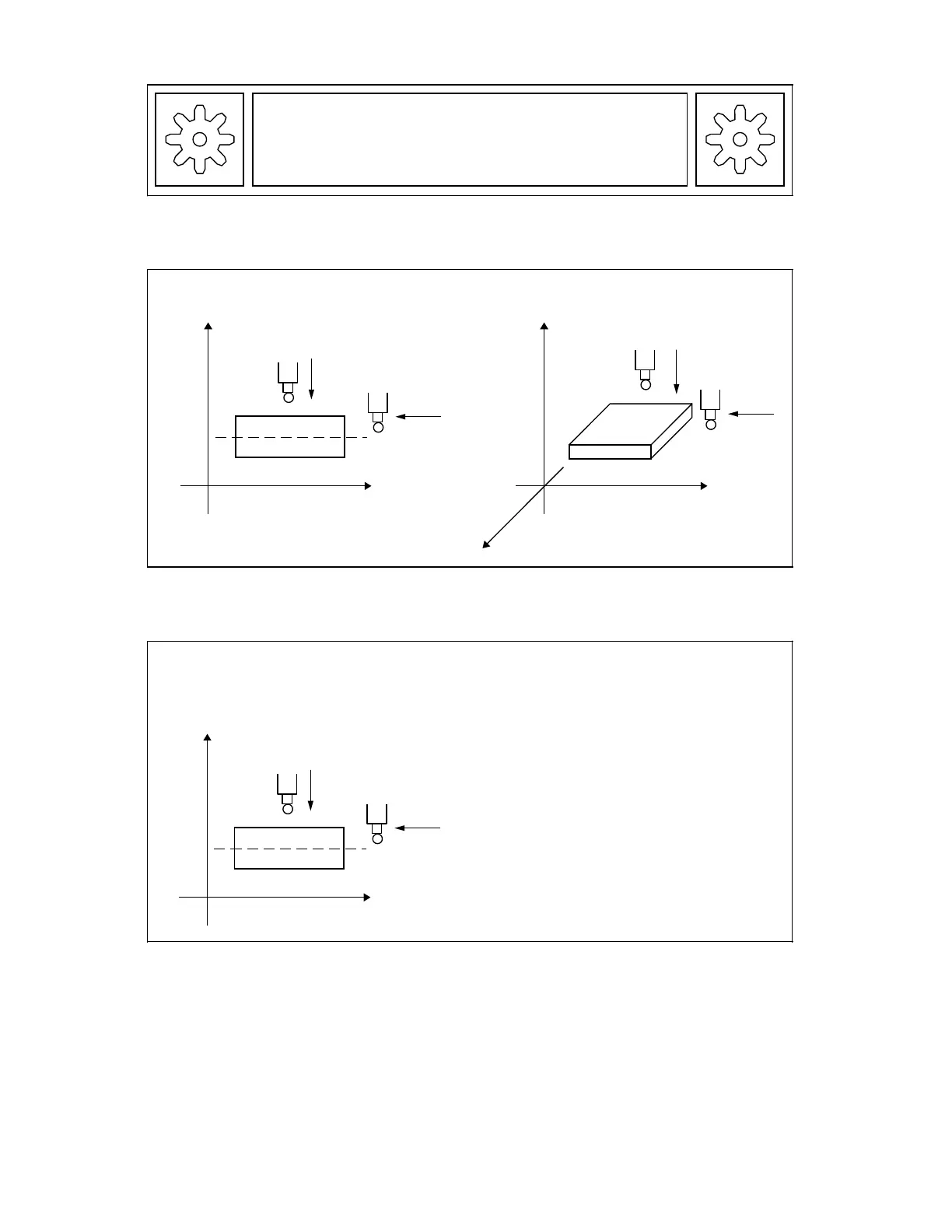

Axis definition via R30 in accordance with DIN 66217:
Z
Y
X
X
Z
T version, G18 plane M version, G17 plane
R30=2
R30=1
R30=2
R30=1
Axis definition via R30 (MDC 7002.1=0, axes exchanged):
X
T version
R30=1
R30=2
Z
1st axis
2nd axis
2.13 R33...R37 Tolerance parameters
See Section 1.7
END OF SECTION
©
