10.91 1 Introduction
1.9 Logging
1.9 Logging
1.9.1 Logging via logging module
The logging module together with an NC control enables measurement results to be logged.
The logging module can be used with all SINUMERIK controls where R parameters are output
area by area.
Power supply to this module is from the connections on the front panel. The bus connector
provided on the module is exclusively used for mechanical fixing in the module carrier.
The module can therefore be operated in the NC subrack of the SINUMERIK control and also
in the external PLC subrack. Individual module holders can also be used. For more details see
Logging Module Description. This description is supplied with each module.

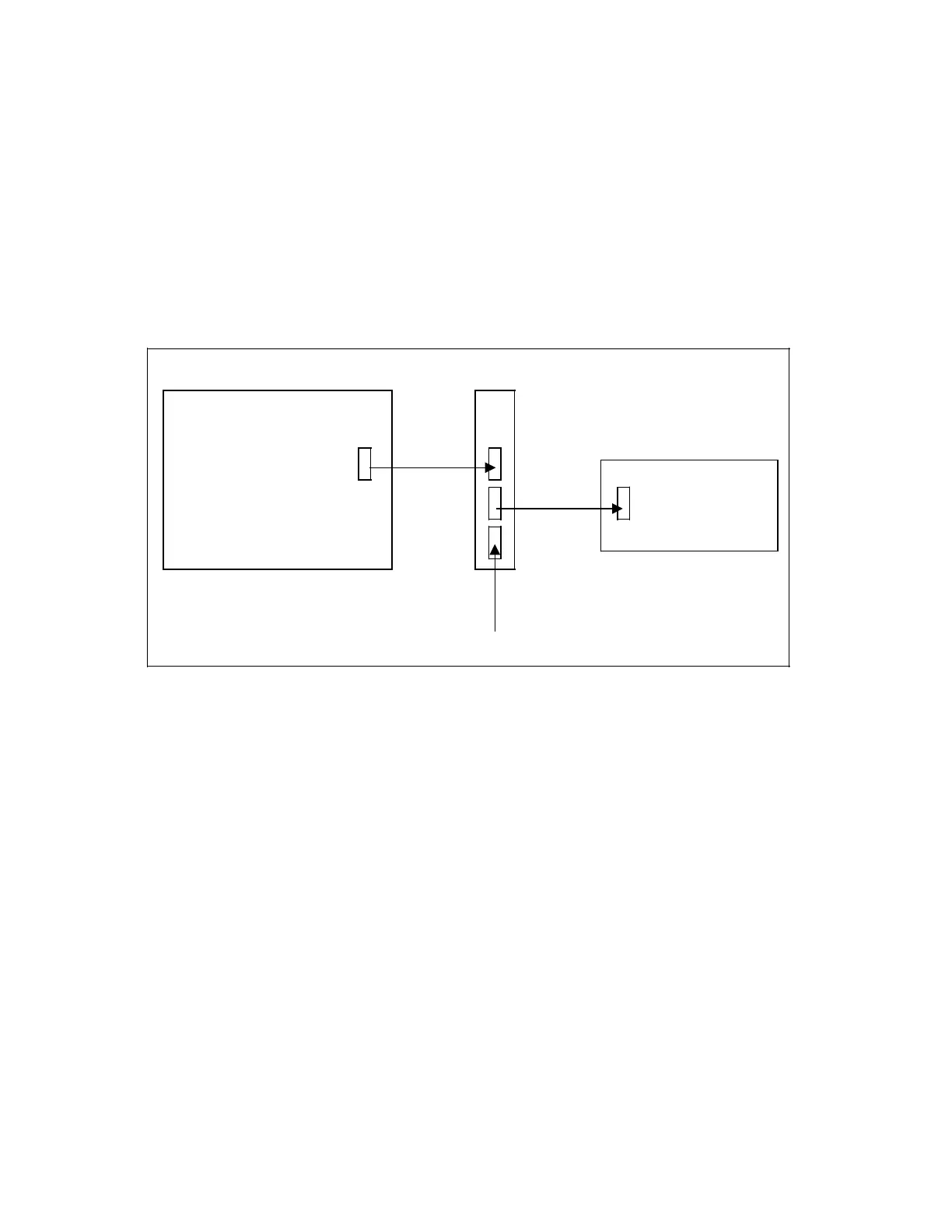

Fig. 1.21 Logging module interface
24 V DC
RS 232 C
(V. 24)
interface
SINUMERIK
Logging module
PT 88 printer
© Siemens AG 1990 All Rights Reserved 6FC5197- AB70 1–27
SINUMERIK 840/850/880 (BN)
