01.93 7 Measuring in JOG Mode (SINUMERIK 880/880 GA2)
7.2.1 Operating and function sequence
7. As soon as the probe gives a signal the traversing axis (measuring axis) is
stopped. The workpiece actual value and the workpiece zero offset are
calculated.
The derived actual value is displayed (actual value).
The dialog text MEASURING ACTIVE is deleted and the STORE softkey is
enabled.

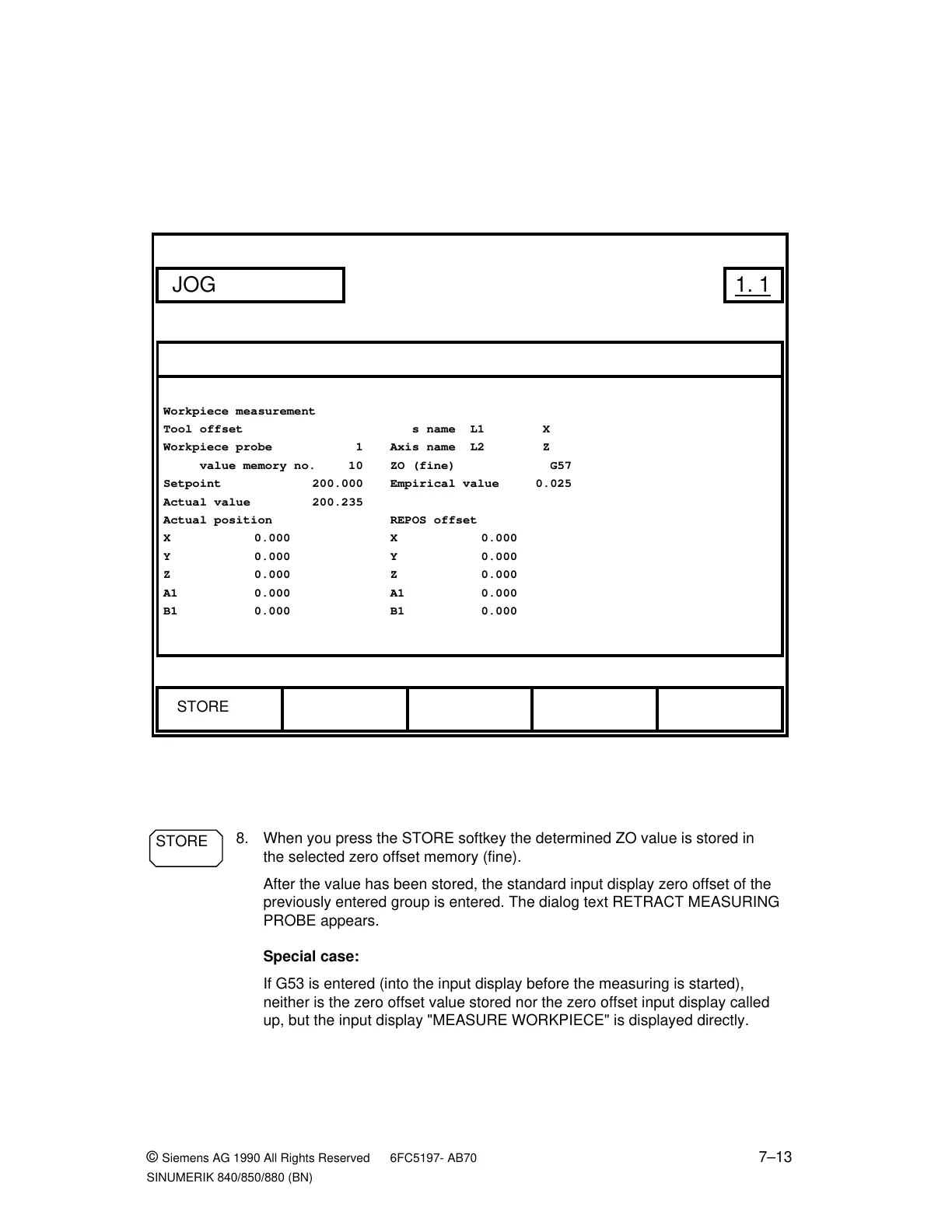

Display after workpiece probe has been retracted
