10.91 4 Measuring Cycles for Turning Machines
4.1 L972/L982 Tool measurement
With tool types 35 and 37 only the length L2 and with tool types 26, 28, 36 and 38 only the
length L1 is measured.
You select together with the cutter radius whether the measuring point is located on the tool
centre (R=0) or displaced from the tool centre by the value R.

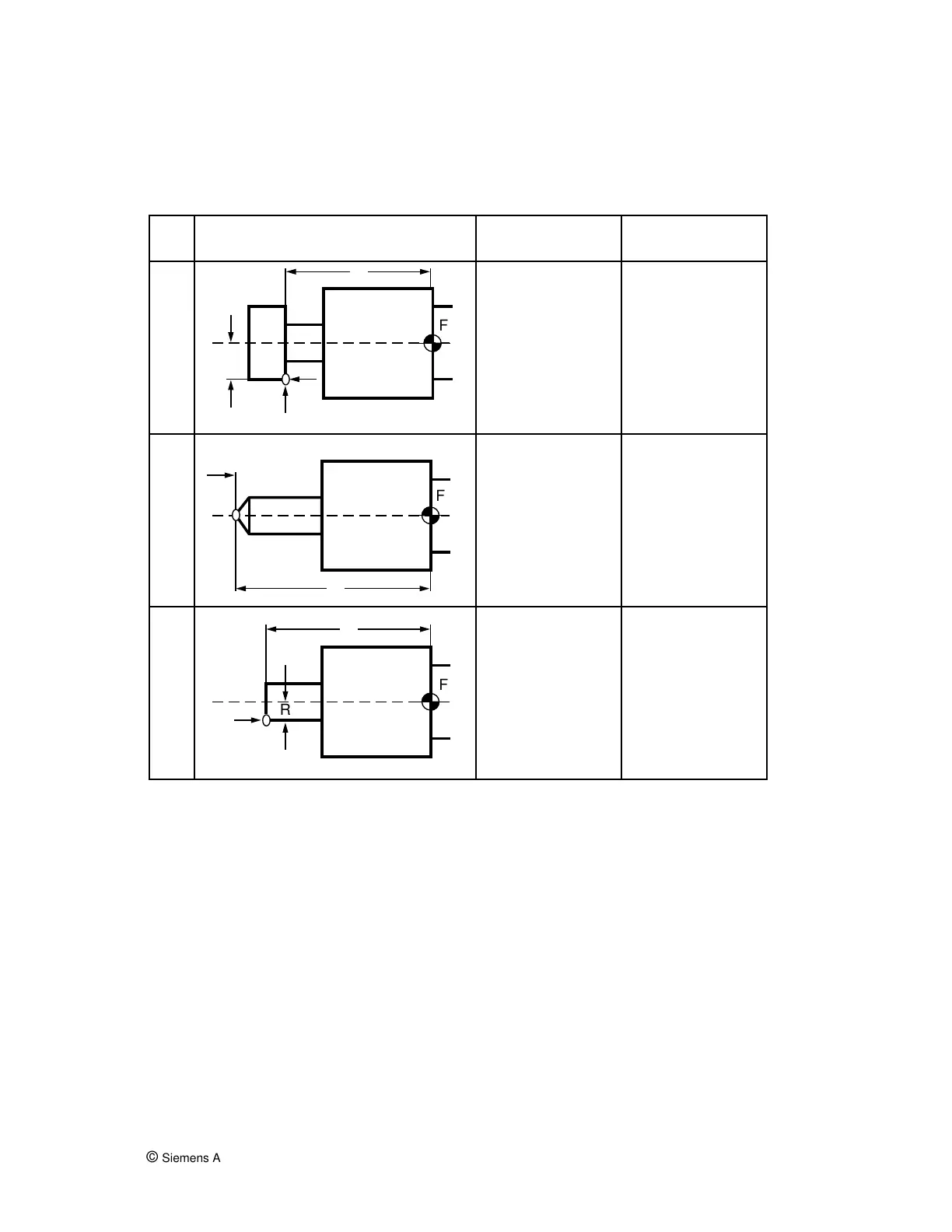

Axial tools
Axial tool form
Tool
type
Tool geometry
dimensions
Dimensions
compensated
35
37
37
L1=0
L2, R
L2
L2
L1=0
L2,
R=0
L1=0
L2, R
L2
R
Measuring point
L2
Measuring point
L2
Measuring
point
L2
a a a
a a a
a a a
a a a
a a a
R
F
F
F
