Transport, storage and packing
8 9229 0025 176 0A
2019-08-05
Transportation to the
mounting location
• Remove all tensioning belts and bits of fastening wood.
• Remove the supplementary equipment and store safely in the packaging for
later installation.
1) Diameter of the hook cross-section max. 19 mm
2) Opening width of the hook min. 18 mm

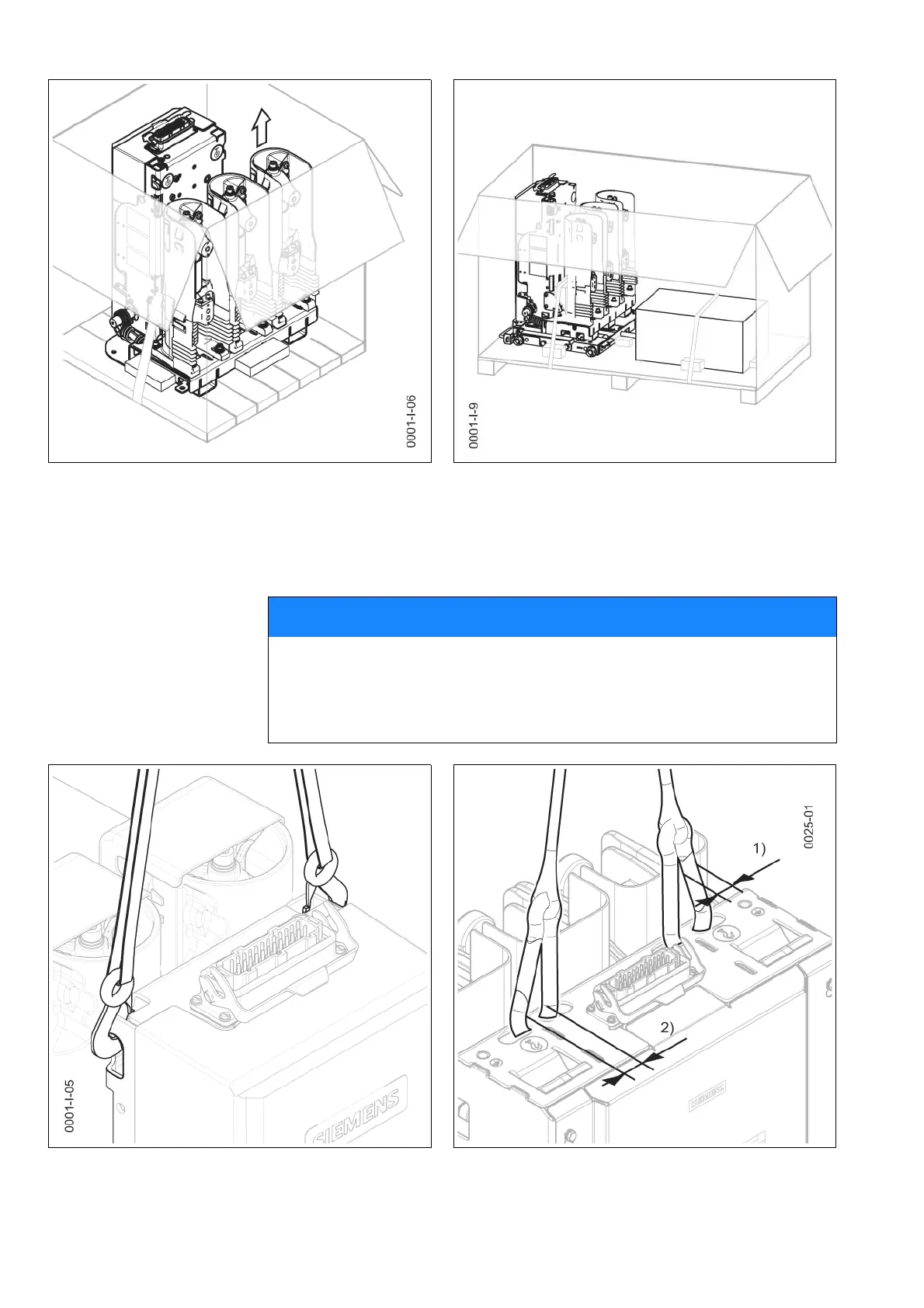

Fig. 3 Example - unpacking the fixed mounting ver-
sion
Fig. 4 Example - unpacking version with withdrawa-
ble part
Note
Shifted centre of gravity!
If the vacuum circuit-breakers are lifted with contact arms mounted, the centre of
gravity will be towards the contact arms.
The unit is transported in an inclined position.
Fig. 5 Transporting by crane hook Fig. 6 Transporting by crane eyes
