Assembly and Installation Information
SIPART DR22/DR24
C79000-M7474-C38-01
16
5 Before Installation
5.1 Switching mains voltage 230 V~/115 V~
The 6DR2210-5 and 6DR2410-5 devices can be switched from 230 V to 115 V.
Switching is carried out on the rear side with a suitable screwdriver (power supply
selector switch).
Factory setting: 230V
Figure 2
Legend:
1
ground conductor – contact
spring
2slot6
3slot5
4 slot 1 (main circuit board)
5slot2
6slot3
7 slot 4 (SES: RS 232/
RS485, PROFIBUS DP)
8 grounding screw
9 DIN rail (supplied with the
connecting relay)
10 power supply selector switch
11 power plug
12 power unit
1
12
11
10
9
8
3
7 6 5 4
2

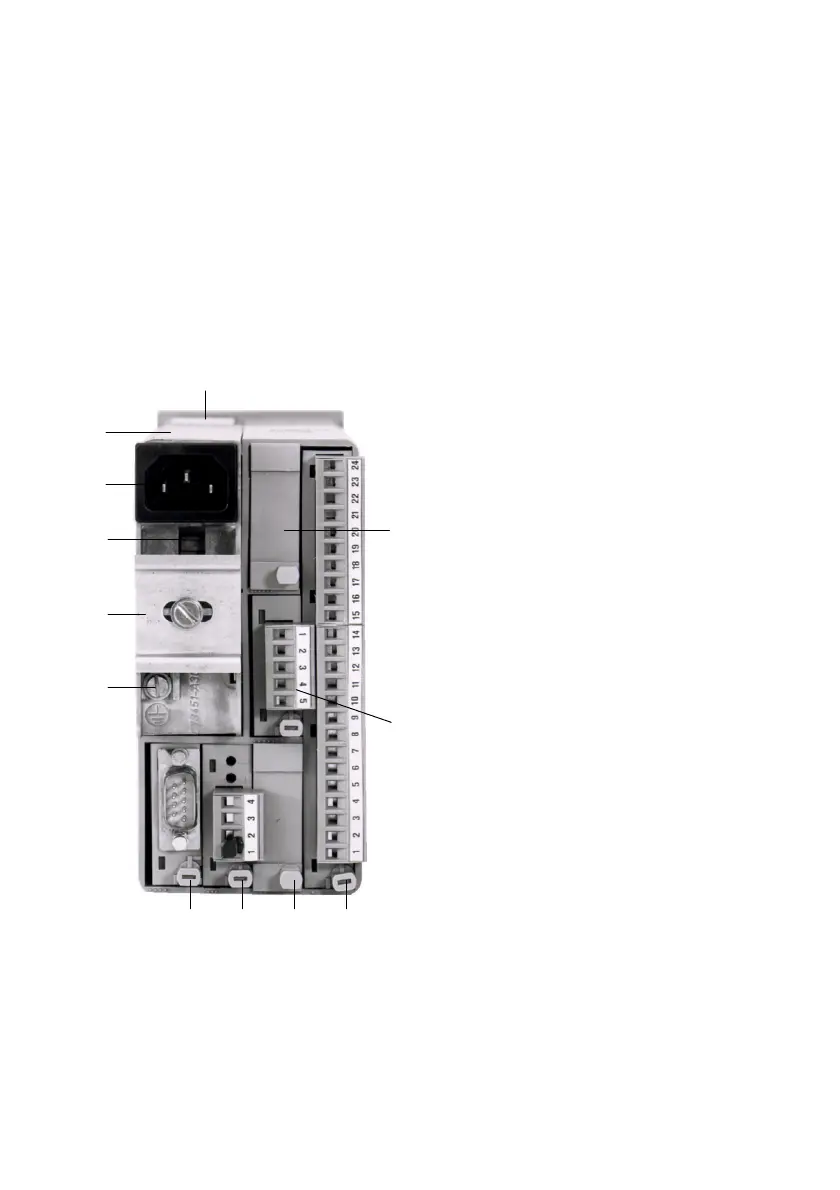

Figure 3 Rear view, slots and connection plugs
