2 Installation
2.2 Electrical Connection
2.2.3 Wiring of the Option Modules
SIP ART DR24 6DR2410
C79000-G7476-C153-03
121
D 6DR2801-8E 4BA 24 V + 2BE
BA9 to BA12 and BE5 to BE6 in slot 5, Set oP5 to 4bA in hdEF
BA13 to BA16 and BE10 to BE11 in slot 6, Set oP6 to 4bA in hdEF
6/6 BE11
5/5 BA12
5/4 BA11
5/3 BA10
5/2 BA9
6/5 BA16
6/4 BA15
6/3 BA14
6/2 BA13
5V
24V
I
6DR2801-8E
≥19 V
≤30 mA
5V
24V
5/6 BE6
6/1 BE10
5/1 BE5

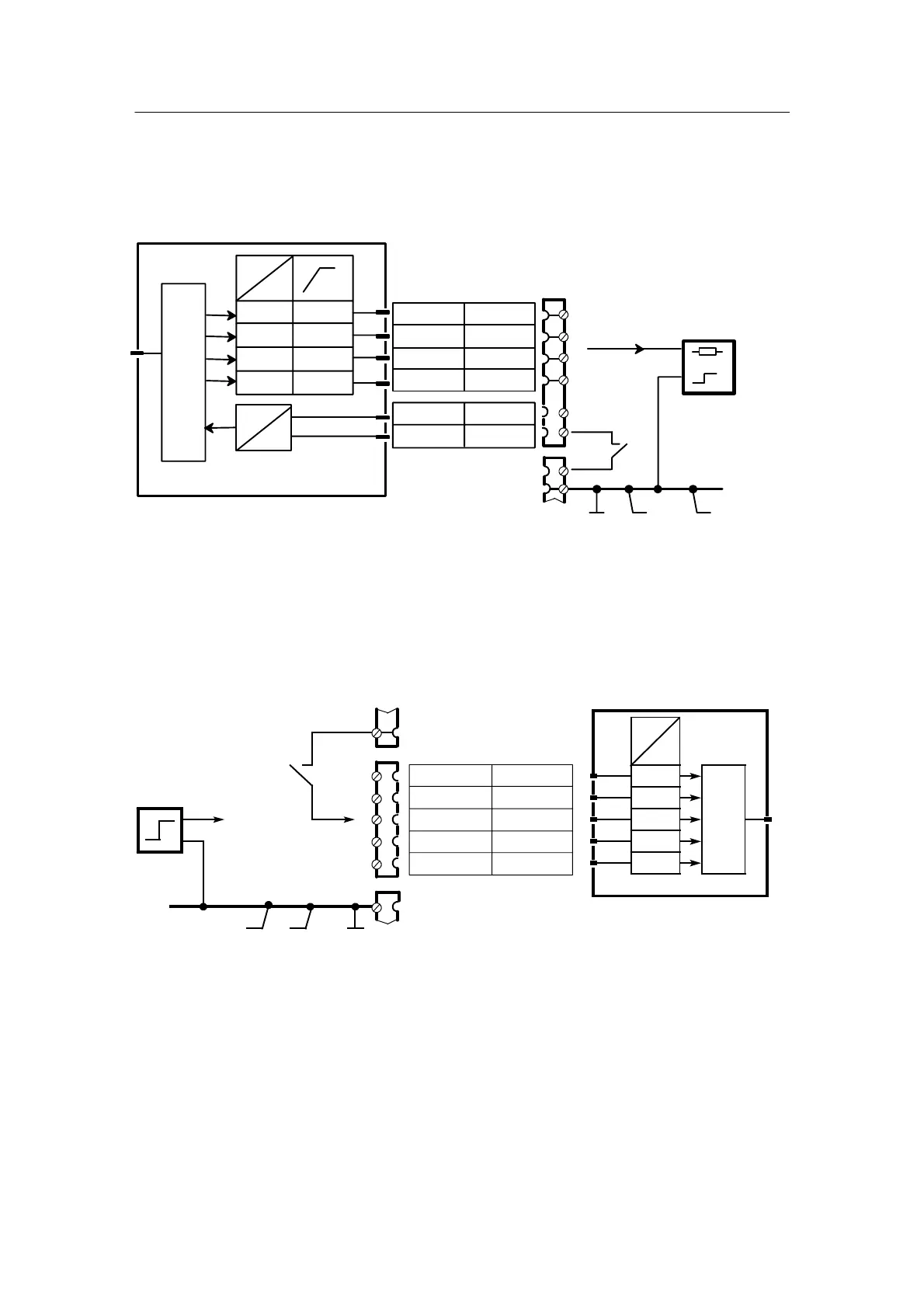

Figure 2-22 Wiring of 4BA (24 V) module 6DR2801-8E
D 6DR2801-8C 5BE
BE5 to BE9 in slot 5, Set oP5 to 5bE in hdEF
BE10toBE14inslot6, SetoP6to5bEinhdEF
1/1
L+
1/3
M
<4.5 V
>13 V
or
5/5 BE9
5/4 BE8
5/3 BE7
5/2 BE6
5/1 BE5
6/5 BE14
6/4 BE13
6/3 BE12
6/2 BE11
6/1 BE10
5V
24V
Figure 2-23 Wiring of 5BE module 6DR2801-8C
