Clamp the free part of the cable shielding underneath the cable clamp
next to the connector on the shield cap.
Next, plug the complete clamp into the retaining clips on the rear panel.

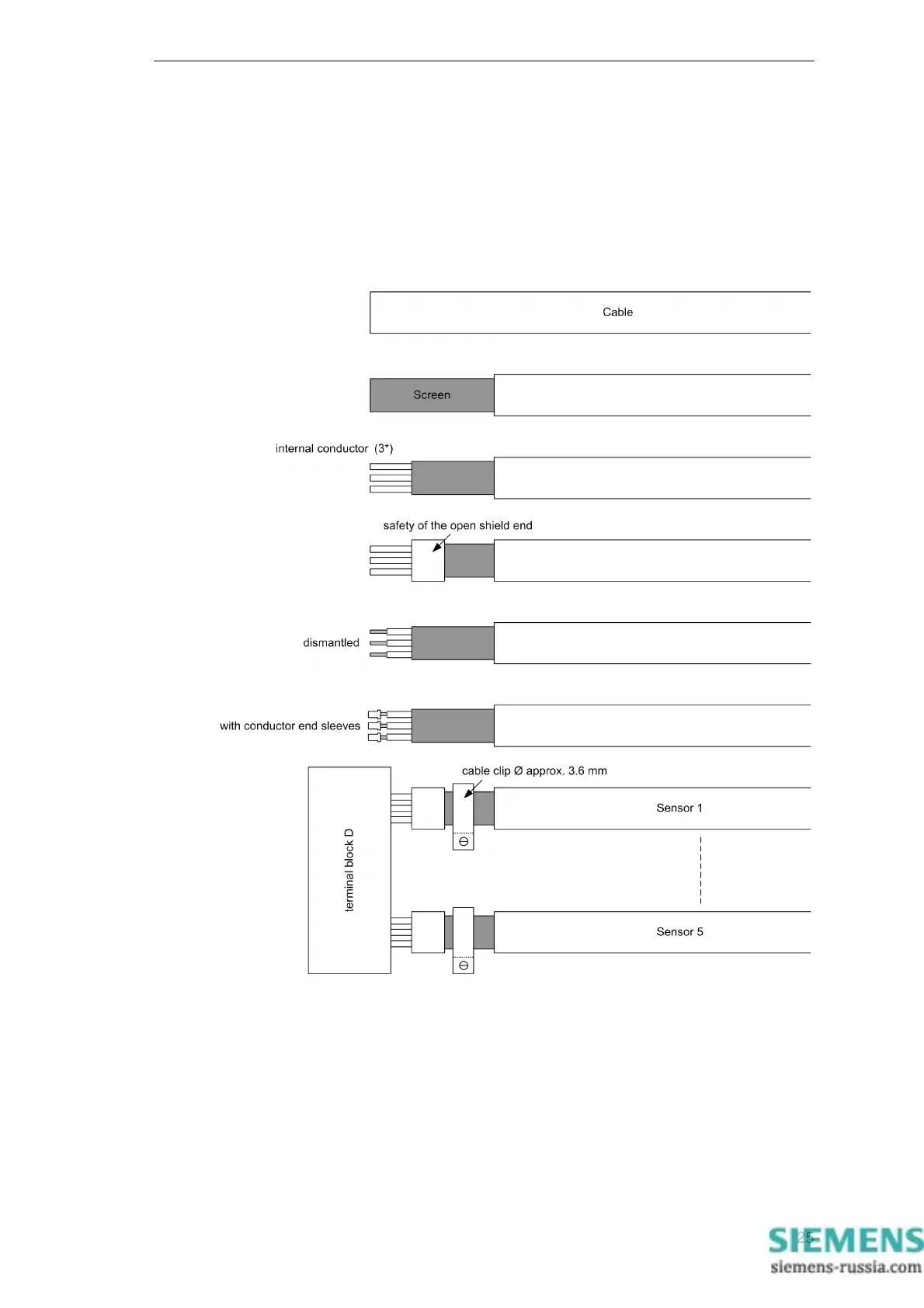

Figure 6 Connection of cables
