46 SIPROTEC 7SJ81/7SK81 V4.70, Product Information
E50417-K1150-C462-A2, Edition 02.2012

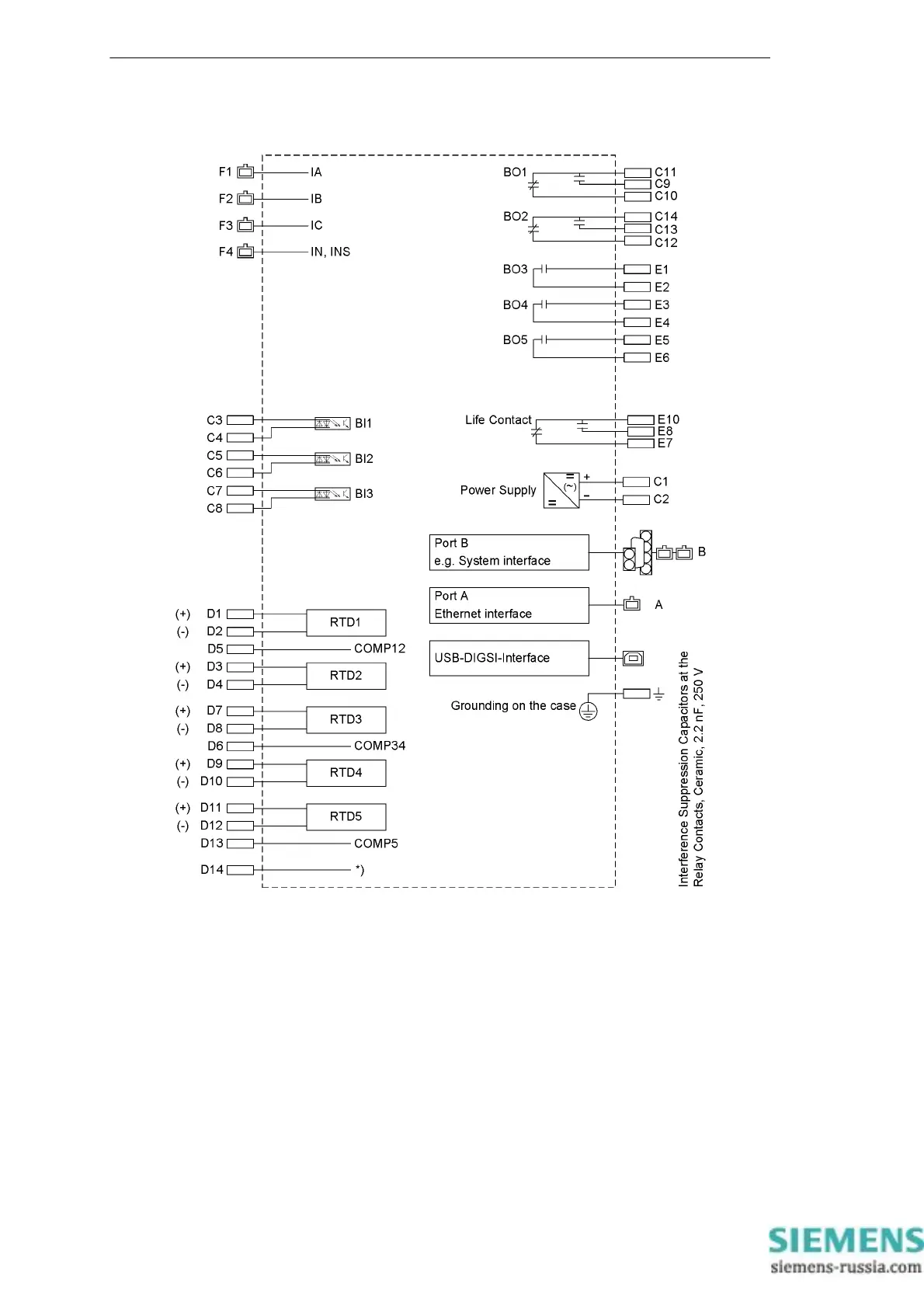

Figure 18 General diagram for 7SK815
*) The shielding of the connecting cable is connected directly to the shield
cap.
