26 SIPROTEC 7SJ81/7SK81 V4.70, Product Information
E50417-K1150-C462-A2, Edition 02.2012

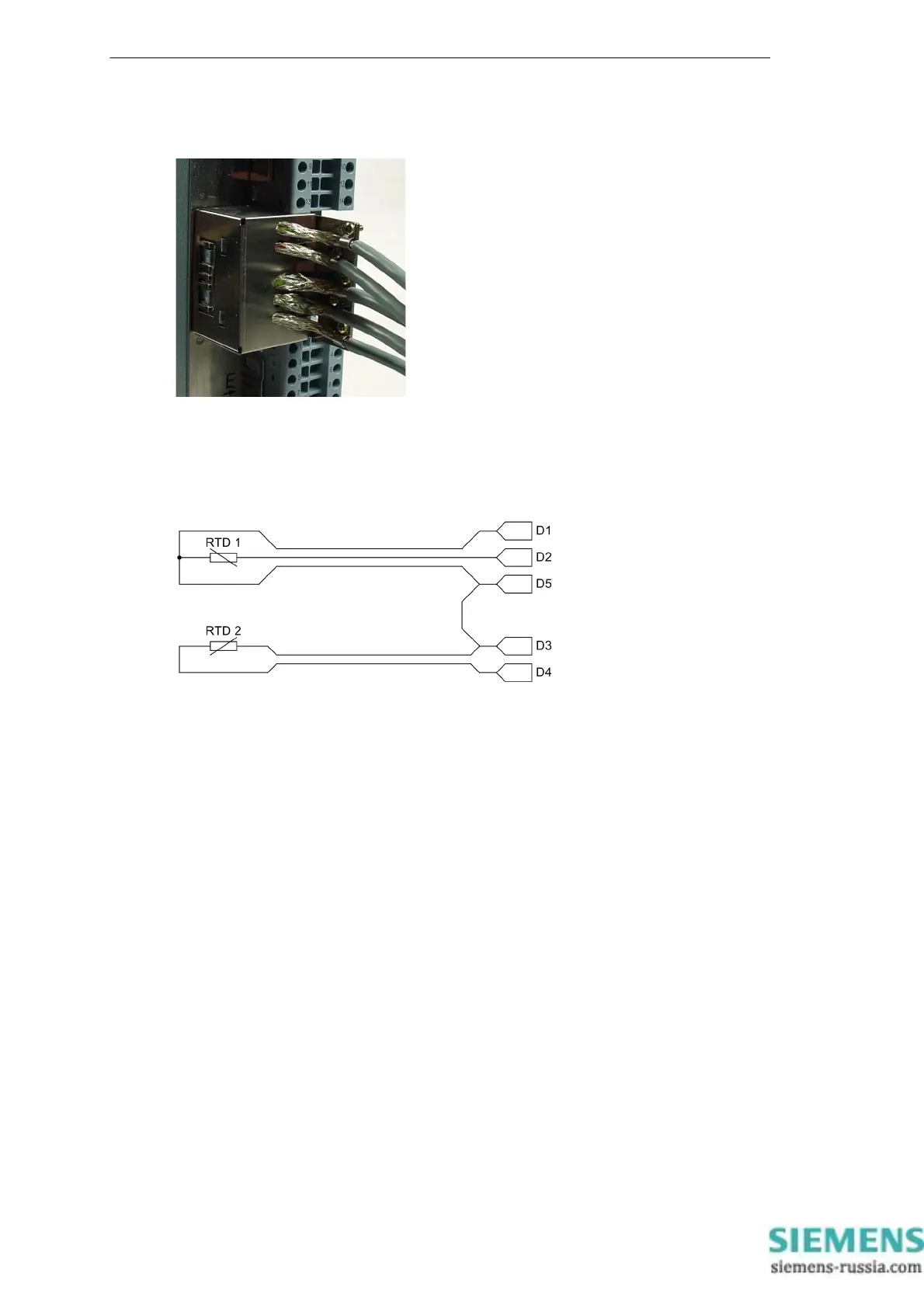

Figure 7 Terminal block “D” with cap
Figure 8 Example: Connection of temperature sensor RTD 1 (3-wire
connection) and RTD 2 (2-wire connection) from clip D1 to D5
When using 2-wire connections, short-circuit links must be used, e.g. for
RTD 2 between D3 and D5.
