Connections to Ethernet
Two different connection modes per IEEE 802.3 are available:
 100Base-T (10/100 TX)
Electrical: RJ45 socket connector
 100Base-FL
Optical: Duplex-LC with optical connectors
Select only one of these facilities, you cannot use both at the same time.
The Ethernet interface on port A is only available in the version RJ45.

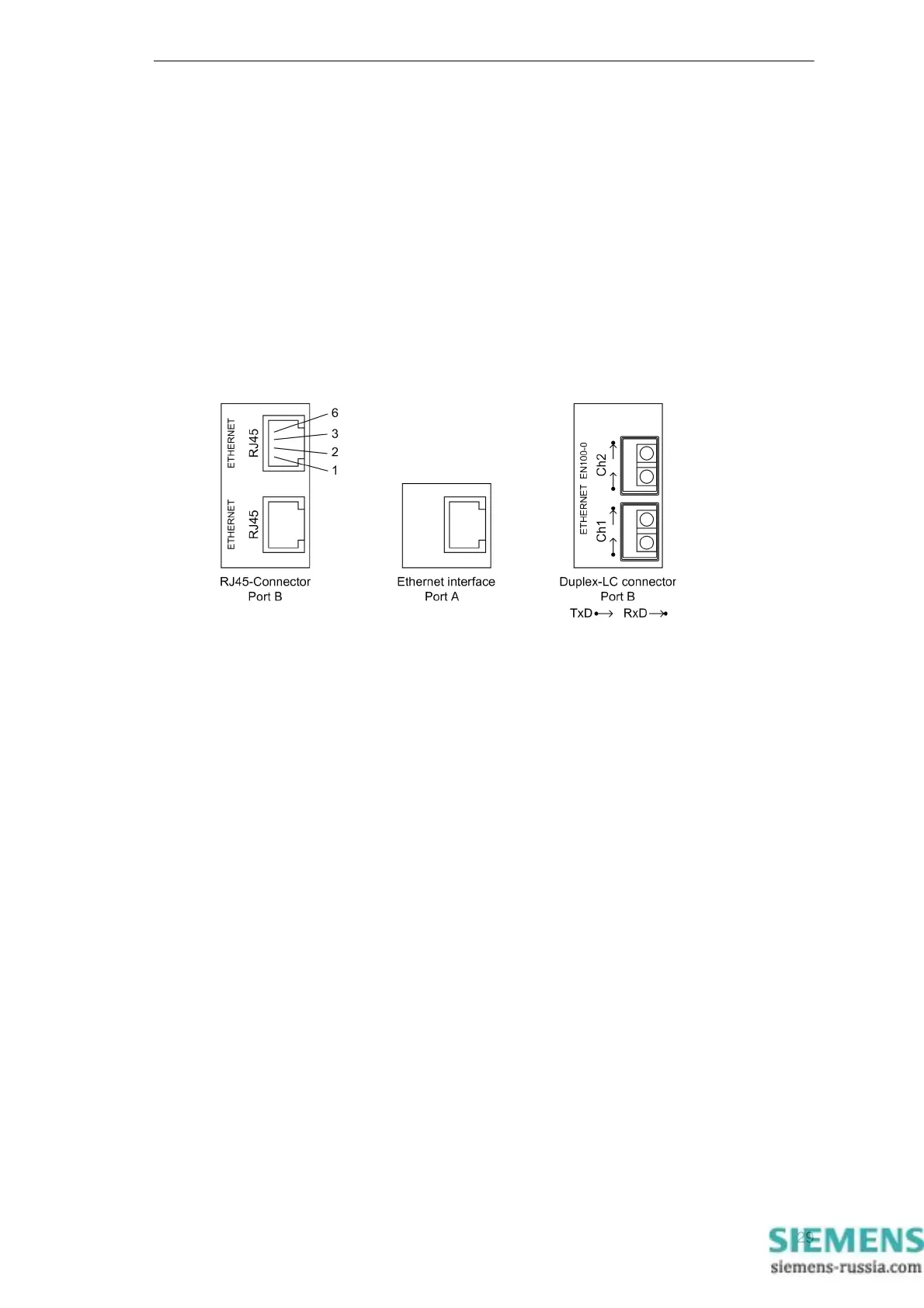

Figure 11 Ethernet connection – examples
For 100Base-T
Connector Type: RJ45 plug connector as per IEEE 802.3
Cables: CAT 5 (shielded twisted-pair)
For 100Base-FL
Fiber-optic plug type: Duplex-LC
Applicable fiber-type: multimode
G50 µm/125 µm
G62.5µm/125µm
Wave length: λ = approx. 1300 nm
Permissible bending radius: for indoor cables r
min
= 5 cm (2.0 in)
for outdoor cables r
min
= 20 cm (8.0 in)
