2.4 Time Overcurrent Protection for Phase and Residual Currents
167
7UT613/63x Manual
C53000-G1176-C160-2
Table 2-7 Preferred values of standardized currents for user-defined trip characteristics
The default setting of current values is ∞. They are, therefore, not enabled — and no
pickup or tripping of these protective functions will occur.
For specification of a tripping characteristic please note the following:
• The value pairs are to be indicated in continuous order. You may also enter less
than 20 value pairs. In most cases, 10 value pairs would be sufficient to be able to
define an exact characteristic. A value pair which will not be used, has to be made
invalid by entering ∞ for the threshold! Please ensure that a clear and steady char-
acteristic is formed by the value pairs.
• For currents select the values from the above table and add the corresponding time
values. Deviating values I/Ip are rounded to the next adjacent value. This, however,
will not be indicated.
• Currents smaller than the current value of the smallest characteristic point do not
lead to a prolongation of the tripping time. The pickup characteristic (see Figure
2-76, right side) goes parallel to the current axis, up to the smallest characteristic
point.
• Currents greater than the current value of the largest characteristic point do not lead
to a reduction of the tripping time. The pickup characteristic (see Figure 2-76, right
side) goes parallel to the current axis, beginning with the largest characteristic point.

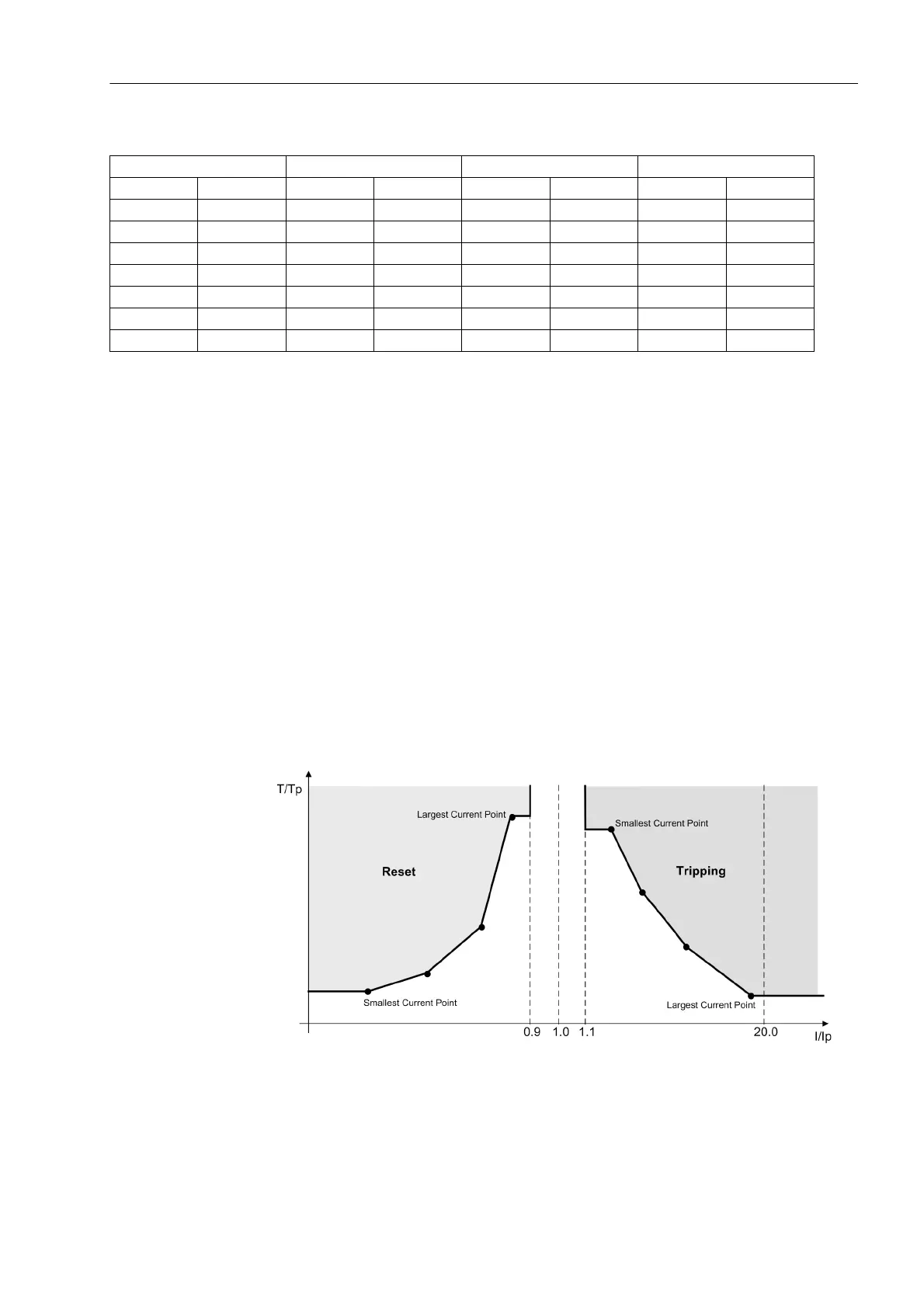

Figure 2-76 User-specified characteristic — example
I/I
p
= 1 to 1.94 I/I
p
= 2 to 4.75 I/I
p
= 5 to 7.75 I/I
p
= 8 to 20
1.00 1.50 2.00 3.50 5.00 6.50 8.00 15.00
1.06 1.56 2.25 3.75 5.25 6.75 9.00 16.00
1.13 1.63 2.50 4.00 5.50 7.00 10.00 17.00
1.19 1.69 2.75 4.25 5.75 7.25 11.00 18.00
1.25 1.75 3.00 4.50 6.00 7.50 12.00 19.00
1.31 1.81 3.25 4.75 6.25 7.75 13.00 20.00
1.38 1.88 14.00
1.44 1.94
