2.7.17 Link module for two contactors in series
2.7.17.1 Description
The link module for 2 contactors in series is a module used to connect two contactors in
series. It is used in Safety applications, for example, where two switching points located in
series are required.
The link module for 2 contactors in series is available in the following versions.
Table 2- 55 Versions of the link module
Size Order number
S00 3RA2916-1A
S0 3RA2926-1A
2.7.17.2 Mounting

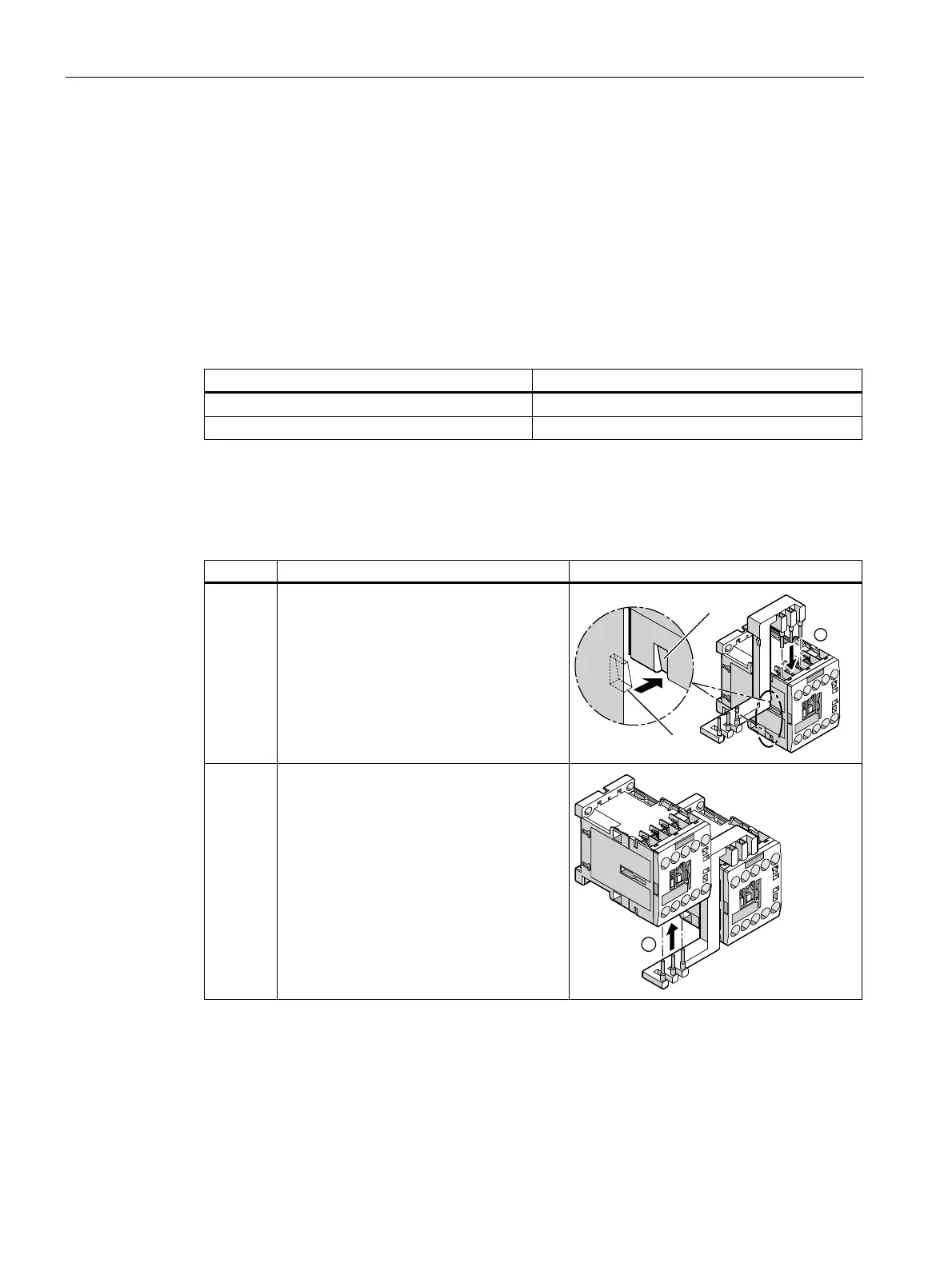

Table 2- 56 Mounting the link module for 2 contactors in series (size S00)
Step Operating instruction Image
1 Insert the pins of the link module into the
contactor's terminal openings from above
until they are securely in position. Make
sure that the wedge (a) engages in the
groove (b) provided on the contactor for this
purpose.

D
E
2 Attach the contactor onto the link module's
pins from above.

