Dimension drawings
10.9 SIWAREX WL230 SB-S CA
SIWAREX WL200
76 Operating Instructions, 07/2016, A5E02199611B-03
10.9
SIWAREX WL230 SB-S CA

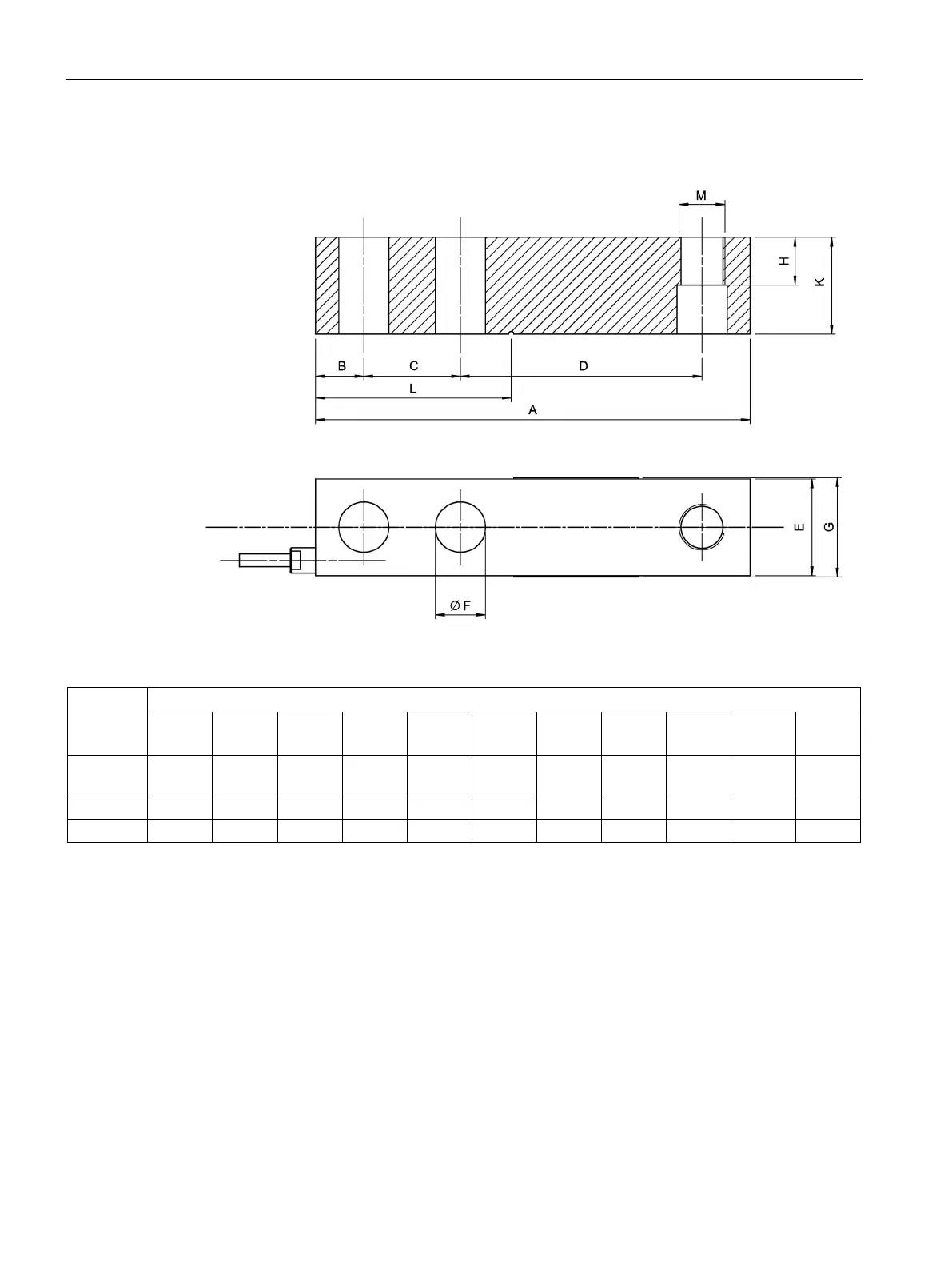

Figure 10-10 Dimensional drawing SIWAREX WL230 SB-S CA
Rated
load
Dimensions in mm
A
B
C
D
E
Ø F
G
H
K
L
M
0.1 t ... 2.0
t
130 15.8 25.4 76.2 31.8 13.5 34 15.8 31.8 54.2 M12
5.0 t
171.5
19.1
38.1
95.3
38.1
19.8
40
18.8
38.1
77.2
M18
10.0 t
222.3
25.4
50.8
120.7
50.8
26
52.4
25.4
50.8
101.6
M24
