Dimension drawings
10.10 SIWAREX WL230 SB-S SA
SIWAREX WL200
Operating Instructions, 07/2016, A5E02199611B-03
77
10.10
SIWAREX WL230 SB-S SA

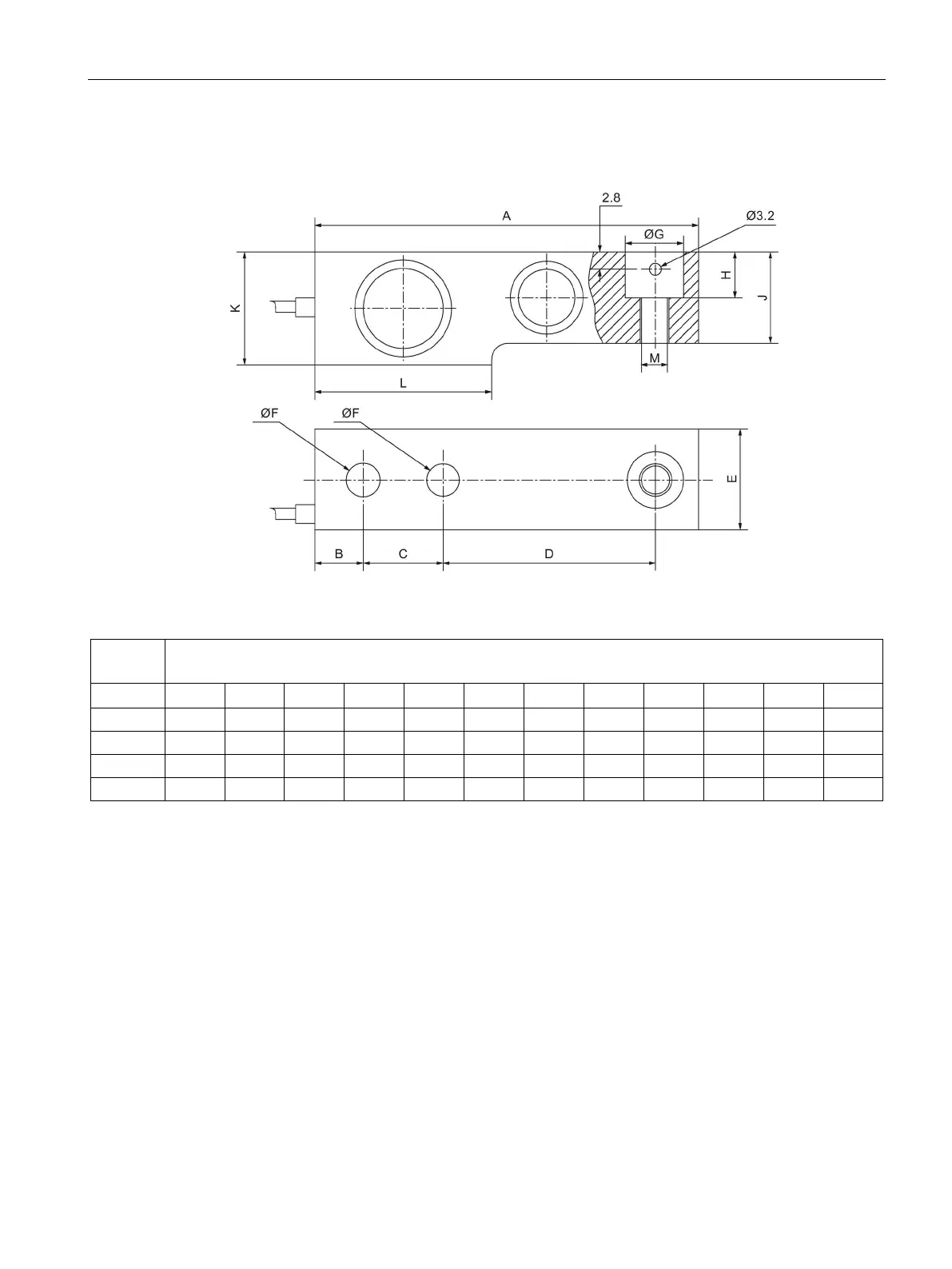

Figure 10-11 SIWAREX WL230 SB-S SA dimension drawing
Rated
load
Dimensions in mm
A
B
C
D
E
F
G
H
I
K
L
M
500 kg
130
16
25,4
76
32
13
20,5
14
26
32
57
M12
1.0 t
130
16
25,4
76
32
13
20,5
14
28
32
57
M12
2.0 t
130
16
25,4
76
32
13
20,5
14
32
36
57
M12
5.0 t
172
19
38,1
95
38
20,5
30,2
20
40
44
76
M20
