Reconstructing axial images
Image reconstruction is performed in recon jobs. Every scan comes
with at least one default recon job. You can create additional recon
jobs to reconstruct additional series, if necessary.

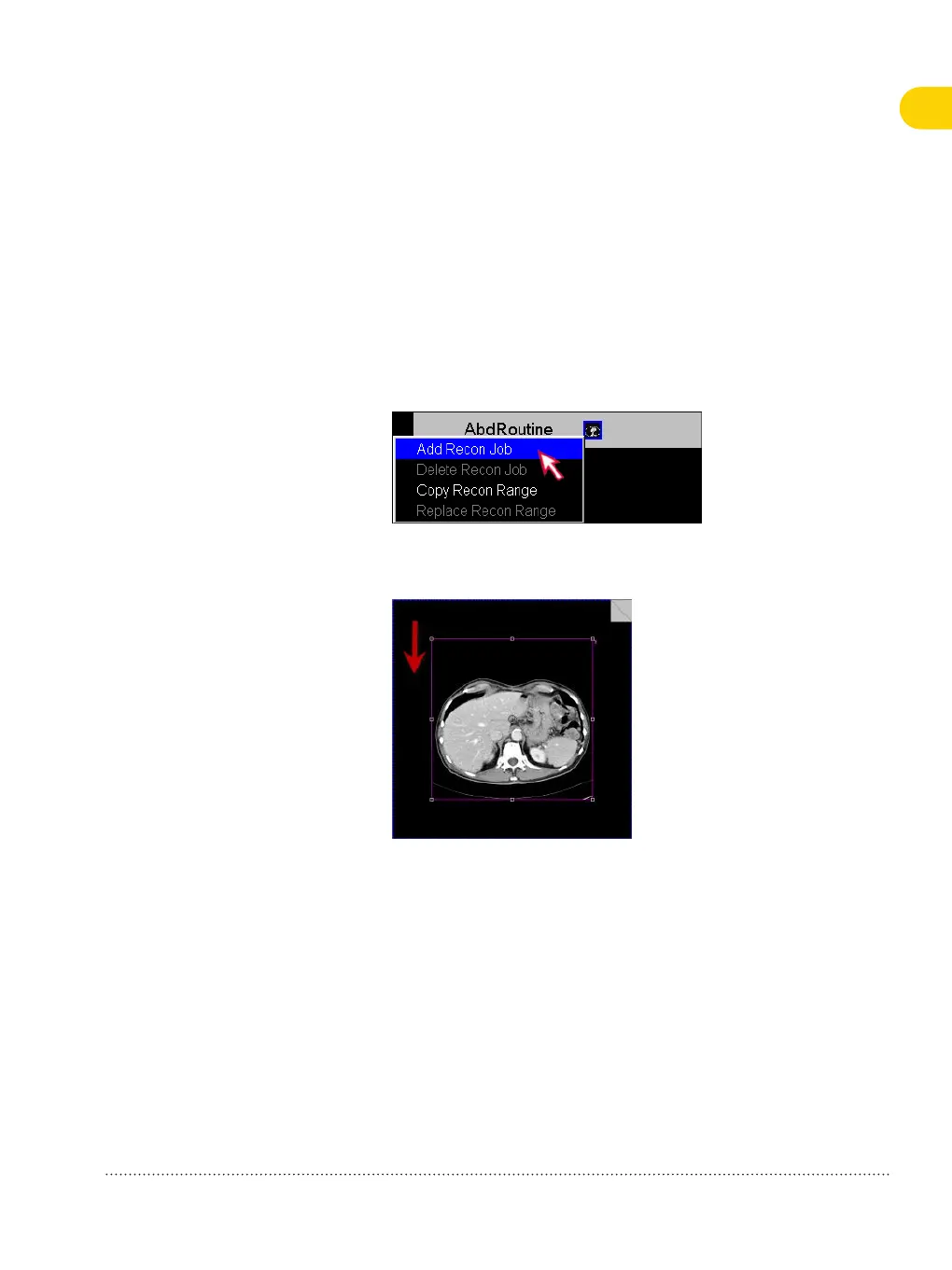

1 In Chronicle, select the performed scan step (for example,
AbdRoutine), right-click a recon icon and choose Add Recon Job.
2 In the tomo segment, place the mouse pointer close to the
segment border, click and drag down. The FoV box appears.
5.5
Performing an examination 5
SOMATOM Emotion | syngo CT VC50
Print No. HC-C2-025.626.01.01.02
41

Siemens SOMATOM Emotion Specifications

General

Type	CT Scanner
Gantry aperture	70 cm
Tube voltage	80, 110, 130 kV
Maximum scan range	200 cm
Maximum Scan Field of View	50 cm
Generator Power	32 kW
Image Matrix	512 x 512
Rotation time	0.8 s, 1.0 s, 1.5 s, 2.0 s (depending on configuration)
Patient weight capacity	200 kg
Table Weight Limit	200 kg
Image Reconstruction Time	Up to 8 images/second
