Siemens SSB81U User Manual

Technical Instructions Powermite 599 MZ Series SSB Electronic Valve Actuator
Document No. 155-195P25 24 Vac 3-position Control
December 18, 2003
Specifications
Power supply
Operating voltage 24 Vac ±20%
Frequency 50/60 Hz
Power consumption 0.8 VA
Function
Running time
60 Hz 150 seconds
50 Hz 180 seconds
Nominal stroke 7/32-inch (5.5 mm)
Nominal force 45 lbs. (200N)
Agency certification
UL listed to UL873
cUL certified to Canadian Standard
C22.2 No. 24-93
Ambient conditions
Ambient temperature
Operation 34°F to 122°F (1°C to 50°C)
Transport and storage -13°F to 158°F (-25°C to 70°C)
Miscellaneous
Medium temperature 34°F to 230°F (1°C to 110°C)
Dimensions See Figure 8
Weight 9 oz. (0.25 kg)
Accessory

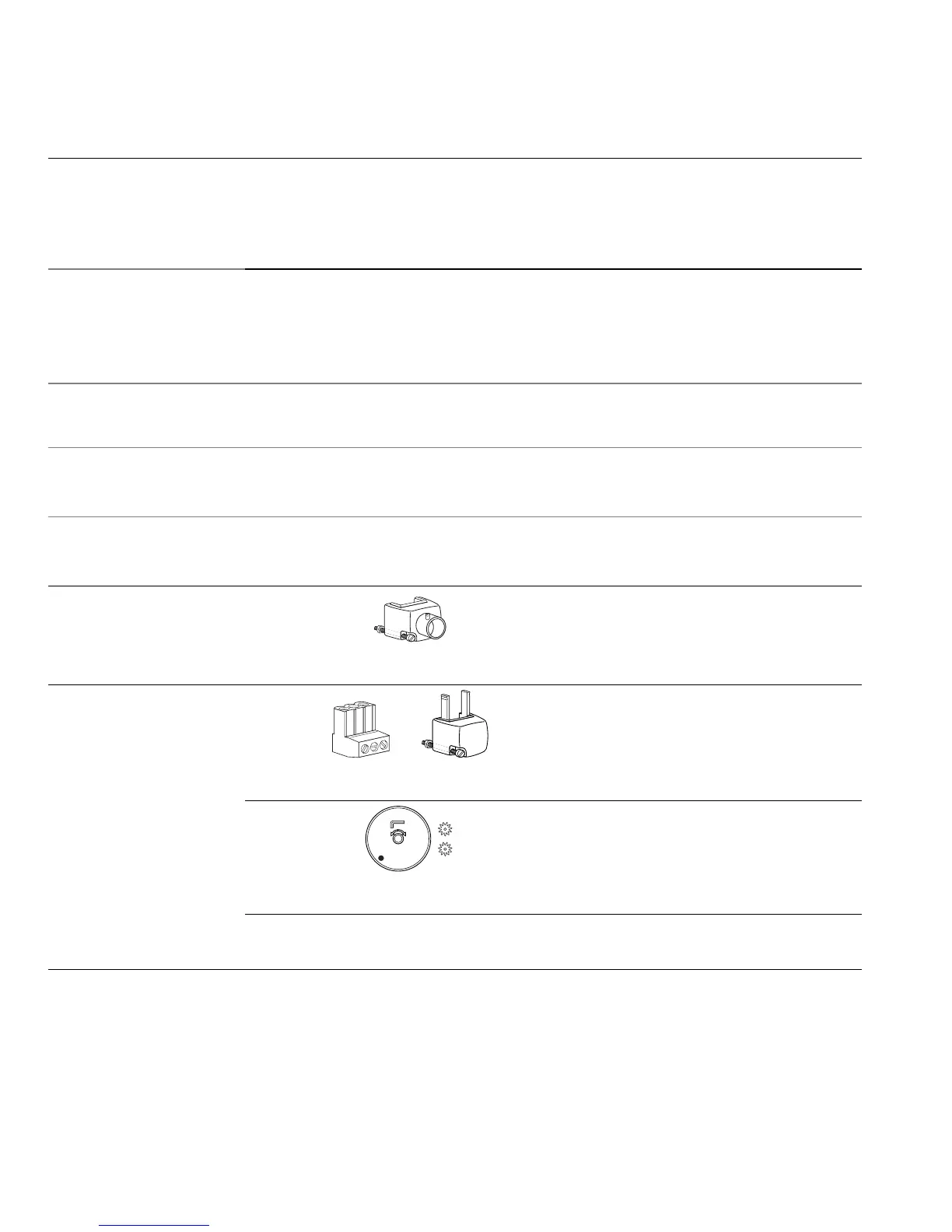

EA0643R1
Figure 1. Conduit Connector.
ASY97 Conduit connector
quantity one (1).
Service Kits
G
Y1 Y2
EA0581R1
EA0859R1
Figure 2. Terminal Plug and block cover.
ASY99 Terminal plug and terminal block
cover for SSB81U
quantity one (1).
3mm
EAO808R1
Figure 3. Visual Position Kit.
4 224 5611 8 Visual Position Kit to
replace one indicator and two gears.
(Previous version)
ASY98 Replacement screw and nut for use on the conduit connector or the terminal
connector, quantity one each.
