TC35i AT Command Set
15. Audio Commands
s
m obil e
TC35i_ATC_V02.07 Page 364 of 439 1/30/04
Confidential / Released
15. Audio Commands
The AT Commands described in this chapter are related to the TC35i's audio interface.
15.1 Audio programming model
The following figure illustrates how the signal path can be adjusted with the parameters <inCalibrate>,
<inBbcGain>, <outBbcGain>, <outCalibrate> and <sideTone>.

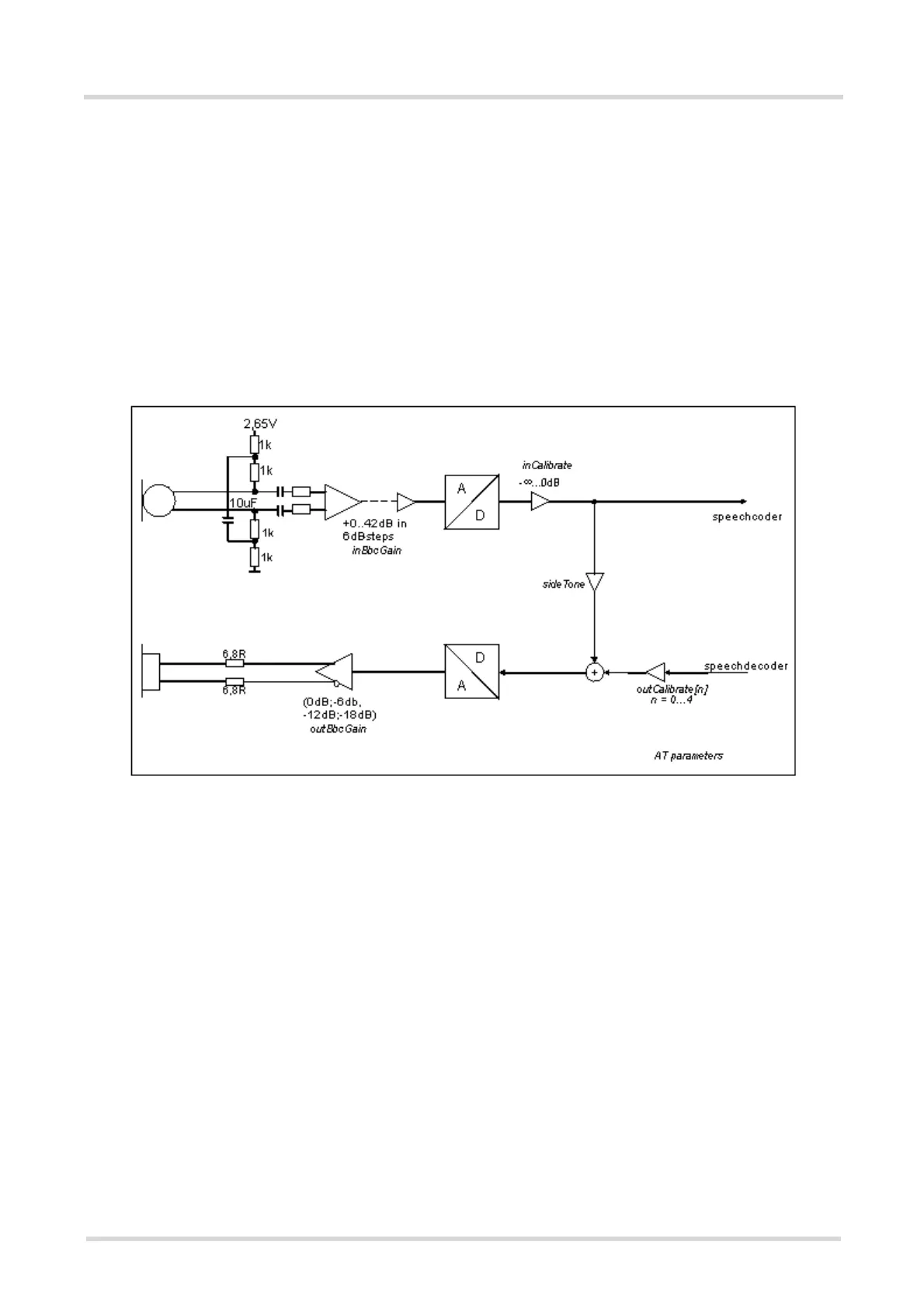

Figure 15.1: Audio programming model
