TC65 Terminal Hardware Interface Description
Confidential / Released
s
TC65 Terminal_HD_V02.000b Page 21 of 65 2007-02-19
3 Interface Description
3.1 Overview
TC65 Terminal provides the following connectors for power supply, interface and antenna:
1. 24-pole GPIO Micro Mate-N-LOK connector for GPIOs, I²C, SPI, ADC
2. 9-pole (female) SUB-D plug for RS-232 serial interface
3. SMA connector (female) for antenna
4. On/Off push button
5. 4-pole Western plug (female) for audio accessory, such as a handset
6. SIM card holder
7. 6-pole Western plug (female) for power supply, ignition, power down signal
12

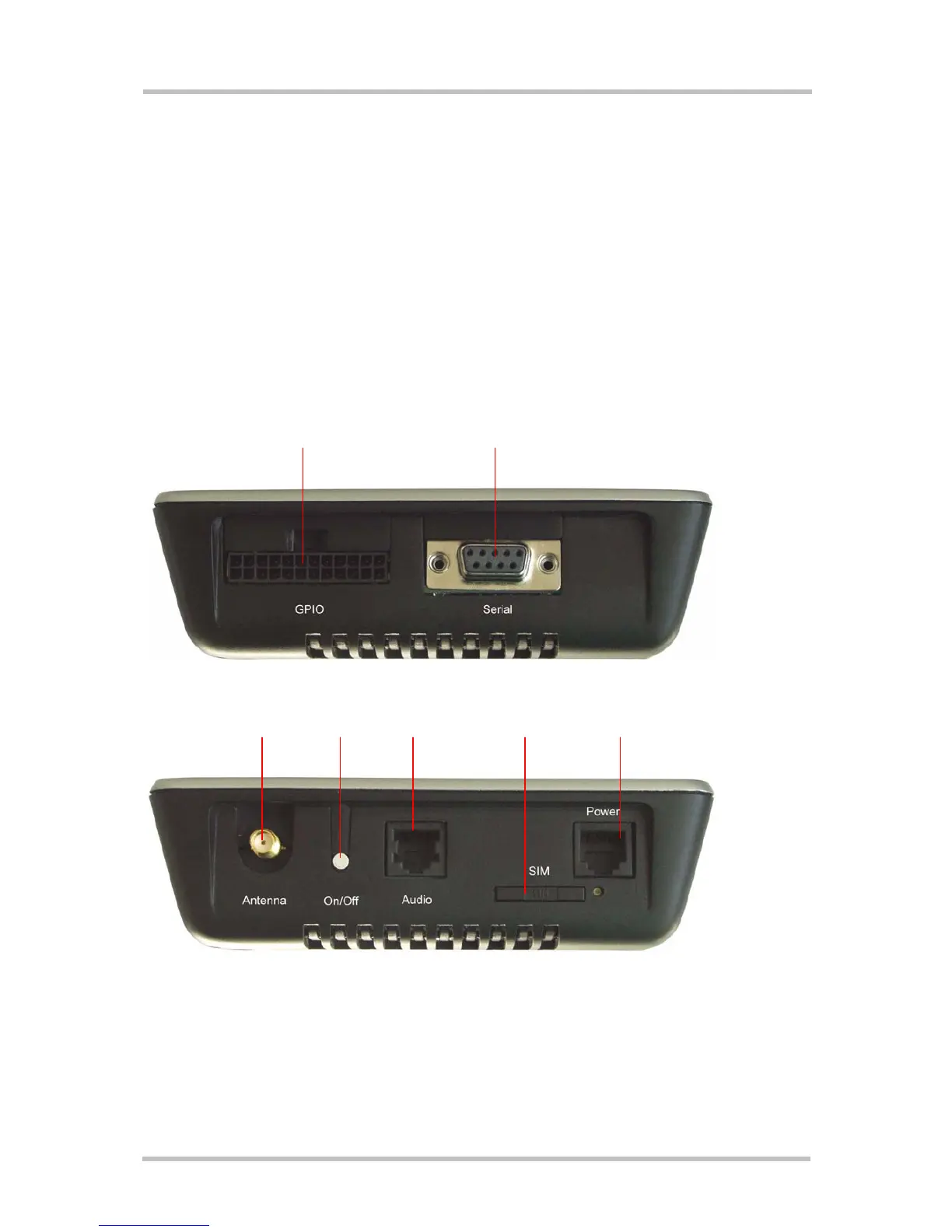

Figure 1: TC65 Terminal front view
345 6 7
Figure 2: TC65 Terminal rear view
