Siemens TC65 Terminal User Manual

TC65 Terminal Hardware Interface Description
Confidential / Released
s
TC65 Terminal_HD_V02.000b Page 61 of 65 19.02.2007
6 Full Type Approval
6.1 Siemens Reference Setup
The Siemens reference setup submitted to type approve TC65 Terminal consists of the
following components:
• TC65 Terminal with approved GSM module TC65
• Votronic Handset type
• PC as MMI
• Power Supply: Mains adapter Sphere Design Type 39020
• IO interface connector cable with pull down resistors. Please note that this cable is not
available for customer.
PC
Power supply
SIM
RS-232
TC65
Terminal
Handset
Antenna or
50 Ohm
cable to the
system
simulator
ARP
GPIO connector
cable with pull
down resistors

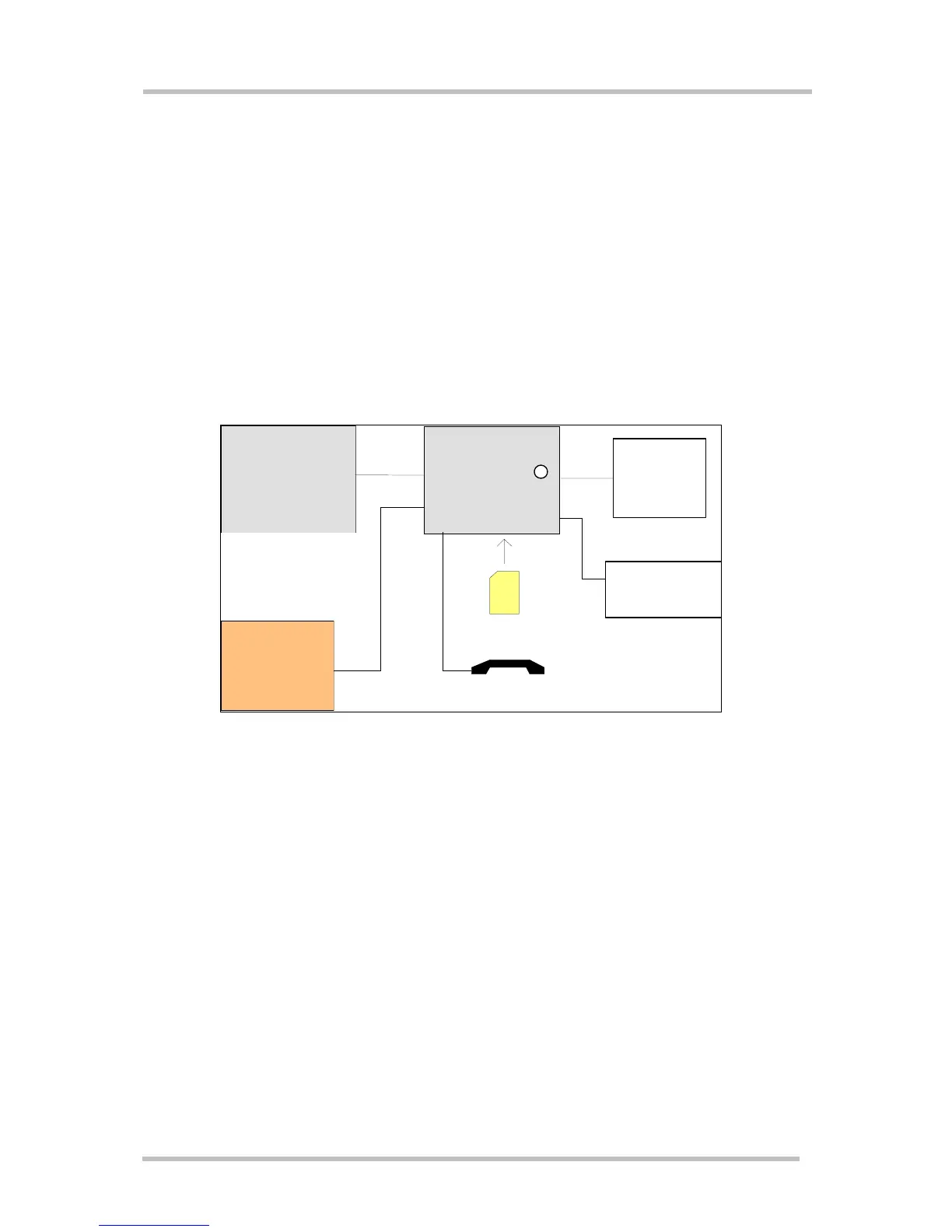

Figure 19: Reference equipment for approval
For ordering information please refer to Chapter
7.

Siemens TC65 Terminal Specifications

General

Brand	Siemens
Model	TC65 Terminal
Category	Telephone Accessories
Language	English
