Siemens TC65 Terminal User Manual

TC65 Terminal Hardware Interface Description
Confidential / Released
s
TC65 Terminal_HD_V02.000b Page 47 of 65 19.02.2007
DIM X DIM Y DIM Z Number of Positions
40.00 36.86 33.00 24
Values in mm

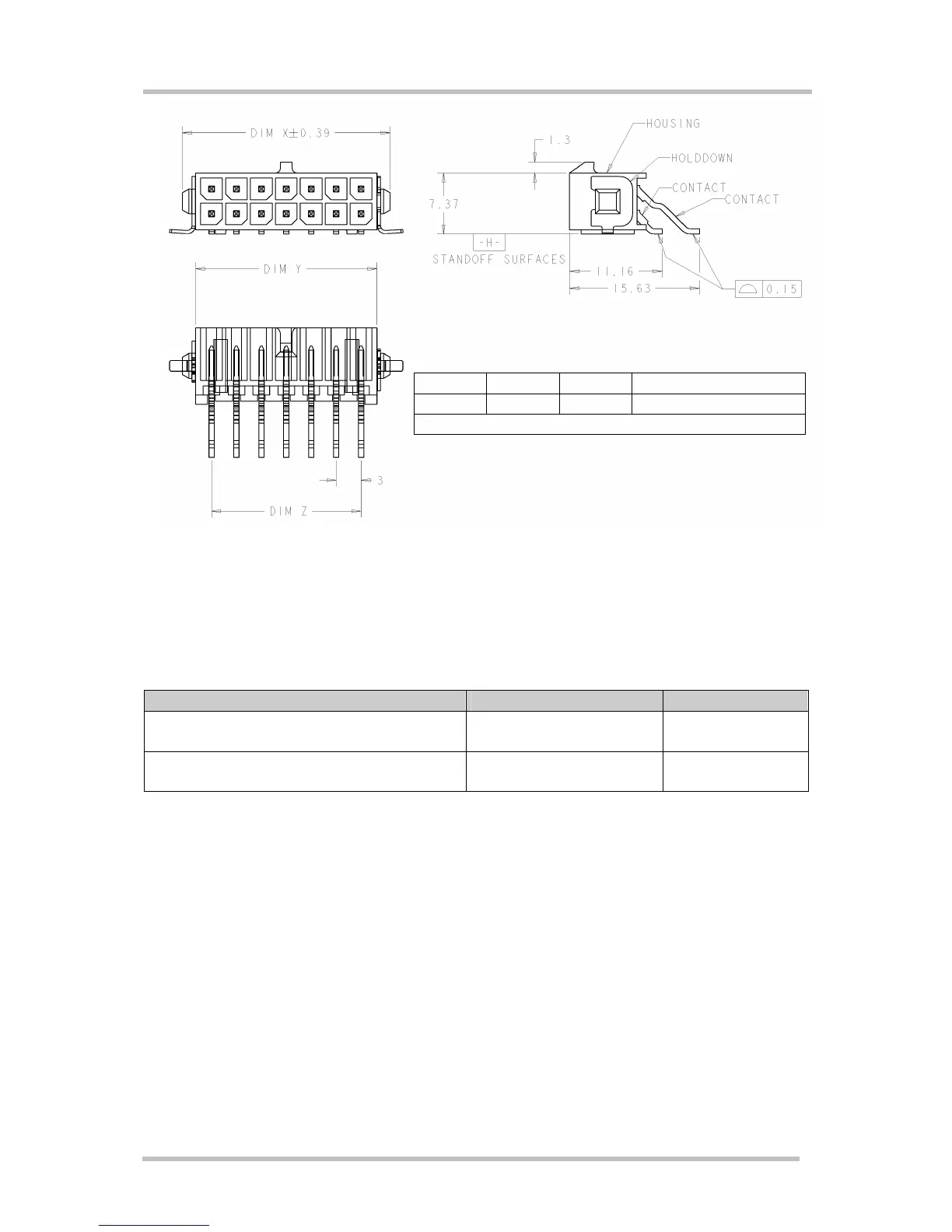

Figure 18: Mechanical dimensions of the Tyco Mate_N_LOK connector on the TC65 Terminal.
4.1.1 Recommended Mating Connector
Table 20: Ordering information for mating connector Tyco Micro Mate-N-LOK
Item Number of positions Ordering number
Micro Mate-N-LOK 3mm 24 2-794617-4
Crimp Snap-IN Receptacle Contacts 794606-*
794607-*
