Structure and function
12
Building Technologies A6V10099835_a_en
Fire Safety & Security Products 12.2007

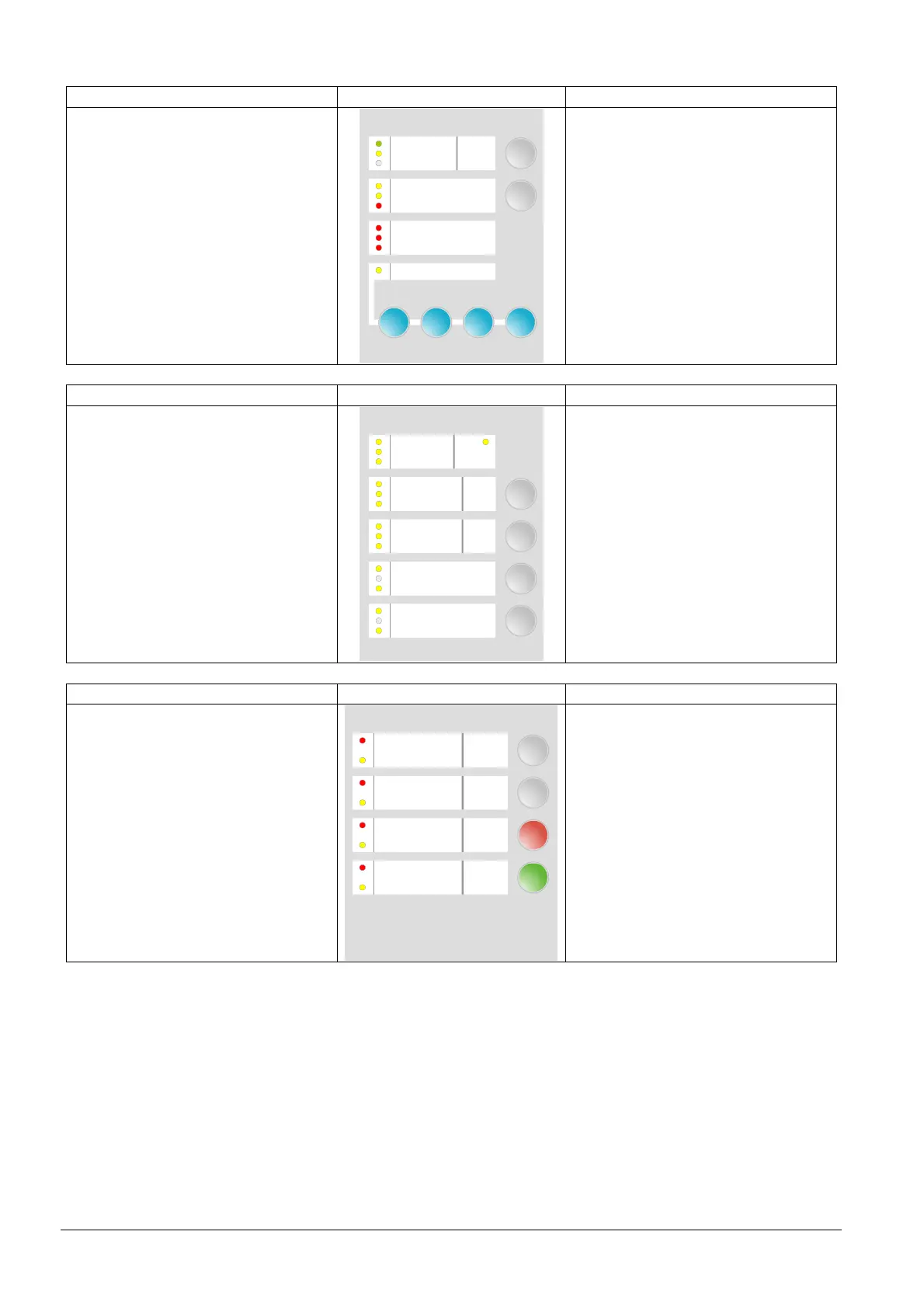

LED functions Sector A Key functions
Silence Re-sound Horn.
Block and clear activation of
extinguishing.
Show the current operating mode and
the process in the event of an
activation of extinguishing.
System ON
Mode
select
Silence
Re-sound
Horn
Operating access
Autom. & Man. blocked
Manual only
Fire alarm
Mech. blocked
Activated
Released
42 3
Remote transmission
1
Enter access code for system operating
(Access level 2).
LED functions Sector B Key functions
Lamp test, horn test and illuminated
warning panel test.
System test (only for maintenance).
Disable and enable horn/actuator and
fire controls.
Show the system parts of the
extinguishing control unit that are
currently disabled or on fault.
Power fault
Peripheral fault
Lamp
test
Earth fault
Loss of agent
System fault
Disabled
Fault
Detector test
Emergency
hold / abort
Horn / actuator
Fire control
Disable /
Enable
System test
System
test
RT - fault
RT - alarm
Disable /
Enable
Disabled / fault
Disabled / fault
Disable and enable remote
transmission for alarm and fault.
LED functions Sector C Key functions
Disable and enable detector zones and
manual release.
Enable and cancel test mode of
detector zones and manual release.
Silence buzzer upon alarm and fault.
Indicate the operating states of the
detector zones and manual release.
Manual
release
Reset
Silence
buzzer
ZONES
det. test /
enable
ZONES
disable /
enable
Detector zone 1
Detector zone 2
Detector zone 3
Reset unit upon alarm and possibly
also upon fault.
